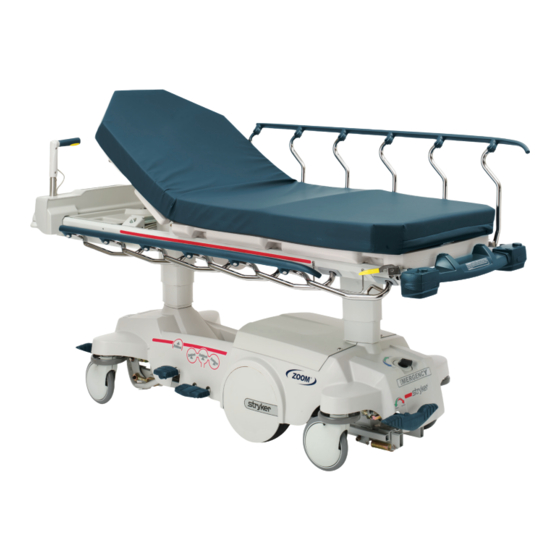

Stryker M Series Maintenance Manual
  1. Manuals
  2. Brands
  3. Stryker Manuals
  4. Medical Equipment
  5. M Series
  6. Maintenance manual

Stryker M Series Maintenance Manual

Stretcher
Hide thumbs Also See for M Series:
Table of Contents

Advertisement

Quick Links

Ma i n t e n a n c e
Me d i c a l
Ma n u a l
M- S e r i e sS t r e t c h e r
Mo d e l S M1 0 4
I mp o r t a n t
I n f o r ma t i o n
F i l e i n y o u r
F o r p a r t so r t e c h n i c a l
m a i n t e n a n c e
a s s i s t a n c ec a l l
r e c o r d s
8 0 03 2 70 7 7 0( o p t i o n2 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stryker M Series

Summary of Contents for Stryker M Series

  • Page 1 Ma i n t e n a n c e Me d i c a l Ma n u a l M- S e r i e sS t r e t c h e r Mo d e l S M1 0 4 I mp o r t a n t I n f o r ma t i o n F i l e i n y o u r...

  • Page 2: Table Of Contents

    Table of Contents Introduction Specifications ................Warning / Caution / Note Definition .
  • Page 3 Table of Contents Assembly Drawings and Parts Lists Fifth Wheel Base Assembly ............. . Fifth Wheel Assembly .
  • Page 4 Table of Contents Assembly Drawings and Parts Lists (Continued) Standard Fowler/Stationary Foot Assembly ..........82−83 Standard Fowler/Knee Gatch Assembly .

  • Page 5: Introduction

    0% − 90% Relative Humidity * Scale does not meet accuracy claims at Trend angles outside the specified range. Stryker reserves the right to change specifications without notice. WARNING / CAUTION / NOTE DEFINITION The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.

  • Page 6: Summary Of Safety Precautions

    Summary of Safety Precautions Before operating this stretcher, it is important to read and understand all information in this manual. Carefully read and strictly follow the warnings and cautions listed on this page. WARNING Always apply the caster brakes when a patient is getting on or off the stretcher. Push on the stretcher to en- sure the brakes are securely locked.

  • Page 7: Symbols

    Symbols OPTIONAL SCALE SYSTEM Warning, Refer to Service/Maintenance Manual Internally Powered Mode of Operation: Continuous IPX5 Electromagnetic Interference − product conforms to IEC 60601−1−2:1993 − Class B Type: 4 x AA Battery (4 x 1.5VDC) Voltage: 6.0VDC Medical Equipment Classified by Underwriters Laboratories Inc. with Respect to Electric Shock, Fire, Mechanical and Other Specified Hazards Only in Accordance with UL 2601−1 and CAN/CSA C22.2 No.

  • Page 8: Preventative Maintenance

    Preventative maintenance should be performed at a minimum of annually. A preventative maintenance pro- gram should be established for all Stryker Medical equipment. Preventative maintenance may need to be performed more frequently based on the usage level of the product.

  • Page 9: Cleaning

    Position the Fowler at 45_, place the unit in full reverse Trendelenburg (foot end down), raise the siderails, and place the I.V. poles and push handles in the up position. Stryker Medical recommends the standard hospital surgical cart washer for power washing Model 1005 stretchers.
  • Page 10 If these types of products are used to clean Stryker patient handling equipment, measures must be taken to insure the stretchers are rinsed with clean water and thoroughly dried following cleaning. Failure to properly rinse and dry the stretchers will leave a cor- rosive residue on the surface of the stretcher, possibly causing premature corrosion of critical components.

  • Page 11: Service Information

    Service Information CASTER COVER INSTALLATION AND REMOVAL Double Prongs Looking through the larger of the two side cut−outs, align the cover with the axle nut or bolt head, as shown. Single Prong Push down on the opposite side of the cover until the single prong engages the caster horn.

  • Page 12: Brake Rod Removal

    Service Information BRAKE ROD REMOVAL Required Tools: Hammer 7/32” Punch String or Bungee Cords 1. Pump the litter up to full height. 2. Lift the base hood and support it from the litter using string or bungee cords. 3. Remove the hex head cap screws connecting the brake rod supports to the base frame. 4.

  • Page 13: Release Pedal Adjustment

    Service Information RELEASE PEDAL ADJUSTMENT 1. Manually disengage the release pedal swivel (item H on page 45) from the release pedal assembly. 2. To increase the release rod engagement with the release valve, turn the release pedal swivel clockwise on the threaded release rod. 3.

  • Page 14: Brake Ring Removal

    Service Information BRAKE RING REMOVAL Required Tools: 9/16” Socket w/Extension 3/8” Drive Ratchet Needle−Nose Pliers String or Bungee Cord 1. Pump the litter up to full height. 2. Lift the base hood and support it from the litter using string or bungee cords. 3.

  • Page 15: Litter Top Removal

    Service Information LITTER TOP REMOVAL Required Tools: 1/2” Socket w/Extension 3/8” Drive Ratchet Standard Screwdriver 1. Using the foot pedal, pump up the litter top to full height. 2. Remove the stretcher mattress 3. Using a 1/2” socket, and a 3/8” drive ratchet, remove the truss head screws holding the jack support tubes to the jack shafts.

  • Page 16: Head End Hydraulic Jack Removal

    Service Information HEAD END HYDRAULIC JACK REMOVAL Required Tools: 1/2” Socket w/Extension 3/8” Drive Ratchet 1. Remove the litter top from the stretcher (see page 14). 2. Using a 1/2” socket with extension and a 3/8” drive ratchet, remove the two hex head screws holding the jack base to the stretcher base frame.

  • Page 17: Gatch Release Handle Replacement

    Service Information GATCH RELEASE HANDLE REPLACEMENT Required Tools: Needle Nose Pliers 1. Twist off the Gatch release handle knob. 2. Using needle nose pliers, remove the cotter pin holding the Gatch release rod to the Gatch release link. 3. Pull out the handle release rod. 4.
  • Page 18 Service Information SIDERAIL ASSEMBLY REMOVAL AND REPLACEMENT (CONTINUED) 11. Slide the side of the stretcher with the remaining siderail next to a wall to brace it or support it with bungee cords before starting to install the new siderail. 12. Lift the new siderail into position. 13.

  • Page 19: Pneumatic Cylinder Replacement

    Service Information PNEUMATIC CYLINDER REPLACEMENT Required Tools: 3/8” Drive Ratchet 3/8” Socket Needle Nose Pliers 1. Using a 3/8 drive ratchet and 3/8” socket, remove the bolt connecting the pneumatic cylinder to the Fowler weldment. Save the bushing and spacers to use with the new cylinder. 2.

  • Page 20: Iv Pole Replacement

    Service Information IV POLE REPLACEMENT Required Tools: T25 Torx Utility Knife 1/2” Socket 3/8” Drive Ratchet 1. Using a utility knife, pry off the three hole plugs in the top of the litter corner cover. 2. Using a T25 Torx, remove the 3 screws holding the top and bottom covers together and pull apart the cover.

  • Page 21: Static Discharge Precautions

    2 and 3 of the following procedure. Do not place unprotected circuit boards on the floor. All circuit boards returned to Stryker should be shipped in the static shielding bags the new boards were shipped in. Static Protection Procedure 1.

  • Page 22: Scale Display Box Replacement

    Service Information − Optional Scale System SCALE DISPLAY BOX REPLACEMENT Required Tools: Wire Cutters 1/2” Open End Wrench Rivet Gun T27 Torx 1. Pump the litter up to full height. 2. Using a T27 Torx, remove the screws holding the litter foot end cover and the foot end corner covers. 3.

  • Page 23: Scale Display Cover Replacement

    Service Information − Optional Scale System SCALE DISPLAY COVER REPLACEMENT Required Tools: Utility Knife Phillips Screwdriver 1. Using a utility knife, pry up a corner of the display label and remove the label from the upper display cover. 2. Using a Phillips screwdriver, remove the four screws holding the upper display cover to the display box and lift off the cover and lens.

  • Page 24: Scale Display Battery Holder Replacement

    Service Information − Optional Scale System SCALE DISPLAY BATTERY HOLDER REPLACEMENT Required Tools: Utility Knife Phillips Screwdriver Static Protection Equipment Heyco Pliers 1. Properly ground yourself (see page 20). 2. Using a utility knife, pry up a corner of the display label and remove the label from the upper display cover. 3.

  • Page 25: Load Cell Replacement

    Service Information − Optional Scale System LOAD CELL REPLACEMENT Required Tools: Wire Cutters 7/16” Wrench 3/8” Drive Ratchet 7/16” Socket 9/16” Socket 7/32” Allen Wrench T27 Torx Wrench Torque Wrench 1. Properly ground yourself (see page 20). 2. Pump the litter up to full height. Raise the Fowler to full up. 3.

  • Page 26: Scale System Diagnostics

    Service Information − Optional Scale System SCALE SYSTEM DIAGNOSTICS 1. To enter diagnostic mode, hold all three buttons on the display box for at least 6 seconds until the display reads diag. Press the zero button to toggle down between the diagnostic functions listed below and press the lb / kg button to toggle up between functions.

  • Page 27: Scale System Batteries

    Service Information − Optional Scale System SCALE SYSTEM DIAGNOSTICS (CONTINUED) Scale Calibration: Calibrate the scale system with a known weight of approximately 200 pounds. 1. Remove all items from the stretcher except the mattress and other items used during the patient’s stay. 2.

  • Page 28: Quick Reference Replacement Parts List

    The parts and accessories listed on this page are all currently available for purchase. Some of the parts identi- fied on the assembly drawings pages in this manual may not be individually available for purchase. Please call Stryker Customer Service at 1−800−327−0770 for availability and pricing. PART NAME...
  • Page 29 Quick Reference Replacement Parts List PART NAME PART NUMBER Restraint Strap Package ........... . . 0785−045−010 Restraint Strap, Ankle .

  • Page 30: Assembly Drawings And Parts Lists Fifth Wheel Base Assembly

    0853−006−110 Retractable 5th Wheel Base Assembly Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0023−305−000 Hex Hd. Cap Screw 0753−006−148 Cam Bearing (page Fifth Wheel Assembly Return to Table of Contents...
  • Page 31 0853−006−130 Fifth Wheel Assembly Return to Table of Contents...
  • Page 32 0853−006−130 Fifth Wheel Assembly Item Part No. Part Name Qty. 0003−083−000 Hex Hd. Cap Screw 0011−360−000 Washer 0016−035−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd. Screw 0025−050−000 Rivet 0029−007−000 Dual Lock 0029−009−000 Dual Lock 0753−006−074 Torsion Spring 0753−006−075 Torsion Spring 0753−006−097 Drive Shaft Bearing 0753−006−106...
  • Page 33 Standard Brake Assembly (Fifth Wheel Base) Assembly part number 0853−003−205 (reference only) Return to Table of Contents...
  • Page 34 Standard Brake Assembly (Fifth Wheel Base) Typical Both Ends Typical Assembly Both Ends Item Part No. Part Name Qty. 0003−364−000 Hex Screw 0005−044−000 Step Bolt 0011−262−000 Washer 0013−018−000 Tooth Lock Washer 0016−035−000 Nylock Hex Nut 0016−049−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd.

  • Page 35: Brake Rod Assembly

    Brake Rod Assembly Assembly part number 0853−003−201 (reference only) Item Part No. Part Name Qty. 0026−014−000 Slotted Spring Pin 0026−273−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0753−003−015 Brake Rod Nyliner 0853−003−004 Brake Rod Support (page Drive Link Assembly 0853−003−014 Brake Rod (page Drive Link Assembly 1210−201−335...
  • Page 36 0853−003−010 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−098 Flat Hd. Semi−Tubular Rivet 0753−203−102 Brake Cam 0853−003−011 Brake Rod Drive Link 0853−003−061 Brake Cam Drive Link Return to Table of Contents...
  • Page 37 0853−006−135 Drive Link Assembly Item Part No. Part Name Qty. 0753−003−098 Semi−Tubular Rivet 0853−003−011 Brake Rod Drive Link 0853−006−022 5th Wheel Cam Drive Link 0853−006−047 5th Wheel Cam Drive Link Return to Table of Contents...

  • Page 38: Caster Assembly

    0753−010−220 8” Caster Assembly Item Part No. Part Name Qty. 0003−099−000 Hex Hd. Cap Screw 0016−060−000 Centerlock Nut 0753−003−215 Wheel 0753−010−021 Caster Horn w/Bearing Return to Table of Contents...

  • Page 39: Side Control Brake Assembly

    Side Control Brake Assembly Assembly part number 0853−003−220 (reference only) Return to Table of Contents...
  • Page 40 Side Control Brake Assembly See Detail A Detail A Typical Both Ends Return to Table of Contents...
  • Page 41 Side Control Brake Assembly Typical Assembly Both Ends Item Part No. Part Name Qty. 0003−364−000 Slotted Screw 0005−044−000 Step Bolt 0011−262−000 Washer 0013−018−000 Tooth Lock Washer 0016−035−000 Nylock Hex Nut 0016−049−000 Nylock Hex Nut 0023−233−000 Hex Washer Head Screw 0026−340−000 Clevis Pin 0027−012−000 Hitch Pin...

  • Page 42: Brake Rod/Side Control Assembly

    Brake Rod / Side Control Assembly Assembly part number 0853−003−225 (reference only) Item Part No. Part Name Qty. 0026−014−000 Slotted Spring Pin 0026−273−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0753−003−015 Brake Rod Nyliner 0753−003−112 Side Control Link 0753−003−004 Brake Rod Support (page Drive Link Assembly 0853−003−014...

  • Page 43: Side Control Brake Sub−Assembly

    Side Control Brake Sub−Assembly Assembly part number 0853−003−210 (reference only) Item Part No. Part Name Qty. 0026−014−000 Slotted Spring Pin 0026−340−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0753−003−112 Side Control Link 0753−003−117 Rod End Link 0853−003−214 Side Control Shaft Support 0853−003−319 Side Control Brake Rod 1210−201−335...

  • Page 44: Standard Brake Assembly, Colored Components

    Standard Brake Assembly, Colored Components Assembly Part Number 0853−003−600 (reference only) Part Number Part Description Quantity 0753−003−006 Brake Ring Weldment (Gray) 0753−010−220 8” Caster Assembly (Gray) 1040−005−154 Butterfly “V” Pedal (Denim Blue) Side Control Brake Assembly, Colored Components Assembly Part Number 0853−003−610 (reference only) Part Number Part Description Quantity...

  • Page 45: Dual Side Hydraulics Assembly

    Dual Sided Hydraulics Assembly Assembly part number 0853−005−500 (reference only) Return to Table of Contents...
  • Page 46 Dual Sided Hydraulics Assembly Detail A See Detail A Return to Table of Contents...
  • Page 47 Dual Sided Hydraulics Assembly Insert Head End Release Rod into Release Valve Assembly as shown. Insert Foot End Release Rod into Release Valve Assembly as shown. Item Part No. Part Name Qty. 0011−023−000 Washer 0014−071−000 Washer 0023−288−000 Hex Washer Hd. Screw 0027−020−000 Rue Pin Cotter 0027−031−000...

  • Page 48: Standard Hydraulics Assembly, Colored Components

    Standard Hydraulics Assembly, Colored Components Assembly Part Number 0853−005−600 (reference only) Part Number Part Description Quantity 0785−005−126 Pump Pedal (Denim Blue) 0785−005−127 Short Uni−Pedal (Denim Blue) 1040−005−154 Butterfly “V” Pedal (Denim Blue) End Control Hydraulics Assembly, Colored Components Assembly Part Number 0853−005−610 (reference only) Part Number Part Description Quantity...

  • Page 49: Lowering Pedal Assembly

    Lowering Pedal Assembly Assembly part number 0853−004−201 (reference only) Item Part No. Part Name Qty. 0025−079−000 Rivet 0753−004−029 Release Pedal Standoff 0853−004−004 Release Pedal Weldment 0853−004−320 Release Pedal Support Return to Table of Contents...

  • Page 50: Head End Pump Pedal Assembly

    0853−005−285 Head End Pump Pedal Assembly Item Part No. Part Name Qty. 0026−343−000 Groove Pin 0715−001−140 Vinyl Tube 0853−005−180 Head End Pump Pedal Weldment Return to Table of Contents...

  • Page 51: 3−Sided Hydraulics Assembly

    3−Sided Hydraulics Assembly Asssembly part number 0853−005−510 (reference only) Insert spring hook through hole in pump pedal spring bracket. Return to Table of Contents...
  • Page 52 3−Sided Hydraulics Assembly Release wire hooks to be assembled between head end and foot end release wire adjustment clevis joint and release pedal brackets. Refer to Detail A . Release Pedal Brackets Foot End Release Wires Detail A Clevis Joints Item Part No.

  • Page 53: Foot End Release Pedal Assembly

    Foot End Release Pedal Assembly Assembly part number 0853−004−223 (reference only) Item Part No. Part Name Qty. 0026−132−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0027−022−000 Rue Ring Cotter 0052−822−000 Snap−In Nyliner 0753−004−028 Release Pedal Return Spring, F/E 0753−004−422 Release Pedal Mtg. Bracket 0853−004−138 Foot Release Rod 0853−004−139...

  • Page 54: Foot End Pump Pedal Assembly

    0853−005−273 Foot End Pump Pedal Assembly Item Part No. Part Name Qty. 0026−343−000 Groove Pin 0715−001−140 Clear Vinyl Tubing 0853−005−171 F/E Pump Pedal Weldment Return to Table of Contents...

  • Page 55: Jack Base Assembly

    Jack Base Assembly, Constant Descent Jack Assembly part number 0853−002−025 Item Part No. Part Name Qty. 0390−002−134 Conical Compression Spring 0046−004−000 O−Ring 0048−021−000 CV Plug 0715−001−341 Poppet 0753−002−003 Pump Ram Assembly 0753−002−058 Adjustable P.C. Valve Cartridge 0753−002−010 Jack Base 0753−002−019 Valve Filter 0753−002−065 Release Valve Assembly...

  • Page 56: Constant Descent Jacks

    Constant Descent Jacks Assembly Part Number 0853−002−025 (reference only) Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0753−002−101 Constant Descent Jack Ass’y 0853−010−007 Reservoir Clamp Return to Table of Contents...

  • Page 57: Constant Descent Jack Assembly

    Constant Descent Jack Assembly Assembly Part Number 0753−002−101 Item Part No. Part Name Qty. 0045−273−000 O−Ring 0045−274−000 O−Ring 0048−190−000 U−Cup Seal (page Jack Base Assembly, 0753−002−017 Jack Cap 0753−002−104 Actuator Rod Assembly 0753−002−106 Actuator Cylinder Assembly 0753−102−129 Reservoir Tube 0753−202−100 Jack Assembly Label Return to Table of Contents...
  • Page 58 Base Labeling Assembly − Standard Brakes & Hydraulics Assembly part number 1005−224−100 0785−024−002 (reference only) No O2 Label 1005−001−010 Specification Label 0753−010−301 Item Part No. Part Name Qty. 0785−001−815 Bellows 0853−001−135 Standard Hood Return to Table of Contents...
  • Page 59 1005−224−109 GREEN 0853−024−110 0853−024−210 0785−024−600 0785−024−700 0785−024−510 1005−224−110 Color Item R Item H Item L Item T Set P/N Trend, Left Stryker Logo Litter Stripe 700 lb. Capacity YELLOW 0853−024−951 0853−024−801 0785−022−101 0785−023−050 1005−224−101 GRAY 0853−024−952 0853−024−802 0785−022−102 0785−023−050 1005−224−102 LIGHT BLUE 0853−024−953...
  • Page 60 Base Labeling Assembly − 4−Side Brakes/Std. Hydraulics Assembly part number 1005−224−200 0785−024−002 (reference only) No O2 Label 1005−001−010 Specification Label 0753−010−301 Item Part No. Part Name Qty. 0785−001−815 Bellows 0853−001−134 Hood, 4−Sided Brakes Return to Table of Contents...
  • Page 61 1005−224−209 GREEN 0853−024−310 0853−024−410 0785−024−600 0785−024−700 0785−024−510 1005−224−210 Color Item R Item H Item L Item T Set P/N Trend, Left Stryker Logo Litter Stripe 700 lb. Capacity YELLOW 0853−024−951 0853−024−801 0785−022−101 0785−023−050 1005−224−201 GRAY 0853−024−952 0853−024−802 0785−022−102 0785−023−050 1005−224−202 LIGHT BLUE 0853−024−953...
  • Page 62 Base Labeling Assembly − Std. Brakes/3−Side Hydraulics Assembly part number 1005−224−300 0785−024−002 (reference only) No O2 Label 1005−001−010 Specification Label 0753−010−301 Item Part No. Part Name Qty. 0785−001−815 Bellows 0853−001−137 Hood, 3−Side Hydraulics Return to Table of Contents...
  • Page 63 0853−024−210 0785−024−600 0785−024−700 0785−024−510 1005−224−310 Color Item N Item R Item H Item L Item T Set P/N Lowering, F/E. Trend, Left Stryker Logo Litter Stripe 700 lb. Capacity YELLOW 0853−024−901 0853−024−951 0853−024−801 0785−022−101 0785−023−050 1005−224−301 GRAY 0853−024−902 0853−024−952 0853−024−802 0785−022−102...
  • Page 64 Base Labeling Assembly − 4−Side Brakes/3−Side Hydraulics Assembly part number 1005−224−400 0785−024−002 (reference only) No O2 Label 1005−001−010 Specification Label 0753−010−301 Item Part No. Part Name Qty. 0785−001−815 Bellows 0853−001−136 Hood, 4−Side/3−Side Return to Table of Contents...
  • Page 65 0853−024−410 0785−024−600 0785−024−700 0785−024−510 1005−224−410 Color Item N Item R Item H Item L Item T Set P/N Lowering, F/E. Trend, Left Stryker Logo Litter Stripe 700 lb. Capacity YELLOW 0853−024−901 0853−024−951 0853−024−801 0785−022−101 0785−023−050 1005−224−401 GRAY 0853−024−902 0853−024−952 0853−024−802 0785−022−102...

  • Page 66: Base Labeling Assembly, Department Labels

    0785−023−028 Radiology 0785−023−029 Cath. Lab 0785−023−030 Ambulatory Surgery 0785−023−031 Same Day Surgery 0785−023−032 Out Patient Surgery 0785−023−033 G.I. Lab 0785−023−034 Ultrasound 0785−023−035 Stryker Demo 0785−023−036 NOTE All base hood department labels are quantity of two. Return to Table of Contents...
  • Page 67 26” Litter Frame Assembly Assembly part number 0785−010−601 (reference only) 0785−010−647 (non−scale) 1070−017−600 (scale) 0785−010−008 (non−scale) 0785−010−615 (non−Zoom) 1040−007−600 (Zoom) 0921−001−252 Serial Number Label 0785−010−647 (non−scale) 1070−017−650 (scale) Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0785−008−610 Frame Tie Weldment 0785−010−006 Trend Block Slide...
  • Page 68 30” Litter Frame Assembly Assembly part number 0785−010−301 (reference only) 0785−010−347 (non−scale) 0785−010−315 (non−Zoom) 1070−017−300 (scale) 1040−007−300 (Zoom) 0785−010−008 (non−scale) 0921−001−252 Serial Number Label 0785−010−347 (non−scale) 1070−017−350 (scale) Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0785−008−610 Frame Tie Weldment 0785−010−006 Trend Block Slide...

  • Page 69: Siderail Assembly

    Siderail Assembly, Right Assembly part number 0785−011−040 (reference only) Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw 0025−079−000 Rivet 0025−182−000 Rivet 0025−183−000 Tubular Component 0785−011−012 Right Tube Weldment (page Right Latch Assembly 0785−011−037 RIght Top Rail 0785−011−038 Spindle Plug (page Right Spindle...
  • Page 70 Siderail Assembly, Left Assembly part number 0785−011−050 (reference only) Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw 0025−079−000 Rivet 0025−182−000 Rivet 0025−183−000 Tubular Component 0785−011−011 Left Tube Weldment (page Left Latch Assembly 0785−011−036 Left Top Rail 0785−011−038 Spindle Plug 0785−011−046 Spindle Bearing...
  • Page 71 0785−011−020 Siderail Latch Assembly, Right Item Part No. Part Name Qty. 0025−079−000 Rivet 0026−365−000 Slotted Spring Pin 0038−526−000 Compression Spring 0785−011−054 Plunger 0785−011−056 Right Latch Handle 0785−011−128 Right Latch Mounting Block 0785−011−131 Latch Plate Return to Table of Contents...
  • Page 72 0785−011−021 Siderail Latch Assembly, Left Item Part No. Part Name Qty. 0025−079−000 Rivet 0026−365−000 Slotted Spring Pin 0038−526−000 Compression Spring 0785−011−054 Plunger 0785−011−057 Left Latch Handle 0785−011−123 Left Latch Mounting Block 0785−011−131 Latch Plate Return to Table of Contents...
  • Page 73 0785−011−041 Siderail Spindle Assembly, Right Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−011−013 Right Spindle Spacer 0785−011−032 Right Spindle 0785−011−047 Right Siderail Spring 0785−011−197 Siderail Pivot Block Return to Table of Contents...
  • Page 74 0785−011−051 Siderail Spindle Assembly, Left Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−011−010 Left Spindle Spacer 0785−011−033 Left Spindle 0785−011−048 Left Siderail Spring 0785−011−197 Siderail Pivot Block Return to Table of Contents...
  • Page 75 0785−011−042 Siderail Latch Spindle Assembly, Right Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−011−013 Right Spindle Spacer 0785−011−016 Rubber Stop 0785−011−043 Right Latch Spindle 0785−011−047 Right Siderail Spring 0785−011−197 Spindle Pivot Block Return to Table of Contents...
  • Page 76 0785−011−052 Siderail Latch Spindle Assembly, Left Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−011−010 Left Spindle Spacer 0785−011−016 Rubber Stop 0785−011−048 Left Siderail Spring 0785−011−053 Left Latch Spindle 0785−011−197 Spindle Pivot Block Return to Table of Contents...
  • Page 77 Dual Siderail Latch Assembly, Right Assembly part number 0785−011−140 (reference only) 0785−011−020 0007−074−000 Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw (page Dual Latch, Head End, Right (page Dual Latch, Foot End, Right 0785−011−110 Dual Latch Cable Return to Table of Contents...
  • Page 78 Dual Siderail Latch Assembly, Left Assembly part number 0785−011−150 (reference only) 0785−011−021 0007−074−000 Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw (page Dual Latch, Head End, Left (page Dual Latch, Foot End, Left 0785−011−110 Dual Latch Cable Return to Table of Contents...
  • Page 79 0785−011−070 Latch Assembly, Head End, Right Item Part No. Part Name Qty. 0011−063−000 Washer 0025−079−000 Rivet 0785−011−074 Dual Latch Handle, Right 0785−011−075 Mounting Bracket, Right 0785−011−077 Dual Latch Cable Arm 0785−011−093 Extension Spring Return to Table of Contents...
  • Page 80 0785−011−100 Latch Assembly, Foot End, Right Item Part No. Part Name Qty. 0004−136−000 Button Hd. Cap Screw 0014−122−000 Washer 0785−011−086 Cable Plate, Right 0785−011−090 Cam Pivot 0785−011−095 Dual Latch Cam 0785−011−096 Dual Latch Spacer Return to Table of Contents...
  • Page 81 0785−011−130 Latch Assembly, Head End, Left Item Part No. Part Name Qty. 0011−063−000 Washer 0025−079−000 Rivet 0785−011−077 Dual Latch Cable Arm 0785−011−093 Extension Spring 0785−011−106 Dual Latch Handle, Left 0785−011−120 Mounting Bracket, Left Return to Table of Contents...
  • Page 82 0785−011−135 Latch Assembly, Foot End, Left Item Part No. Part Name Qty. 0004−136−000 Button Hd. Cap Screw 0014−122−000 Washer 0785−011−090 Cam Pivot 0785−011−095 Dual Latch Cam 0785−011−096 Dual Latch Spacer 0785−011−186 Cable Plate, Right Return to Table of Contents...
  • Page 83 26” Standard Fowler/Stationary Foot Assembly Assembly part number 0785−010−606 (reference only) Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw 0025−079−000 Rivet 0785−012−107 Footsection Skin Spacer 0785−015−650 Stationary Foot Section Skin 0785−034−005 Velcro Pile Return to Table of Contents...
  • Page 84 30” Standard Fowler/Stationary Foot Assembly Assembly part number 0785−010−306 (reference only) Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw 0025−079−000 Rivet 0785−012−107 Footsection Skin Spacer 0785−015−350 Stationary Foot Section Skin 0785−034−005 Velcro Pile Return to Table of Contents...
  • Page 85 26” Standard Fowler/Knee Gatch Assembly Assembly part number 0785−010−603 (reference only) Return to Table of Contents...
  • Page 86 26” Standard Fowler/Knee Gatch Assembly Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0026−316−000 Clevis Pin 0026−364−000 Clevis Pin 0026−334−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−013−034 Drop Seat Pivot Bracket, Rt. 0785−013−039 Drop Seat Pivot Bracket, Lt. (page Seat Section Assembly 0785−014−119...
  • Page 87 30” Standard Fowler/Knee Gatch Assembly Assembly part number 0785−010−303 (reference only) Return to Table of Contents...
  • Page 88 30” Standard Fowler/Knee Gatch Assembly Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0026−316−000 Clevis Pin 0026−364−000 Clevis Pin 0026−334−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−013−034 Drop Seat Pivot Bracket, Rt. 0785−013−039 Drop Seat Pivot Bracket, Lt. (page Seat Section Assembly 0785−014−119...
  • Page 89 26” Standard Fowler Assembly Assembly part number 0785−012−602 (reference only) See Detail A 0785−010−601 DETAIL A Return to Table of Contents...
  • Page 90 26” Standard Fowler Assembly 0785−012−667 Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw 0025−079−000 Rivet 0056−023−000 Bumper 0785−012−066 Fowler Release Handle 0785−012−076 Fowler Tube Plug 0785−012−086 Fowler Spring 0785−012−094 Spacer 0785−012−605 Fowler Frame 0785−012−666 Cable Release Pivot 0360−031−077 Gas Cylinder 0785−012−650...
  • Page 91 30” Standard Fowler Assembly Assembly part number 0785−012−302 (reference only) 0785−010−301 See Detail A DETAIL A Return to Table of Contents...
  • Page 92 30” Standard Fowler Assembly 0785−012−367 Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Machine Screw 0785−012−066 Fowler Release Handle 0785−012−080 Fowler Cable Assembly 0785−012−076 Fowler Tube Plug 0785−012−086 Fowler Spring 0785−012−094 Spacer 0785−012−305 Fowler Weldment 0785−012−350 Plastic Fowler 0785−012−366 Cable Release Pivot 0360−031−077 Gas Cylinder...
  • Page 93 26” Seat Section Assembly Assembly part number 0785−013−610 (reference only) Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−013−619 Seat Section Skin 0785−013−625 Seat Section Frame 1010−032−066 Hole Plug Return to Table of Contents...
  • Page 94 30” Seat Section Assembly Assembly part number 0785−013−310 (reference only) Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−013−319 Seat Section Skin 0785−013−325 Seat Section Frame 1010−032−066 Hole Plug Return to Table of Contents...
  • Page 95 26” Knee Gatch Assembly Assembly part number 0785−014−602 (reference only) Return to Table of Contents...
  • Page 96 26” Knee Gatch Assembly Item Part No. Part Name Qty. 0016−036−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd. Screw 0023−310−000 Pan Hd. Torx Screw 0025−079−000 Rivet 8805−932−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−014−030 Gatch Pivot (page Gatch Valve Body Assembly 0785−014−081 Snap Bushing 0785−014−107...
  • Page 97 30” Knee Gatch Assembly Assembly part number 0785−014−302 (reference only) Return to Table of Contents...
  • Page 98 30” Knee Gatch Assembly Item Part No. Part Name Qty. 0016−036−000 Nylock Hex Nut 0023−288−000 Hex Washer Hd. Screw 0023−310−000 Pan Hd. Torx Screw 0025−079−000 Rivet 8805−932−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−014−030 Gatch Pivot (page Gatch Valve Body Assembly 0785−014−081 Snap Bushing 0785−014−107...

  • Page 99: Gatch Valve Body Assembly

    Gatch Valve Body Assembly Assembly part number 0785−014−043 (reference only) Item Part No. Part Name Qty. 0046−004−000 O−Ring 0048−021−000 CV Plug 0048−175−000 45_ Straight Thread Elbow 0390−002−134 Conical Compression Spring 0715−001−321 Check Valve Screen 0715−001−341 Poppet 0753−002−047 Hex Hd. Plug 0753−002−052 Check Valve Assembly 0753−002−065...

  • Page 100: Gatch Cylinder/Hose Assembly

    0785−014−078 Gatch Cylinder/Hose Assembly Item Part No. Part Name Qty. 0785−014−071 Gatch Hose 0785−014−077 Hydraulic Cylinder Return to Table of Contents...

  • Page 101: Gatch Pump Assembly

    Gatch Pump Assembly Assembly part number 0785−014−116 (reference only) Item Part No. Part Name Qty. 8805−932−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−014−024 Gatch Pump Link 0785−014−111 Gatch Handle Return to Table of Contents...

  • Page 102: Gatch Release Handle Assembly

    Gatch Release Handle Assembly Assembly part number 0785−014−303 (reference only) − 30” Gatch Item Part No. Part Name Qty. 0027−015−000 Cotter Pin 0785−014−038 Gatch Release Link 0785−014−337 30” Gatch Release Rod Assembly part number 0785−014−603 (reference only) − 26” Gatch Item Part No.
  • Page 103 26” Thigh Section Assembly Assembly part number 0785−014−610 (reference only) Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−014−615 Thigh Section Weldment 0785−014−619 Thigh Section Skin 1010−032−066 Rectangular Hole Plug Return to Table of Contents...
  • Page 104 30” Thigh Section Assembly Assembly part number 0785−014−310 (reference only) Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−014−315 Thigh Section Weldment 0785−014−319 Thigh Section Skin 1010−032−066 Rectangular Hole Plug Return to Table of Contents...
  • Page 105 26” Calf Section Assembly Assembly part number 0785−015−601 (reference only) Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−015−605 Calf Section Weldment 0785−015−623 Calf Section Skin Return to Table of Contents...
  • Page 106 30” Calf Section Assembly Assembly part number 0785−015−301 (reference only) Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−015−305 Calf Section Weldment 0785−015−323 Calf Section Skin Return to Table of Contents...
  • Page 107 26” Drop Seat Fowler/Stationary Foot Assembly Assembly part number 0785−010−604 (reference only) Return to Table of Contents...

  • Page 108: Thigh Section Assembly

    26” Drop Seat Fowler/Stationary Foot Assembly Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0026−316−000 Clevis Pin 0026−364−000 Clevis Pin 0026−334−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−013−034 Drop Seat Pivot Bracket, Rt. 0785−013−039 Drop Seat Pivot Bracket, Lt. (page Seat Section Assembly (page...
  • Page 109 30” Drop Seat Fowler/Stationary Foot Assembly Assembly part number 0785−010−304 (reference only) Return to Table of Contents...
  • Page 110 30” Drop Seat Fowler/Stationary Foot Assembly Item Part No. Part Name Qty. 0023−288−000 Truss Hd. Machine Screw 0026−316−000 Clevis Pin 0026−364−000 Clevis Pin 0026−334−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−013−034 Drop Seat Pivot Bracket, Rt. 0785−013−039 Drop Seat Pivot Bracket, Lt. (page Seat Section Assembly (page...

  • Page 111: Drop Seat Fowler Assembly

    Drop Seat Fowler Assembly Assembly part number 0785−012−301 (reference only) See Detail A Drop Seat Option Drop Seat Fowler DETAIL A Item Part No. Part Name Qty. 0007−074−000 Truss Hd. Mach. Screw 0785−012−007 Fowler Seat Lift Roller 0785−012−101 Roller Mandrel 0056−023−000 Bumper 0025−079−000...
  • Page 112 Notes Return to Table of Contents...
  • Page 113 26” Drop Seat Fowler/Knee Gatch Assembly Assembly part number 0785−010−602 (reference only) Return to Table of Contents...
  • Page 114 26” Drop Seat Fowler/Knee Gatch Assembly Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0026−316−000 Clevis Pin 0026−364−000 Clevis Pin 0026−334−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−013−034 Drop Seat Pivot Bracket, Rt. 0785−013−039 Drop Seat Pivot Bracket, Lt. (page Seat Section Assembly (page...
  • Page 115 30” Drop Seat Fowler/Knee Gatch Assembly Assembly part number 0785−010−302 (reference only) Return to Table of Contents...
  • Page 116 30” Drop Seat Fowler/Knee Gatch Assembly Item Part No. Part Name Qty. 0023−288−000 Truss Hd. Machine Screw 0026−316−000 Clevis Pin 0026−364−000 Clevis Pin 0026−334−000 Clevis Pin 0027−020−000 Rue Ring Cotter 0785−013−034 Drop Seat Pivot Bracket, Rt. 0785−013−039 Drop Seat Pivot Bracket, Lt. (page Seat Section Assembly (page...

  • Page 117: Corner Cover Assembly

    Corner Cover Assembly − 26” Litter Assembly part number 0785−010−250 (reference only) 0785−010−652 0785−010−653 Return to Table of Contents...
  • Page 118 Corner Cover Assembly − 26” Litter Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0023−310−000 Pan Hd. Screw 0785−010−050 Cover, Hd. End, Bottom Left 0785−010−051 Cover, Hd. End, Top Left 0785−010−052 Cover, Hd. End, Top Right 0785−010−053 Cover, Hd.
  • Page 119 Corner Cover Assembly − 30” Litter Assembly part number 0785−010−150 (reference only) 0785−010−352 0785−010−353 Return to Table of Contents...
  • Page 120 Corner Cover Assembly − 30” Litter Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0023−310−000 Pan Hd. Screw 0785−010−050 Cover, Hd. End, Bottom Left 0785−010−051 Cover, Hd. End, Top Left 0785−010−052 Cover, Hd. End, Top Right 0785−010−053 Cover, Hd.

  • Page 121: Slider Board Assembly

    26” Slider Board Assembly Assembly part number 0785−045−610 (reference only) Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0785−018−001 Slider Board 0785−045−611 26” Slider Board Tray Return to Table of Contents...
  • Page 122 30” Slider Board Assembly Assembly part number 0785−045−310 (reference only) Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0785−018−001 Slider Board 0785−045−311 30” Slider Board Tray 0785−018−001 Slider Board 37.5” 25.0” Return to Table of Contents...
  • Page 123 0785−009−610 26” Monitor Tray 0785−010−601 Item Part No. Part Name Qty. 0785−045−601 26” Thermoform Tray 0029−024−000 Ratchet Fastener Return to Table of Contents...
  • Page 124 0785−009−310 30” Monitor Tray 0785−010−301 Item Part No. Part Name Qty. 0785−045−301 30” Thermoform Tray 0029−024−000 Ratchet Fastener Return to Table of Contents...

  • Page 125: Push Handle Assembly

    0785−700−015 Push Handle Assembly Assembly part number 0785−048−020 (reference only) 0785−010−051 Item Part No. Part Name Qty. 0023−288−000 Hex Washer Hd. Screw 0025−079−000 Rivet 0785−010−020 IV Pole Socket 0785−048−018 Push Handle 0785−048−025 Handle Pivot Pin Return to Table of Contents...

  • Page 126: No Push Handle Option

    No Push Handle Option Assembly part number 0785−048−030 (reference only) Item Part No. Part Name Qty. 0785−010−131 Hole Plug Return to Table of Contents...

  • Page 127: Scale Option − 26" Litter With Stationary Foot Section

    Scale Option − 26” Litter with Stationary Foot Section Assembly part number 1070−010−265 (reference only) Foot End Cable Routing Bottom View Patient, Right Side Cable Routing Bottom View Return to Table of Contents...
  • Page 128 Scale Option − 26” Litter with Stationary Foot Section Head End Cable Routing Return to Table of Contents...
  • Page 129 Scale Option − 26” Litter with Stationary Foot Section Item Part No. Part Name Qty. 0013−038−000 Ext. Tooth Lock Washer 0023−288−000 Hex Washer Hd. Screw 0025−079−000 Rivet 0025−120−000 Rivet 0785−010−653 Foot End Cover 0946−001−155 Bumper 1070−010−641 Bracket (page 132) Head End Lift Header (page 133) Foot End Lift Header...
  • Page 130 Scale Option − 26” Litter with Drop Seat or Knee Gatch Assembly part number 1070−010−260 (reference only) Foot End Cable Routing Bottom View Return to Table of Contents...
  • Page 131 Scale Option − 26” Litter with Drop Seat or Knee Gatch Head End Cable Routing Return to Table of Contents...
  • Page 132 Scale Option − 26” Litter with Drop Seat or Knee Gatch Foot End Patient, Right Side Cable Routing Bottom View Item Part No. Part Name Qty. 1070−137−001 Flange Eyelet 0013−038−000 External Tooth Lock Washer 0025−120−000 Rivet 0785−010−653 Foot End Cover, Scales 1070−010−052 Load Cell Cable Bracket, Rt.
  • Page 133 1070−017−600 26” Head End Scale Lift Header Item Part No. Part Name Qty. 0004−368−000 But. Hd. Cap Screw 0004−462−000 But. Hd. Cap Screw 0013−010−000 External Tooth Lock Washer 0016−035−000 Nylock Hex Nut 1040−010−827 Load Cell Ground Cable 1070−017−651 Lift Header Bracket 1070−017−662 Lift Header Support 1070−117−011...
  • Page 134 1070−017−650 26” Foot End Scale Lift Header Item Part No. Part Name Qty. 0004−368−000 But. Hd. Cap Screw 0004−462−000 But. Hd. Cap Screw 0016−035−000 Nylock Hex Nut 1070−017−661 Lift Header Bracket 1070−017−662 Lift Header Support 1070−117−012 Scales Bushing 3002−307−057 Load Cell Return to Table of Contents...

  • Page 135: Scale Option − 30" Litter With Stationary Foot Section

    Scale Option − 30” Litter with Stationary Foot Section Assembly part number 1070−010−365 (reference only) Foot End Cable Routing Return to Table of Contents...
  • Page 136 Scale Option − 30” Litter with Stationary Foot Section Foot End Bottom View Head End Return to Table of Contents...

  • Page 137: Scale Display Assembly

    Scale Option − 30” Litter with Stationary Foot Section Item Part No. Part Name Qty. 1070−137−001 Flange Eyelet 0013−038−000 External Tooth Lock Washer 0025−120−000 Rivet 0785−010−353 Foot End Cover, Scales 1070−010−341 Bracket (page 140) Head End Lift Header (page 141) Foot End Lift Header 1070−037−903 Specification Label...
  • Page 138 Scale Option − 30” Litter with Drop Seat or Knee Gatch Assembly part number 1070−010−360 (reference only) Foot End Bottom View − Knee Gatch Litter Return to Table of Contents...
  • Page 139 Scale Option − 30” Litter with Drop Seat or Knee Gatch Foot End Bottom View − Stationary Foot Litter Head End Foot End Bottom View − Right Side Return to Table of Contents...
  • Page 140 Scale Option − 30” Litter with Drop Seat or Knee Gatch Item Part No. Part Name Qty. 1070−137−001 Flange Eyelet 0013−038−000 External Tooth Lock Washer 0025−120−000 Rivet 0785−010−353 Foot End Cover, Scales/Gatch 1 1070−010−052 Load Cell Cable Bracket, Rt. (page 140) Head End Lift Header (page...
  • Page 141 1070−017−300 30” Head End Scale Lift Header Item Part No. Part Name Qty. 0004−368−000 Button Hd. Cap Screw 0004−462−000 Button Hd. Cap Screw 0013−019−000 External Tooth Lock Washer 0016−035−000 Nylock Hex Nut 1040−010−827 Load Cell Ground Cable 1070−017−351 Lift Header Bracket 3002−307−057 Load Cell 1070−010−827...
  • Page 142 1070−017−350 30” Foot End Scale Lift Header Item Part No. Part Name Qty. 0004−368−000 But. Hd. Cap Screw 0004−462−000 But. Hd. Cap Screw 0016−035−000 Nylock Hex Nut 1070−017−361 Lift Header Bracket 1070−017−362 Lift Header Support 3002−307−057 Load Cell 1070−117−012 Scales Bushing Return to Table of Contents...
  • Page 143 1070−137−020 Scale Display Assembly Return to Table of Contents...
  • Page 144 1070−137−020 Scale Display Assembly Item Part No. Part Name Qty. 0023−088−000 Pan Hd. Hi−Lo Tapping Screw 0034−104−000 Strain Relief 0034−431−000 Strain Relief 0059−782−000 Battery 1070−137−021* Upper Display Housing 1070−137−024 Display Lens 1070−037−856 Battery Holder Cable 1070−137−800 Scale PCB Board 1070−137−901 Overlay 1070−137−022 Lower Display Housing...
  • Page 145 0390−025−000 Standard, Removable I.V. Pole Assembly Item Part No. Part Name Qty. 0024−023−000 Plastic Knob 0390−003−053 Double IV Ass’y 0393−003−043 Tube Assembly 0004−496−000 Soc. Hd. Cap Screw Return to Table of Contents...
  • Page 146 No IV Pole Option Assembly part number 0785−035−250 (Head End) Assembly part number 0785−035−251 (Foot End) (reference only) FOOT END HEAD END Item Part No. Part Name Qty. 0785−010−131 Hole Plug Return to Table of Contents...
  • Page 147 2−Stage IV Assembly HEAD END 0785−035−638 2−Stage 26” IV, Head/Left 0785−035−338 2−Stage 30” IV, Head/Left 0785−035−641 2−Stage 26” IV, Head/Right 0785−035−341 2−Stage 30” IV, Head/Right 0785−035−640 2−Stage 26” IV, Foot/Left 0785−035−340 2−Stage 30” IV, Foot/Left 0785−035−643 2−Stage 26” IV, Foot/Right 0785−035−343 2−Stage 30”...
  • Page 148 0785−035−101 26” 2−Stage IV Pole Assembly 1211−110−137 IV Latch Wrench Item Part No. Part Name Qty. 0007−040−000 Truss Hd. Machine Screw 0052−017−000 Spacer 0785−035−003 IV Pole Pivot 0785−035−027 Base Tube 1010−059−016 IV Hook 0785−035−102 2nd Stage Assembly 0785−035−103 IV Pole Latch 1001−259−013 Dampener Return to Table of Contents...
  • Page 149 0785−035−401 30” 2−Stage IV Pole Assembly 1211−110−137 IV Latch Wrench Item Part No. Part Name Qty. 0007−040−000 Truss Hd. Machine Screw 0052−017−000 Spacer 0785−035−003 IV Pole Pivot 0785−035−027 Base Tube 1010−059−016 IV Hook 0785−035−102 2nd Stage Assembly 0785−035−103 IV Pole Latch 0785−035−301 Spacer 1001−259−013...
  • Page 150 3−Stage IV Assembly HEAD END 0785−035−642 3−Stage 26” IV, Head/Left 0785−035−342 3−Stage 30” IV, Head/Left 0785−035−637 3−Stage 26” IV, Head/Right 0785−035−337 3−Stage 30” IV, Head/Right 0785−035−644 3−Stage 26” IV, Foot/Left 0785−035−344 3−Stage 30” IV, Foot/Left 0785−035−639 3−Stage 26” IV, Foot/Right 0785−035−339 3−Stage 30”...
  • Page 151 0785−035−200 26” 3−Stage IV Pole Assembly Item Part No. Part Name Qty. 0007−004−000 Truss Hd. Machine Screw 0026−076−000 Slotted Spring Pin 0052−017−000 Spacer 0785−035−003 IV Pole Pivot 0785−035−026 Collar 1010−059−016 IV Hook 1211−110−016 Threaded Adaptor 0785−035−103 IV Pole Latch 0785−035−201 2nd Stage Assembly (page 152)
  • Page 152 0785−035−300 30” 3−Stage IV Pole Assembly Item Part No. Part Name Qty. 0007−004−000 Truss Hd. Machine Screw 0026−076−000 Slotted Spring Pin 0052−017−000 Spacer 0785−035−003 IV Pole Pivot 0785−035−026 Collar 1010−059−016 IV Hook 1211−110−016 Threaded Adaptor 0785−035−103 IV Pole Latch 0785−035−201 2nd Stage Assembly (page 152)
  • Page 153 0785−035−202 3−Stage IV Pole 3rd Stage Assembly Item Part No. Part Name Qty. 0031−021−000 Ball Bearing 0038−303−000 Compression Spring 0785−035−037 Thumb Knob 0785−035−206 Extension Rod 1010−061−013 Ball Retainer 1010−061−016 Retaining Shaft 1010−061−018 Hand Guard 1211−110−017 Return to Table of Contents...
  • Page 154 0785−030−610 Oxygen Bottle Holder, 26” Litter Item Part No. Part Name Qty. 0023−288−000 Truss Hd. Machine Screw (page 155) O2 Receptacle Assembly Return to Table of Contents...
  • Page 155 0785−030−310 Oxygen Bottle Holder, 30” Litter Item Part No. Part Name Qty. 0023−288−000 Truss Hd. Machine Screw (page 156) O2 Receptacle Assembly Return to Table of Contents...
  • Page 156 0785−030−601 26” O2 Bottle Receptacle Assembly Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−030−009 O2 Tube 0785−030−021 O2 Receptacle Clamp 0785−130−608 26” O2 Bracket Return to Table of Contents...
  • Page 157 0785−030−301 30” O2 Bottle Receptacle Assembly Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−030−009 O2 Tube 0785−030−021 O2 Receptacle Clamp 0785−130−308 30” O2 Bracket Return to Table of Contents...
  • Page 158 1020−130−000 Upright Oxygen Bottle Holder Assembly Item Part No. Part Name Qty. 0027−030−000 Hair Pin Cotter 1020−030−111 Upright Bottle Holder 1020−030−117 Specification Label Return to Table of Contents...

  • Page 159: Defibrillator Tray Assembly

    0785−045−200 Defibrillator Tray Assembly Strap Securing Detail Item Part No. Part Name Qty. 0002−044−000 Round Hd. Machine Screw 0025−055−000 Rivet 0029−008−000 Dual Lock 0029−010−000 Dual Lock 0785−045−201 Defib Tray Label 0785−045−402 Push/Pull Label 0785−045−403 Weight Capacity Label 0785−045−204 Tray Support 0785−045−207 Tray 0785−045−208...

  • Page 160: Defibrillator Tray/Foot Extender/Foot Board Assembly

    0785−045−400 Defib Tray/Foot Extender/Foot Board Item Part No. Part Name Qty. 0004−215−000 But Hd. Cap Screw 0008−049−000 Soc. Hd. Cap Screw 0014−020−000 Washer 0014−120−000 Washer 0016−028−000 Hex Nut 0037−052−000 Rubber Bumper 0038−133−000 Compression Spring 0052−017−000 Spacer 0785−045−402 Push/Pull Label 0785−045−403 Weight Capacity Label 0785−045−401 Foot Extender/Defib Tray Label...

  • Page 161: Serving Tray Assembly

    0785−045−700 Optional Serving Tray Assembly Item Part No. Part Name Qty. 0785−045−701 Serving Tray Label 0785−045−704 Flat Hd. Torx Screw 0785−045−705 Serving Tray Top 0785−045−706 Serving Tray Pinion 0785−045−710 Serving Tray Slider 0785−045−715 Serving Tray Cover 0785−045−403 Weight Capacity Label Return to Table of Contents...

  • Page 162: Foot Board/Serving Tray Holder

    0785−045−800 Optional Foot Board/Serving Tray Holder Item Part No. Part Name Qty. 0025−079−000 Rivet 0785−045−402 Push/Pull Label 0785−045−801 Serving Tray Holder Label 0785−045−805 Foot Board 0785−045−806 Front Plate 0785−045−810 Foot Board Support Weldment 0946−001−155 Bumper 0025−133−000 Dome Head Pop Rivet Return to Table of Contents...

  • Page 163: Foot Board/Chartholder Assembly

    0785−045−500 Foot Board/Chartholder Assembly BACK FRONT Item Part No. Part Name Qty. 0785−045−402 Push/Pull Label 0785−045−501 Foot Board Label 0785−045−511 Chartholder 0785−045−512 Foot Board Back 0785−045−513 Foot Board Front 0785−045−514 Small Standoff 0785−045−515 Large Standoff 0946−029−010 Support Weldment Return to Table of Contents...

  • Page 164: Mattresses And Siderail Pads

    Mattresses and Siderail Pads 76” Mattress, 4” x 26”, Echo ............0785−034−643 Mattress, 4”...
  • Page 165 Mattresses and Siderail Pads Siderail Pad Set ..........part # 1001−052−000 Return to Table of Contents...

  • Page 166: Warranty

    Stryker’s obligation under this warranty is expressly limited to supplying replacement parts and labor for, or replacing, at its option, any product which is, in the sole discretion of Stryker, found to be defective. If re- quested by Stryker, products or parts for which a warranty claim is made shall be returned prepaid to Stryker’s factory.

  • Page 167: Return Authorization

    Stryker will perform all service during regular business hours (9−5) * Replacement parts and labor for products under PM contract will be discounted. ** Does not include any disposable items, I.V. poles (except for Stryker HD permanent poles), mattresses, or damage re- sulting from abuse.
  • Page 168 European Representative Stryker EMEA RA/QA Director Stryker France ZAC Satolas Green Pusignan Av. De Satolas Green 69881 MEYZIEU Cedex France 3800 E. Centre Ave., Portage, MI 49002 (800) 327−0770 www.stryker.com JH 9/06 1007−009−002 REV A...

This manual is also suitable for:

Sm104

Table of Contents

Save PDF
