6) Click the 'Enable' button on the GUI to turn ON the laser output. Notice how the
LED in the button is lit to indicate that the laser output is ON..
7) Click the 'Ident' button. The Power LED and digital display on the front panel of
the associated controller flashes. This is useful in multi-channel systems for
identifying which channel is associated with which GUI.
8) Turn the OUTPUT control on the GUI panel to change the output power of the
laser. The power display should increment and decrement accordingly.
9) Click and hold on the OUTPUT control then rotate to adjust the laser intensity.
10) Click the units button to toggle between mW and dBm display modes.
See Section 6.1. for more details on the parameters shown in the GUI panel.

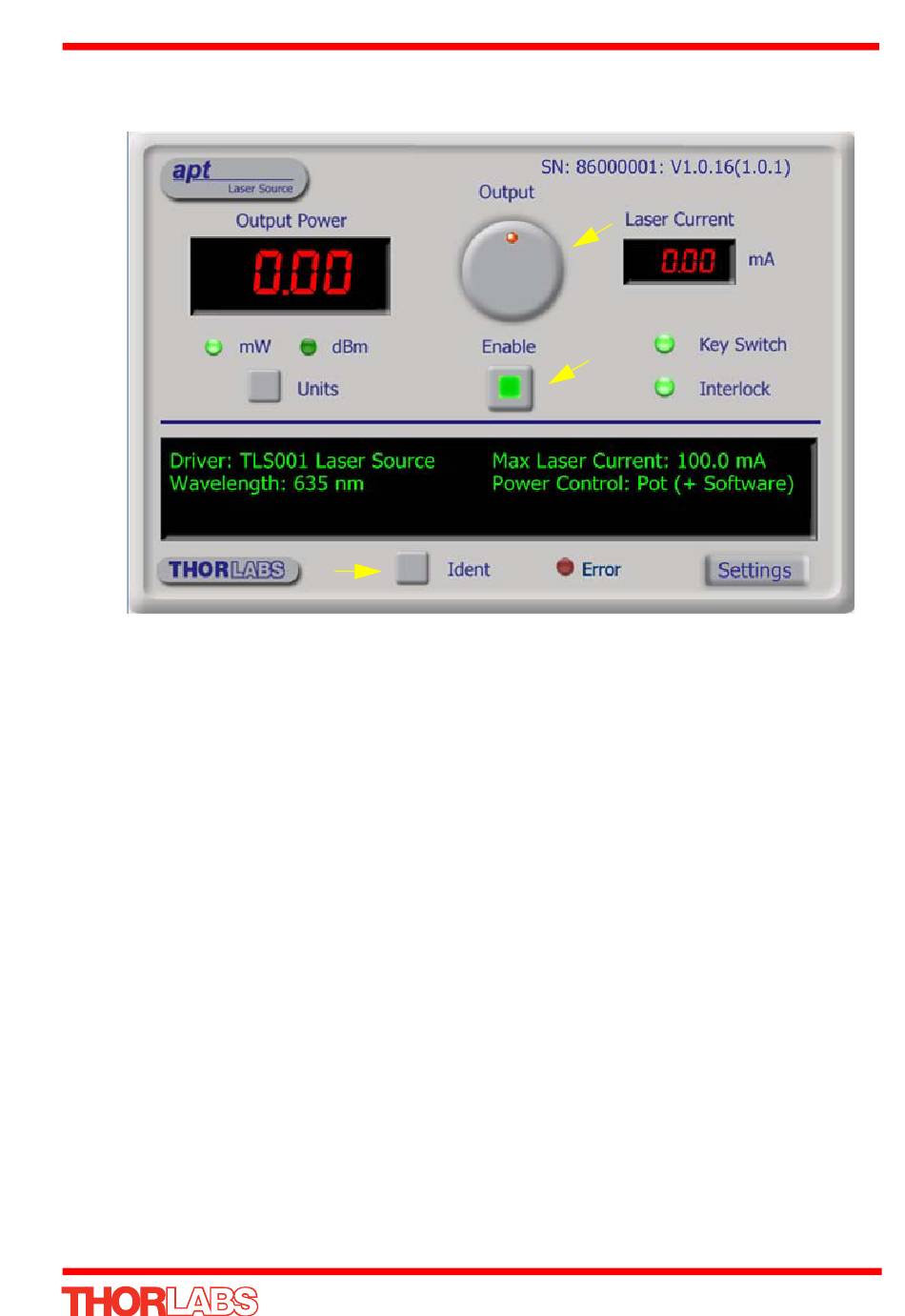

Fig. 5.1 Gui panel showing jog and ident buttons
