Technilock L4 locks
automatically
Exception with the
failure of the automatic
function in the „fail
locked" product variant
Striking plate
is not recognised
I

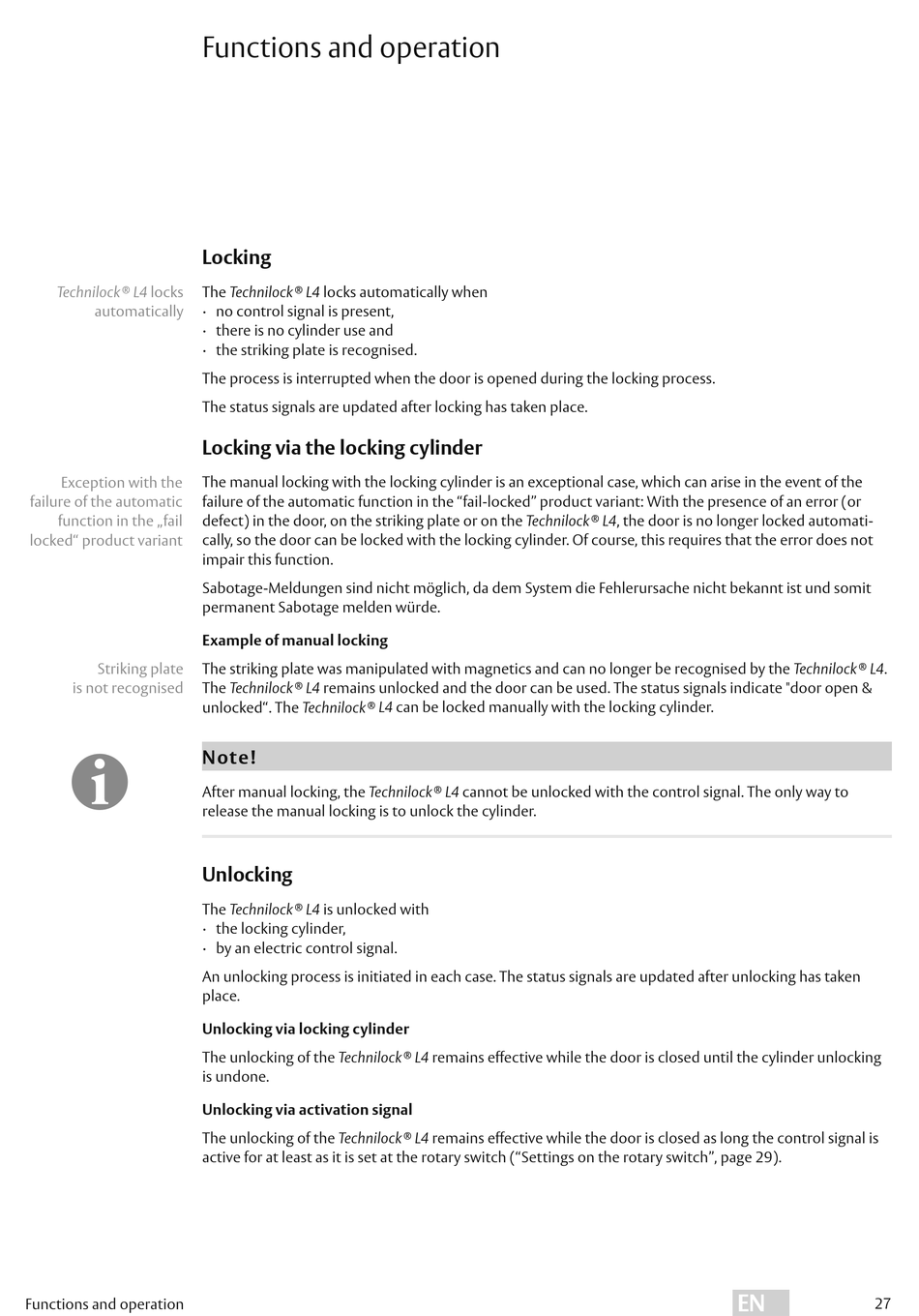

Functions and operation

Functions and operation

Locking

The Technilock ® L4 locks automatically when
· no control signal is present,
· there is no cylinder use and
· the striking plate is recognised.
The process is interrupted when the door is opened during the locking process.
The status signals are updated after locking has taken place.

Locking via the locking cylinder

The manual locking with the locking cylinder is an exceptional case, which can arise in the event of the
failure of the automatic function in the "fail-locked" product variant: With the presence of an error (or
defect) in the door, on the striking plate or on the Technilock
cally, so the door can be locked with the locking cylinder. Of course, this requires that the error does not
impair this function.
Sabotage-Meldungen sind nicht möglich, da dem System die Fehlerursache nicht bekannt ist und somit
permanent Sabotage melden würde.

Example of manual locking

The striking plate was manipulated with magnetics and can no longer be recognised by the Technilock
The Technilock ® L4 remains unlocked and the door can be used. The status signals indicate "door open &
unlocked". The Technilock ®
Note!
After manual locking, the Technilock
release the manual locking is to unlock the cylinder.

Unlocking

The Technilock ® L4 is unlocked with
· the locking cylinder,
· by an electric control signal.
An unlocking process is initiated in each case. The status signals are updated after unlocking has taken
place.

Unlocking via locking cylinder

The unlocking of the Technilock
is undone.

Unlocking via activation signal

The unlocking of the Technilock
active for at least as it is set at the rotary switch ("Settings on the rotary switch", page 29).
L4 can be locked manually with the locking cylinder.
® L4 cannot be unlocked with the control signal. The only way to
® L4 remains effective while the door is closed until the cylinder unlocking
® L4 remains effective while the door is closed as long the control signal is
® L4, the door is no longer locked automati-
EN
® L4.
