Assa Abloy Lockwood CAVITY LOCK Installation

CAVITY LOCK

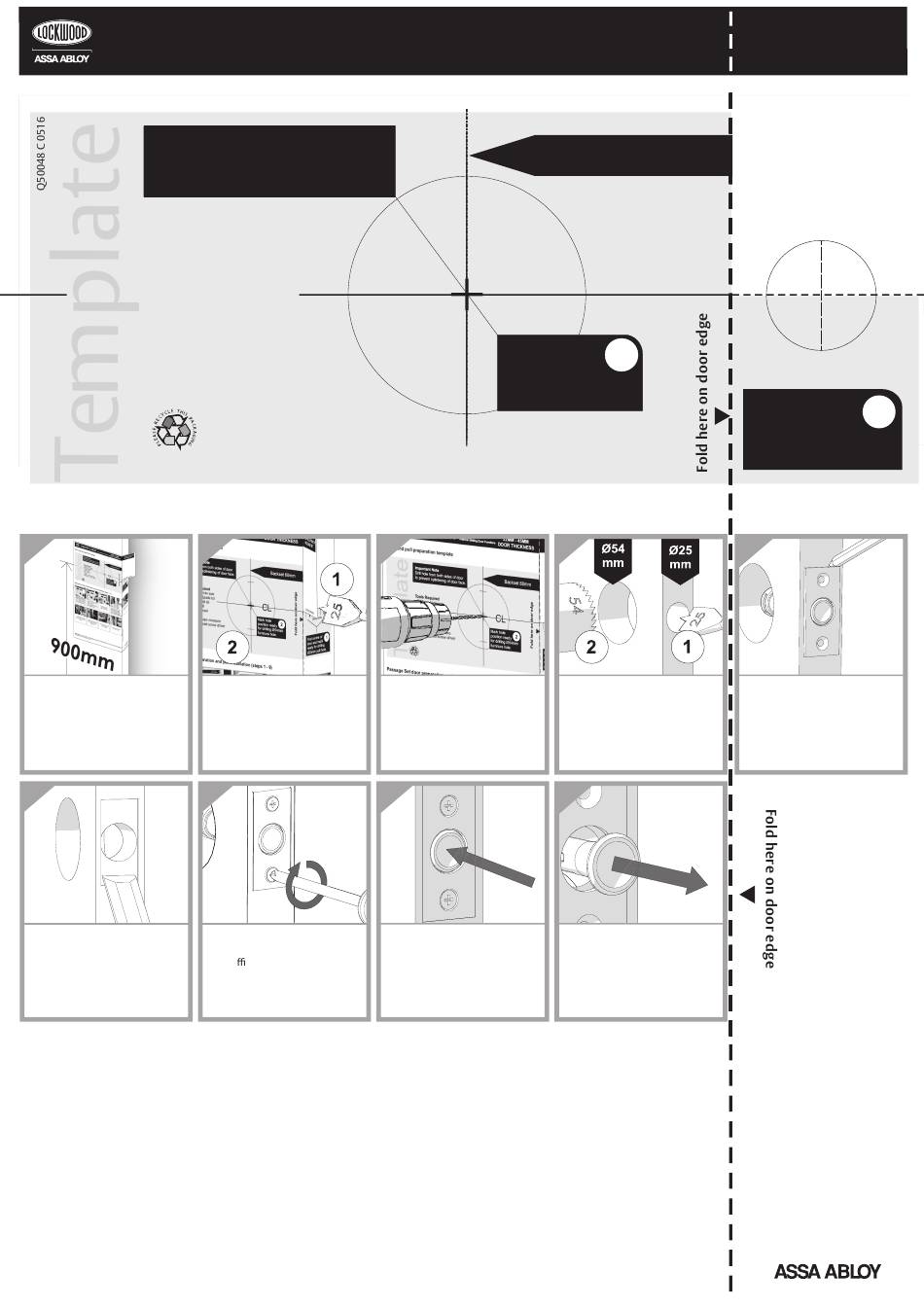

Door and pull preparation template
Important Note
Drill hole from both sides of door
to prevent splintering of the door face.
Tools Required
- Ø54mm Hole saw
- Ø25mm Spade bit
- Ø2mm Drill bit
- Power drill
- 25mm Chisel
- Pencil
- Ruler or tape measure
- Phillips head screw driver
Please ensure that all necessary safety precautions are taken when installing this product.
Passage Set door preparation and pull installation (steps 1 - 9)
1
Mark line on the door face
approximately 900mm from
the floor. Tear along perforated
line on template. Fold page
along --- dashed line and place
fold on door edge. Align CL with
marked line on door face.
6
Chisel out recess to suit face
plate. Face plate must be flush
with door face.
1300 LOCK UP
lockweb.com.au
ASSA ABLOY Australia Pty Limited, 235 Huntingdale Rd, Oakleigh, VIC 3166 ABN 90 086 451 907 ©2016
Status Approved 2016-05-16
®
Sliding Door Furniture
2
1. Find centre of door edge
and mark ready for drilling
Ø25mm pull hole.
2. Mark hole position ready for
drilling Ø54 furniture hole,
both sides of door.
7
Insert pull into recess.
Mark and drill 2mm pilot holes,
and a x with screws provided.
Mark hole
position ready
for drilling
furniture hole.
3
Drill Ø2mm pilot hole squarely
through the door.
8
Press the retractable door pull
button to release it.
(Press it to reset).
32MM - 45MM
DOOR THICKNESS
Backset 60mm
CL
2
Ø54mm
4
1. Drill Ø25mm pull hole to depth
of 70mm, ensure hole is
drilled squarely.
2. Drill a Ø54 furniture hole,
from both sides of door to
prevent splintering.
9
Pull on the retractable door pull
.
to remove door from cavity.
INSTALLATION OF
PASSAGE SET
Tear along perforated edge
Find centre of
1
door edge and
mark ready for drilling
Ø25mm latch hole.
5
Insert pull into Ø25mm hole,
mark around latch face plate.
