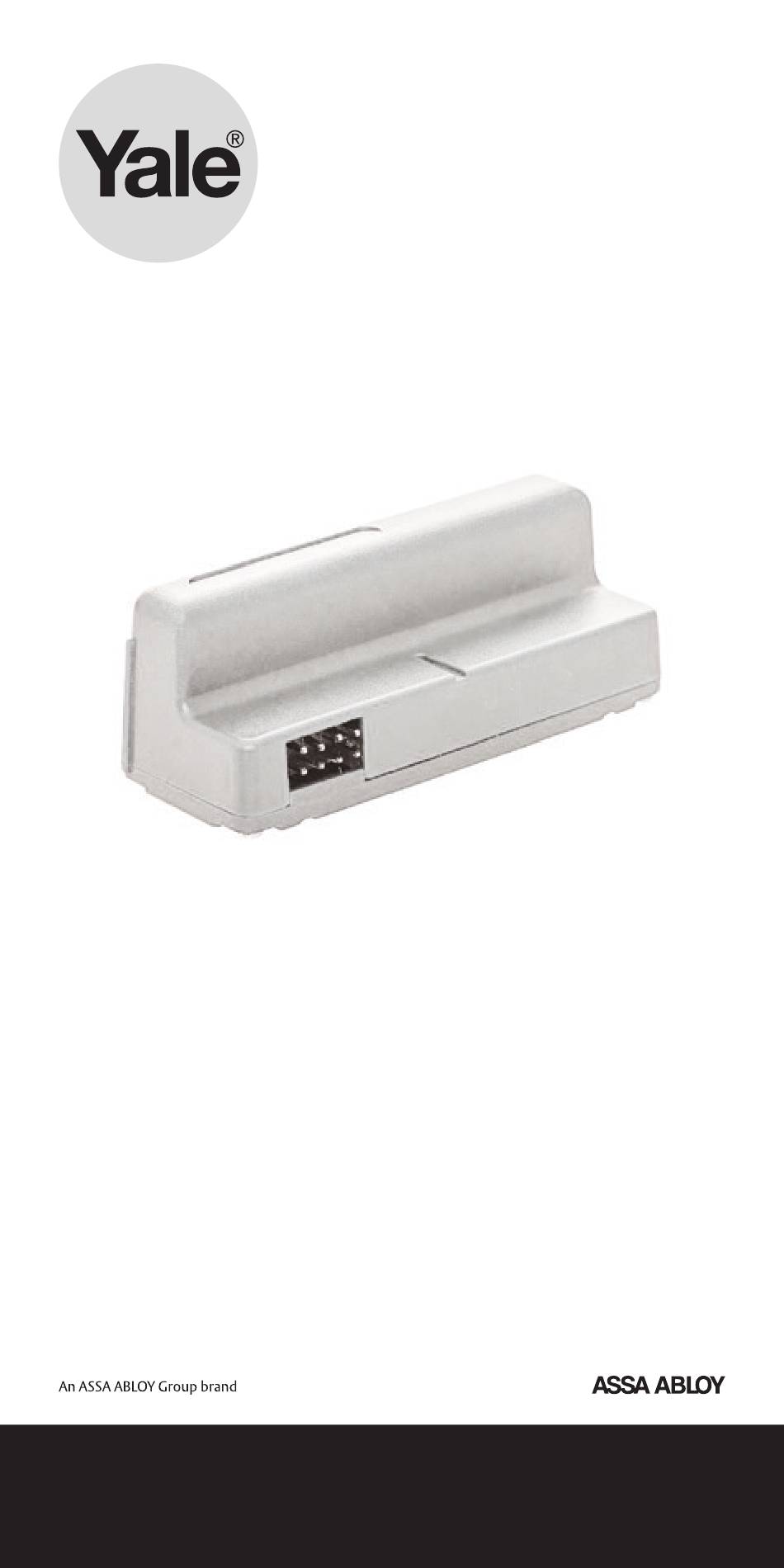

  • Page 1 smart Living Sync Module The smarter way to protect your home •...
  • Page 3 Thank you for purchasing the Yale Sync module. The process of pairing your lock to the Sync Alarm System is broken down into the following 3 steps: Inserting the Module Put the Alarm into learning Mode Put the Lock into learning Mode On each of these steps please follow the instructions for your...

  • Page 4: Table Of Contents

    Contents 1. Inserting the module Conexis L1 Keyless Connected Keyfree Connected Inserting the Module 2. Put the Alarm into learning mode 3. Put Lock into learning mode Conexis L1 Keyless Connected & Keyfree Connected Help & Support...

  • Page 5: Inserting The Module

    1. Inserting the module Conexis ® Pairing with a third party gateway. “Connecting to a home automation system is a two way pr compatible home automation system to be configured to consult the manual that came with the system for more inf Insert Connection Module...
  • Page 6 d party gateway. “Connecting to a home automation system is a two way pr compatible home automation system to be configured to mation system is a two way process and may require the n system to be configured to look for a new device, please consult the manual that came with the system for more inf e with the system for more information.

  • Page 7: Keyless Connected

    Keyless Connected Remove the batteries Insert the module Re-insert batteries...

  • Page 8: Keyfree Connected

    Keyfree Connected Keyfree Connected Keyfree Connected Keyfree Connected Inserting the Module Inserting the Module Inserting the Module Remove the batteries Remove the batteries Remove the batteries Remove the batteries Insert the module Insert the module Insert the module Insert the module Re-insert batteries Re-Insert batteries Re-insert batteries...

  • Page 9: Put The Alarm Into Learning Mode

    2. Put the Alarm into learning mode (This step is the same for all Smart Door Locks) On the Yale Home App, go to the app menu (top left corner) Select add device. Follow the instructions on the app. When learning mode is activated on the alarm, please follow the instructions for your lock in section 3 of this manual.

  • Page 10: Put Lock Into Learning Mode

    3. Put lock into Learning Mode Conexis L1 Make sure the sync Alarm is in leaning mode. Press the R button on the lock 3 times quickly (within 1.5 seconds) You will hear a fanfare sound from the lock and the alarm panel will beep twice.

  • Page 11: Keyless Connected & Keyfree Connected

    Keyless Connected & Keyfree Connected Make sure Sync alarm is in learning mode. Enter the Master code on the lock, followed by # Press the 4 button, followed by # Press the 1 button followed by # You will hear a fanfare sound from the lock and the alarm panel will beep twice.

  • Page 12: Help & Support

    Living Help & Support For Help & Support please visit www.yale.co.uk/help Hereby, ASSA ABLOY Ltd, School Street, WV13 3PW declares that the Sync Module is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.yale.co.uk/...
