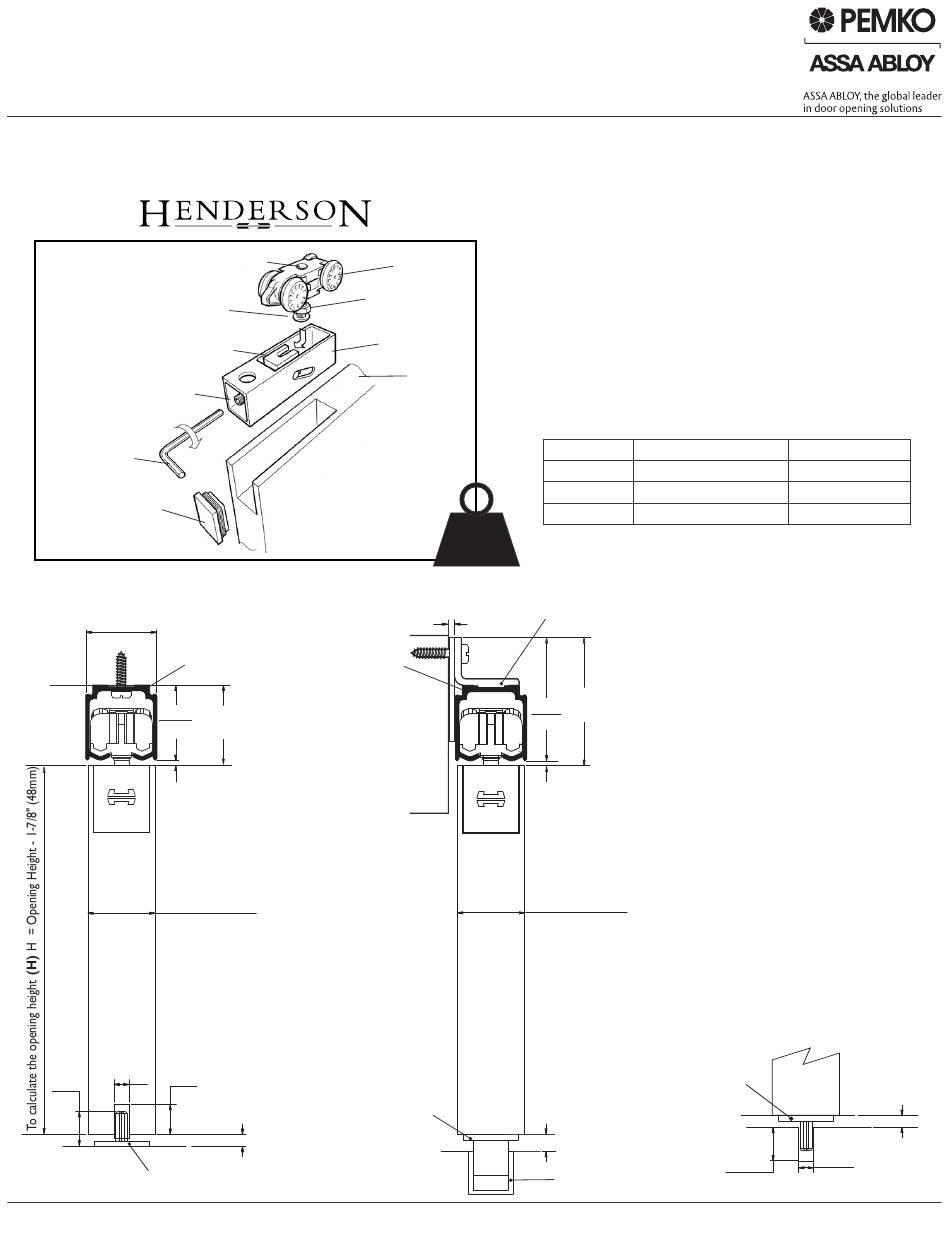

LP200 Series Sliding Door Hardware

800-824-3018 • www.pemko.com
Door Leaf Capacity - Up to 200 lbs.
Bolt must be level with top of hanger body
Hanger Strap Bolt
Slider Body
Height Adjustment Bolt
Turn clockwise to raise door
Allen Key
Channel Body Cover
Overhead Mount
1-1/8"
(33)
1-3/8"
(35)
3/8" (9.5) Max.
1/16" (2) Min.
Shown at
highest
(min clearance)
2" (51) Max.
1-3/8" (33) Min.
H
1/4
3/16
9/16
(6)
(5)
(14)
Guide 102N
Copyright © 2012, Pemko Manufacturing Co., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Pemko Manufacturing Co. is prohibited.
Manufactured by
Lock Nut
(if required)
280A or
280AN Track
280A or
280AN Track
1-3/4" (44) Max.
1-1/2" (38) Min.
position
1/8" (3.2) Min.
7/16" (11) Max.
Hanger
Channel Body
Door
Kit No.
LP200A/6
LP200A/8
LP200A/10
200 lbs
max door weight
Side Wall Mount
Spacer
281A Bracket
(optional)
2-1/4"
57
3/8" (9.5) Max.
1/16" (2) Min.
Shown at
highest
(min. clearance)
2" (51) Max.
1-3/8" (33) Min.
Guide
1/8" (3.2) Min.
106N/94
7/16" (11) Max.
(optional)
LP200A Kits Include:
1 ea 280AN Aluminum Track
1 ea LH100 Hardware Kit
LH100 Hardware Kits Include:
2 ea Low Head Room Units
2 ea End Caps
2 ea In-Track Clip Stops
1 ea Screw Pack
2 ea Low Head Room Hangers
1 ea 102N White Nylon Mortise Guide
1 ea Small Spanner
1 ea 4mm Allen Key
Material
aluminum track
/ 6'
aluminum track / 8'
aluminum track / 10'
2-5/8" (66) MAX
2-5/16" (59) MIN
position
Alternative Guide Arrangement
Requires an additional 102N guide.
Guide 102N
9/16"
94X Channel
(14)
(optional)
Max Leaf Size
96" x 36" x 2"
96" x 48" x 2"
96" x 60" x 2"
Not supplied in kit.
5/32"(4) MIN
7/16" (11) MAX
9/32"
(7)
