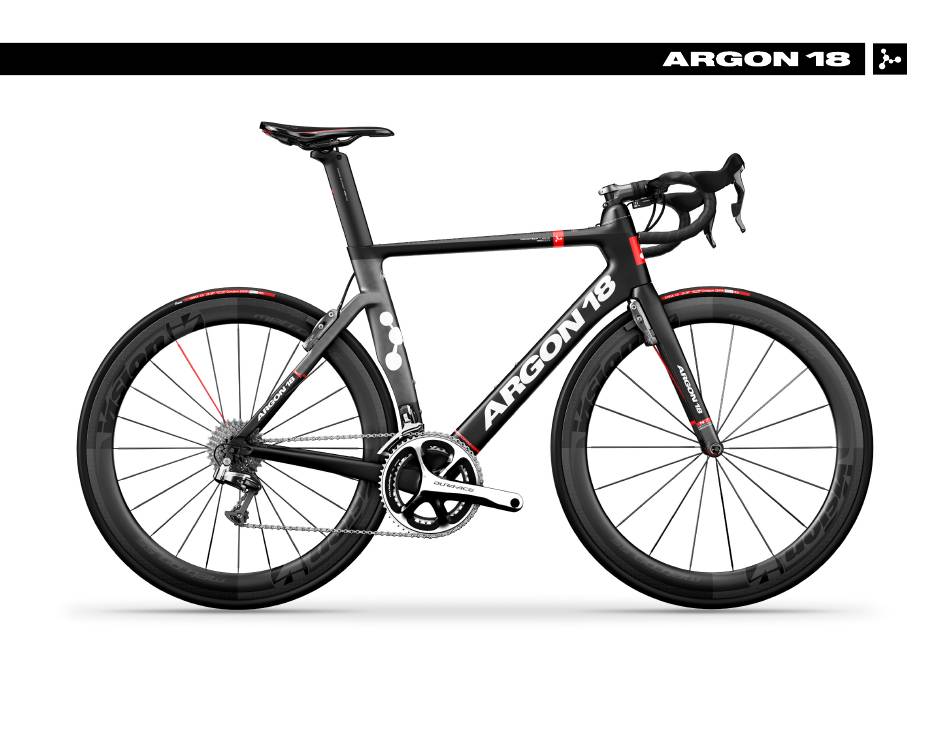

NITROGEN PRO 230A: ASSEMBLY GUIDE
Valid for MY2017-MY2018
Nitrogen Pro 230A
Revision 12.1 - 28-01-2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NITROGEN PRO 230A and is the answer not in the manual?

Questions and answers

Summary of Contents for Argon 18 NITROGEN PRO 230A

  • Page 1 NITROGEN PRO 230A: ASSEMBLY GUIDE Valid for MY2017-MY2018 Nitrogen Pro 230A Revision 12.1 - 28-01-2019...
  • Page 2: Table Of Contents

    13. Appendix ..........38 For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High end components, particularly carbon parts, need extra care when assembled.
  • Page 3: Frame Inspection

    NITROGEN PRO 230A: 1. Frame Inspection BEFORE ASSEMBLING YOUR NEW NITROGEN PRO, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING: 1. Brakes and gears cables and housing set 2: Frameset parts checklist (see p.36) 3: Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.) 4: For reference, check serial number and write it on p.1...
  • Page 4: Frameset Parts

    FK.NITPRO.230A Images are for reference only. Proportions are not accurate. Argon 18 reserves the right to modify/change parts of the frameset at any moment without prior notice. *For more info please consult notice on Seatpost clamp dated 2016-06-09...
  • Page 5 NITROGEN PRO 230A: 2. Frameset Parts AHB5000 - 38cm - 80073 AHB5000 - 40cm - 80074 AHB5000 - 42cm - 80075 AHB5000 - 44cm - 80076 Washer Screw Screw Elastic Cover Elastic Cover Spacer Screws Stem A.03 Stem A.02 Stem A.01...
  • Page 6: Headset Installation

    NITROGEN PRO 230A: 3. Headset Installation Install the 3D headset (16.3 & 16.4) according to the AERO Pressfit assembly guide. You can choose from 3 different heights: 25mm, 15mm or 0mm. 16.3 & 16.4 GREASE GREASE GREASE GREASE...
  • Page 7 NITROGEN PRO 230A: 3. Headset Installation setup 25mm setup Compressor 15mm STEP First, you must assess which setup suits your needs: Top cap (including O-ring & seal) 25mm, 15mm or 0mm. Micro spacers Compression ring setup STEP Inspect the bike’s head tube for any sharp edges and Bearing apply a small amount of grease.
  • Page 8 NITROGEN PRO 230A: 3. Headset Installation IMPORTANT: Use the Press Fit 3D system tool 1 1/2” with the Bearing Cup Press (ParkTool HHP-2) to avoid any damage on the bike frame. Compressor Top cap (including O-ring and seal) Micro spacers...
  • Page 9: Stem/Handlebar Installation

    NITROGEN PRO 230A: 4. Stem/Handlebar Installation A T I O N M A T R I X C O N F I G U R A T I O N M A T R I X Stems size (stems included)
  • Page 10 NITROGEN PRO 230A: 4. Stem/Handlebar Installation 1. Choose the desired stem length, bolt, and spacer needed (refer to the Product Matrix chart on p.X) – note that the bolt comes pre-coated with Loctite. In the event of assembling and disassembling, one drop of blue Loctite (#242 or #243) must be applied on the bolt threads.
  • Page 11 NITROGEN PRO 230A: 4. Stem/Handlebar Installation 2. Place the elastic cover on the stem and the spacer with the Argon 18 logo facing up. 3. Place the handlebar upside down on a clean rag. 4. With the correct spacer and stem length...
  • Page 12 NITROGEN PRO 230A: 4. Stem/Handlebar Installation Place the handlebar on the fork and secure the stem/combo with the two side bolts to 5Nm. GRIP PASTE GRIP PASTE 2-3mm Note: When cutting the fork, allow 2mm or 3mm of additional space between the compressor cap and the fork in order to...
  • Page 13 NITROGEN PRO 230A: 4. Stem/Handlebar Installation Electronic Shifting Important: Always pass the electronic cables before the brake housing; the opposite would make it very difficult to get the electronic cables through after the brake housing. 2. Lower the shifter assembly.
  • Page 14 NITROGEN PRO 230A: 4. Stem/Handlebar Installation 3. Fish two cables inside the handlebar on each side. 4. Select the length of necessary housing and pass both at the same time.
  • Page 15 NITROGEN PRO 230A: 4. Stem/Handlebar Installation 5. Pass the brake and gear cables in the shifter body. 6. Connect cables to housing and put the levers back to the white mark on the handlebar.
  • Page 16 NITROGEN PRO 230A: 4. Stem/Handlebar Installation Computer mount is compatible with any 2-screw computer mounting accessories. Note: tighten to 3,5 Nm maximum.
  • Page 17: Front Brake Installation

    NITROGEN PRO 230A: 5. Front Brake Installation Cable routing overview It’s better to install cable housing before installing the bottom bracket and crankset. Suggested lengths of the cable housing housing/size Front brake 40cm 45cm 50cm 55cm 35cm Rear brake front section...
  • Page 18 NITROGEN PRO 230A: 5. Front Brake Installation GREASE GREASE LOCTITE GREASE Install the brakes as shown in the diagram. GREASE 8 Nm LOCTITE 8 Nm...
  • Page 19 NITROGEN PRO 230A: 5. Front Brake Installation 6 Nm 1. Pass the cable through the curved straw and then in the appropriate guide. 2. Fix the cable to the caliper with the 6mm screw and tighten it to 6Nm. Curved...
  • Page 20 NITROGEN PRO 230A: 5. Brake Pad Spacing IMPORTANT: If the brake bad spacing is too thick, the brake arm can rub on the frame down tube. Make sure the pad spacing is appropriate. Adjust brake pads according to the width of your rims:...
  • Page 21: Rear Brake Installation

    NITROGEN PRO 230A: 6. Rear Brake Installation 18.2.2 GREASE 8 Nm 18.2 8 Nm LOCTITE Install the brakes as shown in the diagram.
  • Page 22 NITROGEN PRO 230A: 6. Rear Brake Installation 1. Adjust brake pads according to the width of your rims: 2. Pass the cable through the cable guide. Make sure that the length of the cable housing is sufficient for the guide to remain horizontal as it can cause interference with the rear wheel tire.
  • Page 23: Cable Housing Installation

    NITROGEN PRO 230A: 7. Cable Housing Installation 1. Install the rear derailleur cable housing starting at the drive side’s drop-out until it comes out in the top tube. brake and speed adjustment : 5mm barrel adj. 2. Install the front derailleur cable housing starting under the bottom bracket shell.
  • Page 24 NITROGEN PRO 230A: 7. Cable Housing Installation Note: The front brake cable guide (17.2.2) should be front-oriented to ensure good rotation of the handlebar. 17.2.2 Front brake cable guide...
  • Page 25 NITROGEN PRO 230A: 7. Cable Housing Installation 6 Nm Front brake Pass the cable through the cable guide (17.2.2). Create a “hook” with the cable; it will be easier to pass it inside the retainer nut.
  • Page 26 NITROGEN PRO 230A: 7. Cable Housing Installation KEB cable housing Rear brake Remove the 2 cable stopper (on the head tube and near the seat collar). Font section: Measure the necessary cable housing to ensure proper rotation of the handlebar. Insert the “KEB” cable housing and the cable trough the top tube.
  • Page 27 NITROGEN PRO 230A: 7. Cable Housing Installation Note: It’s better to install the cable housing before installing the bottom bracket and crankset. Rear derailleur: Pass the cable housing inside the frame starting at the rear derailleur hanger until it comes out the top tube.
  • Page 28 NITROGEN PRO 230A: 7. Cable Housing Installation Use the provided grommet (19) to correctly set the rear derailleur cable housing in the chainstay (mechanical drive-train only).
  • Page 29: Electronic Drive-Train Specification

    NITROGEN PRO 230A: 8. Electronic Drive-train Specification The Di2 cable routing can be achieved easily using this simple trick: use a gear cable and a metal cable end to fix the Di2 cable. For more information on Shimano Di2 electronic system...
  • Page 30 NITROGEN PRO 230A: 8. Electronic Drive-train Specification Use the proper grommet on the top tube to fix the cable correctly (depending if you use electronic shifting or mechanical drive-train).
  • Page 31 NITROGEN PRO 230A: 8. Electronic Drive-train Specification When using an electronic drive-train, use the grommet (13) to fix the front derailleur cable.
  • Page 32 NITROGEN PRO 230A: 8. Electronic Drive-train Specification The Di2 battery is hidden in the seatpost; use the Di2 battery holder (2o) to fix the battery correctly. Apply a slight amount of grease on both parts. GREASE CARBON FIBER ASSEMBLY COMPOSITE...
  • Page 33: Seatpost Installation

    NITROGEN PRO 230A: 9. Seatpost Installation RUNNING CHANGE 5.5 Nm GREASE THREADLOCKER BLUE (n. 242) 1. Place the seat post collar inside the frame. GREASE 2. Insert the seatpost (3) on which some carbon fiber assembly gel has GREASE been applied.
  • Page 34: Saddle Adjustment

    NITROGEN PRO 230A: 10. Saddle Adjustment 1. Install the saddle on the rocker (3.4) and tighten the rail clamp (3.3) up to 6Nm with M5 screw (3.10). 2. Adjust the angle and the offset of the saddle by hand tightening the thumb screw (3.8).
  • Page 35: Derailleur Hanger Adjustment

    NITROGEN PRO 230A: 11. Derailleur Hanger Adjustment The front derailleur hanger (6) can be adjusted according to the front derailleur angle to get an equal curve between the derailleur and the big chain ring. Once at the right angle, use blue 242 Loctite and screw both screws in at 4Nm.
  • Page 36 NITROGEN PRO 230A: 11. Derailleur Hanger Adjustment 1. Ensure that the dropout is aligned. 2. Use Derailleur Hanger Alignment Gauge like Park Tool Item # DAG-2. For any assistance, visit Park Tool’s website: parktool.com/product/derailleur-hanger-align- ment-gauge-dag-2...
  • Page 37: Parts' Skus And Descriptions

    NITROGEN PRO 230A: 12. Parts’ SKUs and Descriptions* Name Assembled on A18 SKU# Parts already assembled Rear Derailleur Hanger (incl. screws) Frame 38883 Front Derailleur Hanger (incl. screws) Frame 38882 BB Cable Guide (incl. screw) Frame 38885 Bottle Cage Screws...
  • Page 38 NITROGEN PRO 230A: 12. Parts’ SKUs and Descriptions Name Assembled on A18 SKU# Parts Derailleur and Brake Cable Housing Kit Frame 39014 Brake cable/housing kit includes: KEB Housing INCL. End Caps INCL. End Caps INCL. End Caps INCL. Cable INCL.
  • Page 39 NITROGEN PRO 230A: 13. Appendix HOW TO ASSEMBLE HB (FRAME SET AND COMPLETE BIKE) Stem/Handlebar Installation AHB5000 part# Frame size product # assembly guide 40cm: 80074 Handle bar width 40cm 42cm 44cm 44cm 44cm 42cm: 80075 44cm: 80076 Stem length...
