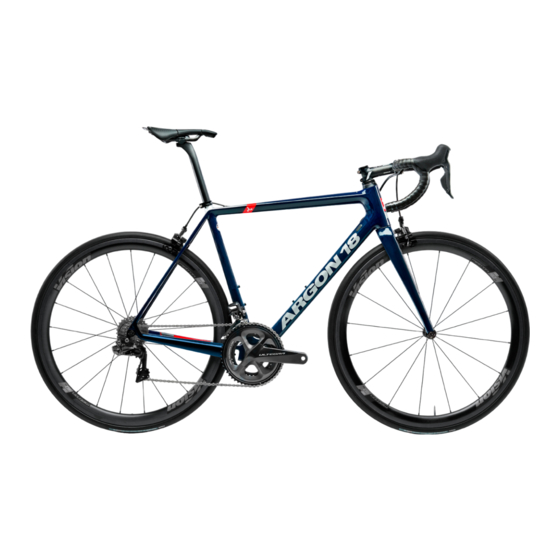

12. Min/Max Seat Post Insertion ........25 For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components, particularly carbon parts, need extra care when assembled.
GALLIUM PRO 347A: 1. Tools Needed and First Aid Kit Tools needed for assembly 1: Bearing Cup Press (Park Tool HHP-2) 2: Allen Key Set 3: Grease 4: Utility Pick Set (Park Tool Item #UP-SET) 5: Clean Rags 6: Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2 or #DAG-2.2)
GALLIUM PRO 347A: 2. Sizing Chart Saddle Height Sizing Chart: Gallium Pro Saddle Suggested Seat tube Top tube Stack Reach Stack Reach Stack Reach Drop Drop Height Size angle length Minimum Maximum 3D Spacer = 0 3D Spacer = 15 3D Spacer = 25 75.5...
GALLIUM PRO 347A: 3. Trouble-shooting / Tips SPECIFICATIONS Tire Clearance Up to 28mm tire clearance. Seat Post 27.2mm (Argon 18 ASP-6600 Carbon Seat Post Included) Seat Post Clamp 30.7mm Bottom Bracket BB86 (Press-fit) Headset FSA No 37 + 3D Press-fit (Bearing 1 1/8” , 36°x45° top and 1 1/2” , 36°x45° bottom + FSA TH-881-1 Compressor included) IMPORTANT: No more than 30mm of spacers can be placed between the stem and the top cap of the 3D system.
GALLIUM PRO 347A: 4. Seat Post Collar Assembly Assemble the seat post collar with the seat post. CARBON PASTE Apply carbon paste on the seat post where it inserts inside the frame. Tighten the bolt at 4 Nm.
Page 7
GALLIUM PRO 347A: 5. Seat Post Assembly The seat post is supplied fully assembled. It’s equipped with a spring-loaded head for easy installation of the saddle. 1. Unscrew both bolts slightly until the top clamp (a) and the cradle (b) are separated enough to insert the saddle rail.
GALLIUM PRO 347A: 5. Seat Post Assembly 25mm offset 15mm offset The top clamp (a) and the cradle (b) can be flipped to change the saddle offset between 15 or 25mm.
GALLIUM PRO 347A: 6. Frameset Inspection BEFORE ASSEMBLING YOUR NEW GALLIUM PRO, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING: 1. Frameset parts (see p.9) 2. Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.) 3. For reference, check serial number and write it on 4.
GALLIUM PRO 347A: 8. Rear Derailleur Hanger Adjustment 1. Ensure that the derailleur hanger is aligned. 2. Use Derailleur Hanger Alignment Gauge like Park Tool Item #DAG-2 or #DAG-2.2. For any assistance, visit Park Tool’s website: parktool.com/product/derailleur-hanger- alignment-gauge-dag-2...
GALLIUM PRO 347A: 9. Mechanical Drivetrain Specification Start installation at this end. Insert derailleur cables with hoses using plastic caps. Insert hydraulic brake hose as shown. DC+DH CABLE GUIDE DC+DH CABLE STOPPER BR = Brake Hose DC = Derailleur Cable (mech.)
Page 13
GALLIUM PRO 347A: 9. Mechanical Drivetrain Specification BOTTOM BRACKET CABLE GUIDE BOTTOM BRACKET CABLE GUIDE DC = Derailleur Cable (mech.) Exit derailleur cables through bottom bracket (BB) hole. Insert in the appropriate slots in the BB guide. Making sure the pipe is aligned with the top hole,...
Page 15
GALLIUM PRO 347A: 9. Electronic (Di2) Drivetrain Specification Start installation at this end. Insert electronic wire and hydraulic brake hose as shown. GROMMET CABLE GUIDE PLUG BR = Brake Hose EW = Electronic Wire...
Page 16
GALLIUM PRO 347A: 9. Electronic (Di2) Drivetrain Specification GROMMET BOTTOM BRACKET COVER EW = Electronic Wire Use the square hole to connect all the wires to the junction box. Insert the junction box in the hole. Insert the BB cover in the square hole until it clicks.
Page 17
GALLIUM PRO 347A: 9. Electronic (Di2) Drivetrain Specification GROMMET BR = Brake Hose EW = Electronic Wire...
Page 18
GALLIUM PRO 347A: 9. Electronic (Di2) Drivetrain Specification The Di2 battery is hidden in the seatpost; use the Di2 battery holder to fix the battery correctly. Apply a slight amount of grease on both parts. Di2 BATTERY HOLDER GREASE...
Page 19
GALLIUM PRO 347A: 9. Electronic Wireless Drivetrain Specification Start installation at this end. Insert hydraulic brake hose as shown. CABLE GUIDE PLUG BR = Brake Hose...
Page 20
GALLIUM PRO 347A: 9. Electronic Wireless Drivetrain Specification ROUND PLUG BOTTOM BRACKET COVER Use the square hole to connect all the wires to the junction box. Insert the junction box in the hole. Insert the BB cover in the square hole until it clicks.
GALLIUM PRO 347A: 12. Min/Max Seat Post Insertion Refer to the tables below for details on Saddle Height and SeatPost insertion limits. The correct frame size must be determined according to the saddle height limits. A. Minimum Saddle Height D. Maximum Saddle Height...
