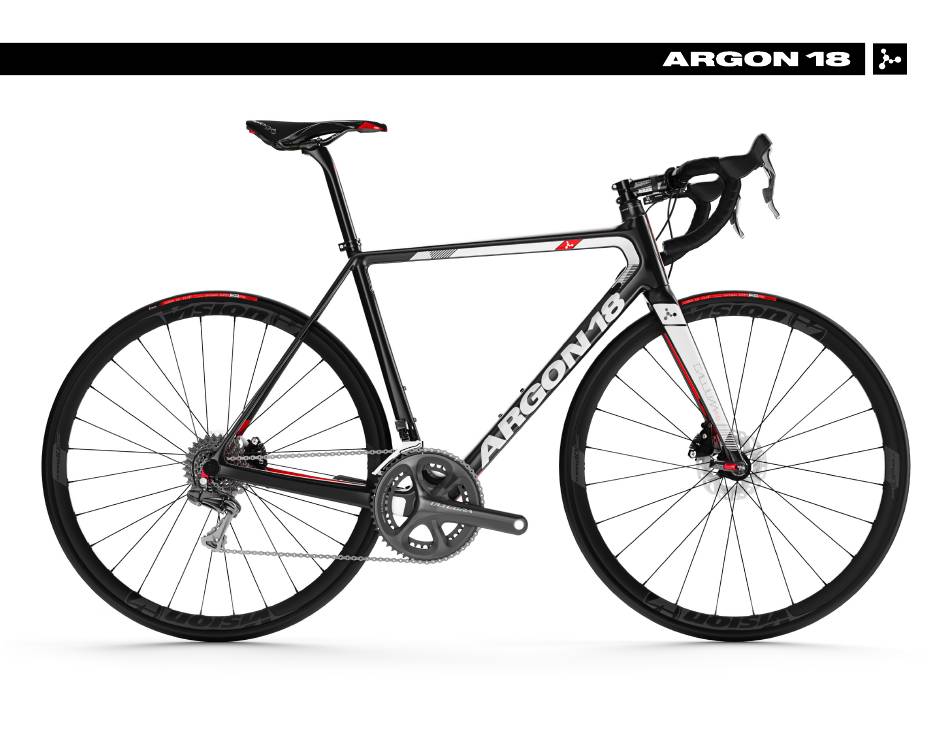

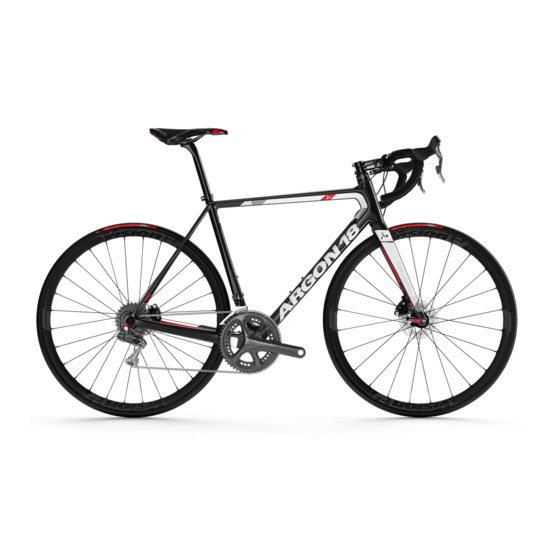

- Page 1 GALLIUM PRO DISC 246A/246B: ASSEMBLY GUIDE Revision 2.0 - 2017-29-05 - Valid for MY2017 Gallium Pro Disc Gallium Pro Disc Gloss shown above. The Gallium Pro Disc is also available in Black Matte.
-
Page 2: Table Of Contents
11. Appendix - Naild Axles Installation ....... . . 24 For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components, particularly carbon parts, need extra care when assembled. -
Page 3: Tools Needed And First Aid Kit
GALLIUM PRO DISC 246A/246B: 1. Tools Needed and First Aid Kit Tools needed for assembly 1: Bearing Cup Press (Park Tool HHP-2) 2: Allen Key Set 3: Grease 4: Utility Pick Set (Park Tool Item #UP-SET) 5: Clean Rags 6: Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2 or #DAG-2.2) - Page 4 GALLIUM PRO DISC 246A/246B: 2. Sizing Chart Saddle Height Sizing Chart: Gallium Pro Disc Saddle Suggested Seat tube Top tube Stack Reach Stack Reach Stack Reach Drop Drop Height Size angle length Minimum Maximum 3D Spacer = 0 3D Spacer = 15 3D Spacer = 25 75.5...
-
Page 5: Trouble-Shooting / Tips
GALLIUM PRO DISC 246A/246B: 3. Trouble-shooting / Tips SPECIFICATIONS Brakes Use only flat mount hydraulic disc brakes. The frame and fork are compatible with either 140mm or 160mm disc rotors. Adapters might be required, consult brake manufacturer. • Rear mount thickness: 30mm •... - Page 6 GALLIUM PRO DISC: 4. Seat Post Collar Assembly Assemble the seat post collar with the seat post. CARBON PASTE Apply carbon paste on the seat post where it inserts inside the frame. Tighten the bolt at 4 Nm.
- Page 7 GALLIUM PRO DISC: 5. Seat Post Assembly The seat post is supplied fully assembled. It’s equipped with a spring-loaded head for easy installation of the saddle. 1. Unscrew both bolts slightly until the top clamp (a) and the cradle (b) are separated enough to insert the saddle rail.
- Page 8 GALLIUM PRO DISC 246A/246B: 5. Seat Post Assembly 25mm offset 15mm offset The top clamp (a) and the cradle (b) can be flipped to change the saddle offset between 15 or 25mm.
-
Page 9: Frameset Inspection
GALLIUM PRO DISC 246A/246B: 6. Frameset Inspection BEFORE ASSEMBLING YOUR NEW GALLIUM PRO DISC, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING: 1. Frameset parts (see p.9) 2. Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.) 3. - Page 10 GALLIUM PRO DISC 246A/246B: 7. Frameset Parts SKU: 80546 Included in SKU: 80403 SKU: 80554 Included in SKU: 80404 SKU: 80553 SKU: 80555 SKU: 38884 SKU: 38879 SKU : 80649 SKU: 80548 SKU: 80404 SKU: 80551 SKU: 80547 SKU: 80403...
-
Page 11: Rear Derailleur Hanger Adjustment
GALLIUM PRO DISC 246A/246B: 8. Rear Derailleur Hanger Adjustment 1. Ensure that the derailleur hanger is aligned. 2. Use Derailleur Hanger Alignment Gauge like Park Tool Item #DAG-2 or #DAG-2.2. For any assistance, visit Park Tool’s website: parktool.com/product/derailleur-hanger- alignment-gauge-dag-2 Also see instructions from Naild... - Page 12 GALLIUM PRO DISC 246A/246B: 9. Mechanical Drivetrain Specification Start installation at this end. Insert derailleur cables with hoses using plastic caps. Insert hydraulic brake hose as shown. DC+DH DC+DH BR = Brake Hose DC = Derailleur Cable (mech.) DH = Derailleur Housing (mech.)
- Page 13 GALLIUM PRO DISC 246A/246B: 9. Mechanical Drivetrain Specification DC = Derailleur Cable (mech.) Exit derailleur cables through bottom bracket (BB) hole. Insert in the appropriate slots in the BB guide. Making sure the pipe is aligned with the top hole,...
- Page 14 GALLIUM PRO DISC 246A/246B: 9. Mechanical Drivetrain Specification DC+DH BR = Brake Hose Exit the hydraulic brake hose through DC = Derailleur Cable (mech.) the hole on the chain stay. DH = Derailleur Housing (mech.)
- Page 15 GALLIUM PRO DISC 246A/246B: 9. Electronic (Di2) Drivetrain Specification Start installation at this end. Insert electronic wire and hydraulic brake hose as shown. BR = Brake Hose EW = Electronic Wire...
- Page 16 GALLIUM PRO DISC 246A/246B: 9. Electronic (Di2) Drivetrain Specification EW = Electronic Wire Use the square hole to connect all the wires to the junction box. Insert the junction box in the hole. Insert the BB cover in the square hole until it clicks.
- Page 17 GALLIUM PRO DISC 246A/246B: 9. Electronic (Di2) Drivetrain Specification BR = Brake Hose Exit the hydraulic brake hose through EW = Electronic Wire the hole on the chain stay.
- Page 18 GALLIUM PRO DISC 246A/246B: 9. Electronic (Di2) Drivetrain Specification The Di2 battery is hidden in the seatpost; use the Di2 battery holder to fix the battery correctly. Apply a slight amount of grease on both parts. GREASE...
- Page 19 GALLIUM PRO DISC 246A/246B: 9. Electronic Wireless Drivetrain Specification Start installation at this end. Insert hydraulic brake hose as shown. BR = Brake Hose...
- Page 20 GALLIUM PRO DISC 246A/246B: 9. Electronic Wireless Drivetrain Specification Use the square hole to connect all the wires to the junction box. Insert the junction box in the hole. Insert the BB cover in the square hole until it clicks.
- Page 21 GALLIUM PRO DISC 246A/246B: 9. Electronic Wireless Drivetrain Specification BR = Brake Hose Exit the hydraulic brake hose through the hole on the chain stay.
- Page 22 GALLIUM PRO DISC 246A/246B: 10. Parts’ SKUs and Descriptions SKU: 80546 Included in SKU: 80403 SKU: 80554 Included in SKU: 80404 SKU: 80553 SKU: 80555 SKU: 38884 SKU: 38879 SKU : 80649 SKU: 80548 SKU: 80404 SKU: 80551 SKU: 80547...
- Page 23 GALLIUM PRO DISC 246A/246B: 10. Parts’ SKUs and Descriptions* Name Assembled on A18 SKU# Parts already assembled Rear Derailleur Hanger Frame 80649 Seat Post Clamp Subassembly Seat Post 80657 Removable Cable Stopper Frame 80552 Cable Stopper Frame 38879 Bottom Bracket Cable Guide...
- Page 24 GALLIUM PRO DISC 246A/246B: 11. Appendix - Naild Axles Installation...
- Page 25 GALLIUM PRO DISC 246A/246B: 11. Appendix - Naild Axles Installation...
