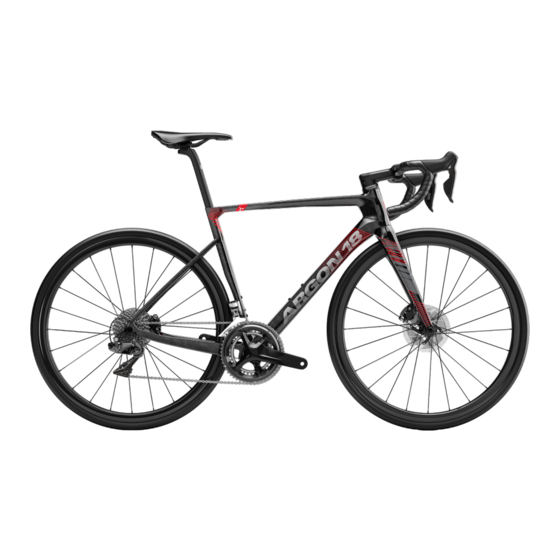

Summary of Contents for Argon 18 SUM PRO 2022
-
Page 4: Table Of Contents
These components must be installed using Date of Purchase: must be fully assembled by an authorized a torque wrench to ensure each bolt is at Argon 18 dealer. High-end components, the specified torque setting to prevent such as carbon parts, require extra care damage. -
Page 5: Tools Needed & Spare Parts Kit
Tools Needed & spare parts Kit Hydraulic Hose Set of Allen Key Flush Cut Plier Carbon Paste Utility Picks Clean Rag Cutter & Grease Derailleur Hanger Cables and Medium-strength Isopropyl Alcohol Torque Wrench Cassette Lockring Alignement Gauge Housing Cutter Thread Locker Tool 8mm Wrench Bleed Kit... -
Page 6: Troubleshooting / Tips & Specifications
Brakes Seat Post Collar Rear brake - 140/160mm disc rotors Argon 18 exclusive, SUM seatpost clamp is NOT the same as the Nitrogen, E-117 and Front brake - 140/160mm disc rotors E-119 or any other seat clamp model. Power Meter... -
Page 7: Frameset Inspection
Frameset Inspection Before assembling your new SUM, please : Check you parts against the frameset parts checklist (see p.8) For optimal shifting performance, use a derailleur alignment gauge to make sure that the derailleur hanger is straight. Inspect the frame for cosmetic defects (scratches, bumps, cracks, paint defects, etc.) Some of the following parts are already assembled on the frame. -
Page 8: Frameset Skus & Descriptions
Frameset SKUs & Descriptions Name A18 SKU# SUM Pro Frame -OR- SUM Frame SUM Chain Suck Guard 100145 SUM Bottom Bracket cover 100146 SUM Drive Side Rear Dropout 100147 SUM Rear Derailleur Hanger 100148 SUM Rear Derailleur Hanger direct mount 100149 Front Derailleur Hanger removable 81238... - Page 9 Frameset parts FK.SUMP.S-XL.352A / FK.SUMP.XXS-XS.352A -OR- FK.SUM.S-XL.353A / FK.SUM.XXS-XS.353A SUM Pro / SUM Frame FK.SUM.S-XL.353B / FK.SUM.XXS-XS.353B *Not available seperatly 100153 100156 100362 100361 100158 80811 100155 100151 100154 100147 100148 100149 81238 100145 81240 100146 100161 81242 & 81248 (screws) 80264 80804 80985...
-
Page 10: Seatpost Min. & Max. Insertion
SeatPost MIN. & MAX. insertion Saddle Height Limits (mm) Refer to the adjacent table for details on saddle height and seatpost insertion limits: Max Saddle Min Saddle Min Saddle Height Min Seatpost Seat- SIZE Seattube i. The correct frame size must be determined according to the saddle height limits. Height Height (Without cut) -
Page 11: Seatpost Assembly
SeatPost Assembly The seat post is supplied fully assembled* Loosen the two M5 x 40mm screw to allow the seat post head assembly to move. Apply a drop of blue Threadlocker (n. 242) on the M5 x 40mm screw thread. Apply Carbon paste on the curved face of the seatpost shaft Install the saddle rails into the seatpost clamp. - Page 12 SeatPost installation M8 x 10mm 12Nm 5.5Nm HT-1/4 35Nm HT-2 Apply grease on the lower angle surface of the seat post collar. Apply a drop of blue Threadlocker (n. 242) on the M3 x 6mm screw thread. Hand tighten the M3 x 6mm screw and make a 1/4 turn back, making sure the wedge (a) is allowed to slide.
-
Page 13: Rear Derailleur Hanger Installation
Rear Derailleur Hanger INSTALLATION 100147 100148 100147 100149 12Nm 5.5Nm HT-1/4 12Nm M3 x 8mm M3 x 8mm Assembling with a regular hanger: Assembling with a direct mount hanger: Assemble the rear derailleur hanger on the frame with Assemble the rear derailleur hanger (SKU: 100149) on the the Dropout DS. -
Page 14: Front Derailleur Hanger Installation
Front Derailleur Hanger INSTALLATION 81238 81240 81499 5.5Nm HT-1/4 12Nm M5 x 16mm Using a Double Chainring Set-Up: Using a Single Chainring Set-Up: Insert the plastic plug (SKU: 81240) onto the front derailleur hanger Apply grease on the thread of both M5 x 16mm screws. inserts. -
Page 15: D Headset Assembly
3d headset ASSEMBLY 100361 (25mm) Assembling 3D headset ( +15mm & +25mm ) -OR- 100362 (15mm) Insert the plastic column onto the 3D headset cup. (SKU: 100156) Sit the 3D headset (SKU: 100361 or 100362) perfectly straight on the 100156 headtube opening. -
Page 16: Frame Routing - Mechanical
FRAME ROUTING - Mechanical Foam Liner Gear Housing Guide the rear cable housing starting through the hole in the rear right chainstay all the way up to the headset opening. Pass the hausing above the bottom bracket shell. Guide the front cable housing starting through the headset opening all the way down to the bottom bracket opening under the bottom bracket shell. -
Page 17: Frame Routing - Etap
FRAME ROUTING - eTap Insert the three plug grommets onto front (2x) and rear (1x) derailleur cable holes. (80804) 80804... -
Page 18: Frame Routing - Di2
FRAME ROUTING - Di2 Di2 Wires Using as fishing cable*, guide all four Di2 wires from their respective opening to the bottom bracket opening (under the frame). Pass all the wires behind the bottom bracket shell and let them hang out the frame by the opening. - Page 19 FRAME ROUTING - Di2 Di2 Battery TIPS: Use a gear cable and a metal cable end to fix and pull the Di2 wires through the frame. 100155 80805 Wrap the battery holder around the Di2 battery. Connect the battery to the system. Insert the battery inside the seatpost shaft until the lips sits on the bottom of the shaft.
-
Page 20: Front Brake Routing
10.1 Front brake routing IMPORTANT: You have to route the front brake accordingly to which integrated headset you install. Guide the hydraulic housing through the hole in the fork's brake mount recess and pull it out from the steerer bottom hole. Guide the hydraulic housing through the hole in the fork's brake mount recess and pull it out from the steerer column top. -
Page 21: Rear Brake Routing
10.2 rear Brake routing Foam Liner Front Brake Housing Rear Brake Housing Guide the rear brake housing starting through the hole in the rear left chainstay all the way up to the headset opening. Pass the housing under the bottom bracket shell. Slide foam liners (80811) onto the brake housing until it reach the bottom bracket shell. -
Page 22: Fork Assembly
Fork ASSEMBLY 2x MR127 Apply grease onto all the surfaces where bearing sit (frame & fork) Insert the fork steerer and front brake housing through the bottom bearing (MR127). Slide the fork steerer into the frame headtube. Insert the top bearing (MR127) onto the steerer and into the frame. Pass every housing and/or wires through the top bearing. -
Page 23: Bottom Bracket Cover Installation
bOttom bracket cover installation 100146 After installing all the cables routing, insert the bottom bracket cover. -
Page 24: Routing - Acr Integrated Cockpit System
13.1 ROUTING - ACR Integrated cockpit system Gear Hausing Brake Hausing Mechanical eTap *Integrated headsets are not included in the frameset. -
Page 25: Routing - Token Integrated Cockpit System
13.2 ROUTING - token Integrated cockpit system Gear Housing Brake Housing Mechanical eTap *Integrated headsets are not included in the frameset.
