T h a n k Y o u f o r S e l e c t i n g
Operator Owner's Manual
3
ENGINE: H.P.
ENGINE: TYPE
ENGINE: FUEL CAP.
ENGINE: OIL CAP.
UNIT WEIGHT
WEIGHT: SHIPPING
MAX. ENGINE OPERATING SLOPE
The Powerful
AERATOR
AE400H & AE450
Specifications
AE400H
4.0 (2.98 kW)
HONDA OHV
2.1 qt. (2.0 L)
0.63 qt. (0.6 L)
242# (109.8 kg)
274# (124.3 kg)
20°
AE450
5.5 (4.1 kW)
BRIGGS OHV
3.0 qt. (2.84 L)
0.66 qt. (0.62 L)
244# (110.7 kg)
276# (125.2 kg)
15°
R
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Billy Goat AE400H
Summary of Contents for Billy Goat AE400H

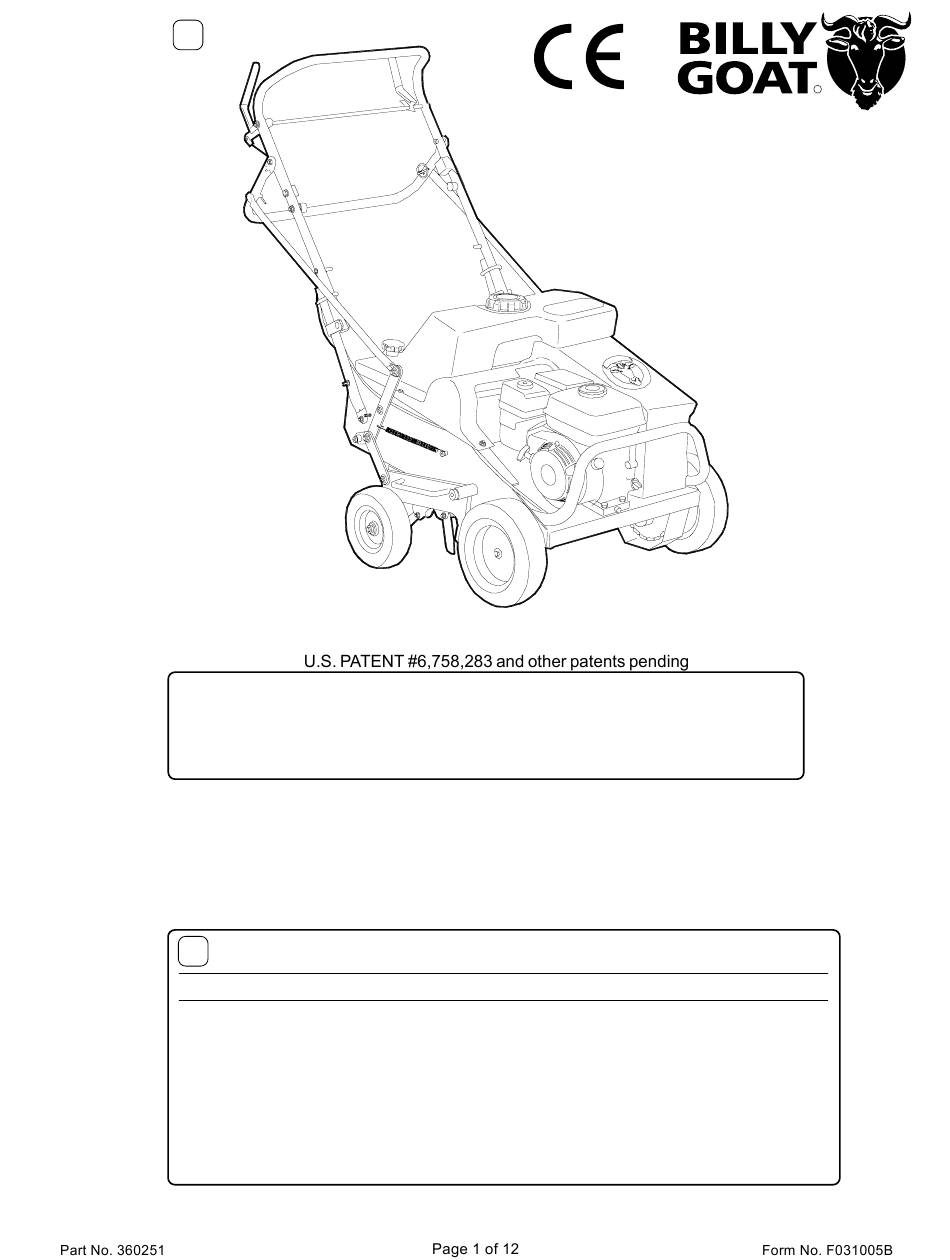

- Page 1 T h a n k Y o u f o r S e l e c t i n g The Powerful AERATOR Operator Owner's Manual AE400H & AE450 Specifications AE400H AE450 ENGINE: H.P. 4.0 (2.98 kW) 5.5 (4.1 kW)
-
Page 2: In The Interest Of Safety
IN THE INTEREST OF SAFETY BEFORE STARTING ENGINE, READ AND UNDERSTAND THE “ENTIRE OPERATOR'S MANUAL & ENGINE MANUAL.” THIS SYMBOL MEANS WARNING OR CAUTION. DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY. DO NOT DO NO WARNING: DO NOT DO NOT DO NOT... -
Page 3: General Safety
GENERAL SAFETY For your safety and the safety of others, these directions should be followed: Do not operate this machine without first reading owner's manual and engine manufacturer's manual. ·DO NOT ·DO NOT Use of Ear Protection is recommended while ·DO NOT operating this machine. -
Page 4: Instruction Labels
CONTROLS ENGINE SPEED CONTROL CHOKE STOP CLOSED INSTRUCTION LABELS These labels should be included on your Aerator. If any of these labels are damaged, replace them before putting this equip- ment into operation. Item and part numbers are given to help in ordering replacement labels. WARNING WARNING EXPLOSIVE FUEL... -
Page 5: Starting Engine
Operation INTENDED USE: TINES RAISING/LOWERING Inspect machine work area and machine before operat- ing. Make sure that all operators of this equipment are trained in general machine use and safety. STARTING ENGINE ENGINE: GEAR REDUCTION: AERATING OPERATION DO NOT- ENGINE SPEED: DO NOT- DO NOT- DO NOT-... - Page 6 OPERATION AERATOR OPERATION CON'T AERATING TIPS ENGAGE TINES: WATER: SLOPES: AERATE: NOTE: TURNING: TRANSPORT: HANDLING & TRANSPORTING CAUTION: TINE PENETRATION: REMOVE: TURNING: LIFTING: USING RAMPS:...
-
Page 7: Adjusting Handle Height
OPERATION ADJUSTING HANDLE HEIGHT UNIT STORAGE If engine is to be unused for 30 days or more, prepare as follows: NOTE: FOLDING HANDLE PARKING... -
Page 8: Parts Drawing
PARTS DRAWING AE400H & AE450 ITEM AE400H AE450 DESCRIPTION Part No. Part No. ITEM AE400H AE450 DESCRIPTION Part No. Part No. 360250 360250 360279 360279 LOOP FOLDING HANDLE 350138 350138... - Page 9 PARTS DRAWING AE400H & AE450 ITEM AE400H AE450 ITEM AE400H AE450 DESCRIPTION DESCRIPTIO N Q TY Q TY Part No. Part No. NO . Part No. Part No. WA SHER 1.062" ID X 1.75 OD 8172021 4 OR 5 8172021...
-
Page 10: Maintenance
PARTS COME TO A COMPLETE STOP. DISCONNECT SPARK PLUG WIRE BEFORE SERVICING UNIT. REPLACE ALL GUARDS, BEFORE STARTING ENGINE. USE ONLY BILLY GOAT ORIGINAL TINE ROW REPLACEMENT EQUIPMENT PARTS FOR REPLACEMENT AND REPAIR TINE ROW KIT 360197 INDIVIDUAL TINES REPLACEMENT... - Page 11 MAINTENANCE BELT AND CHAIN TENSION ADJUSTMENT DRIVE BELT REPLACEMENT ADJUSTING BELT TENSION- CHAIN REPLACEMENT NOTE: This procedure will work to change the wheel drive chain or the tine drive chain. ADJUSTING CHAIN TENSION- Maintenance Schedule Maintenance Operation...
-
Page 12: Troubleshooting
WARRANTY PROCEDURE 22.1 Contact your nearest engine manufacturer's Should a Billy Goat Machine fail due to a defect in material and/or authorized servicing dealer. (See above) workmanship, the owner should make a warranty claim as follows: ecord your machine model, serial number and...
