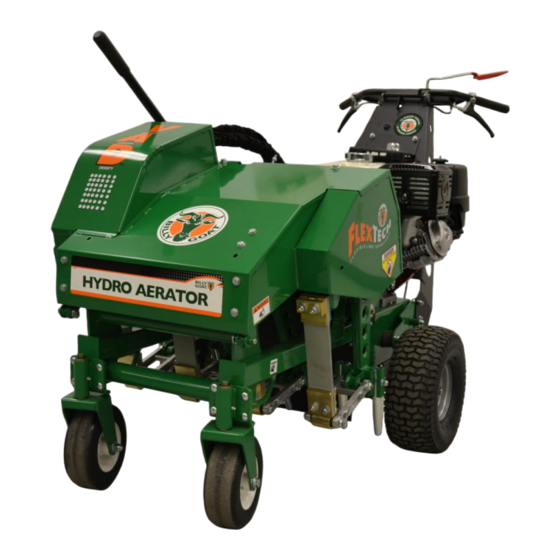

AE1300HEU Owner's Manual
HYDRO AERATOR Owner's Manual
FOAM TIRES
Reduces chance for flat
tires and also adds
weight to the machine
P/N 362601
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
Part No 362511
AE1300HEU
Beginning Serial #: 020216001
Accessories
SOLID SPIKE TINE
Complete set of spike
tines for the AE's arms.
P/N 360611
Original Instructions
1
TINE KIT
Individual coring tine for
replacement of worn or
broken tines.
P/N 360100
Form No F020216B

Advertisement

loading
Need help?

Need help?

Do you have a question about the AE1300HEU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billy Goat AE1300HEU

Summary of Contents for Billy Goat AE1300HEU

  • Page 1 AE1300HEU Owner’s Manual HYDRO AERATOR Owner's Manual AE1300HEU Beginning Serial #: 020216001 Accessories FOAM TIRES SOLID SPIKE TINE TINE KIT Reduces chance for flat Complete set of spike Individual coring tine for tines for the AE’s arms. tires and also adds...

  • Page 2: Table Of Contents

    AE1300HEU Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/VIBRATION INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE TROUBLESHOOTING ILLUSTRATED PARTS & PARTS LIST 11-23 DECLARATION OF CONFORMITY 24-26 Part No 362511 Form No F020216B...
  • Page 3 AE1300HEU Owner’s Manual SPECIFICATIONS AE1300HEU Engine: HP 13 (9.7 kW) Engine: Model GX390UTQA2 Engine: Type Honda OHV Engine: Fuel Capacity 6.4qt. (6.1 L) Engine: Oil Capacity 1.16 qt. (1.1 L) Total Unit Weight: 529# (240 Kg) Max. operating slope Sound test in accordance...

  • Page 4: Instruction Labels

    INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Aerator. If any labels are damaged or missing, replace them before operating this equipment. Part numbers from the Illustrated Parts List are provided for convenience in ordering replacement labels.

  • Page 5: Packing Checklist & Assembly

    AE1300HEU Owner’s Manual PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. PUT OIL IN ENGINE BEFORE STARTING PARTS BAG &...
  • Page 6 AE1300HEU Owner’s Manual CONTROLS Operator Presence Tine Engage Lever On/Off Switch Reverse Drive Lever Forward Drive Lever Pull Start Parking Brake Part No 362511 Form No F020216B...

  • Page 7: Operation

    AE1300HEU Owner’s Manual OPERATION AERATING OPERATION NOTE: NEVER PARK THIS UNIT ON A SLOPE OF ANY KIND. Always keep tines in the up position when parking the unit. TINES RAISING/LOWERING: The tines are raised or lowered into the ground by operating the tine engagement lever on the right of the machine.

  • Page 8: Maintenance

    Remove filter by un-screwing counter-clockwise from filter base. When replacing filter (Billy goat P/N 362396), it is recommended to spread a thin coat of oil on the rubber gasket of the filter prior to re-installing.
  • Page 9 AE1300HEU Owner’s Manual NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 12-23. INDIVIDUAL TINE REPLACEMENT (See page 14 and 15 for Parts Illustration and Parts list) While it is possible to replace only one tine at a time, it is recommended to replace tines in pairs on a tining arm.
  • Page 10 AE1300HEU Owner’s Manual DRIVE BELT REPLACEMENT (See page 12 and 13 for Parts Illustration and Parts list) READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Disconnect spark plug wire. Loosen four screws (item 112) holding belt cover (item 10) and remove the cover.

  • Page 11: Troubleshooting

     The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. ...
  • Page 12 AE1300HEU Owner’s Manual AE1300HEU PARTS DRAWING ENGINE 26 12 255 256 Part No 362511 Form No F020216B...
  • Page 13 AE1300HEU Owner’s Manual AE1300HEU PARTS LIST ENGINE Item No. Part No. Description 362602 ENGINE BASE WA 430366 ENGINE HONDA GX390 13 HP 362225 PUMP PK 12cc VARIABLE DISPLACEMENT 362327 GUARD BELT AE900 362337 BELT HP GP AMD EFF. LENGTH 64.04"...
  • Page 14 AE1300HEU Owner’s Manual AE1300HEU PARTS DRAWING TINE 71 30 108 137 Part No 362511 Form No F020216B...
  • Page 15 AE1300HEU Owner’s Manual AE1300HEU PARTS LIST TINE Item No. Part No. Description Item No. Part No. Description 362212 RING RETAINING EXTERNAL 1.00" 362605 HOOD AE900 362606 TINE ARM ASSY RIGHT AE900H SERVICE 610305 NUT LOCK 1/2" - 20 THIN 362603...
  • Page 16 AE1300HEU Owner’s Manual AE1300HEU PARTS DRAWING DRIVE 249 130 Part No 362511 Form No F020216B...
  • Page 17 AE1300HEU Owner’s Manual AE1300HEU PARTS LIST DRIVE Item No. Part No. Description 362100 ENGINE BASE WA 362352 WHEEL 15" X 6.00 - 6 TURF SAVER 362106 CAM SPEED CONTROL WA AE900 362329 BRACKET TRANSAXLE MOUNT 362107 BRACKET CASTER WA AE900...
  • Page 18 AE1300HEU Owner’s Manual AE1300HEU PARTS DRAWING HANDLE Part No 362511 Form No F020216B...
  • Page 19 AE1300HEU Owner’s Manual AE1300HEU PARTS LIST HANDLE Item No. Part No. Description 362602 ENGINE BASE WA 362604 HANDLE WA 362134 TANK OIL WA AE900H 362396 FILTER SPIN ON 362119 BRACKET LH HANDLE MOUNT WA 351209 MAGURA CONTROL 362267 BAIL ASSY AE900...
  • Page 20 AE1300HEU Owner’s Manual AE1300HEU PARTS DRAWING LIFT Part No 362511 Form No F020216B...
  • Page 21 AE1300HEU Owner’s Manual AE1300HEU PARTS LIST LIFT Item No. Part No. Description 362602 ENGINE BASE WA 362410 HANDLE TINE WA 362223 BEARING LIFT 362259 BRACKET HANDLE SUPPORT 500267 GRIP HANDLE 1" X 5.5" 362108 TINE FRAME LIFT SHAFT WA 362245 BEARING AND FLANGETTE ASSY .75"...
  • Page 22 AE1300HEU Owner’s Manual AE1300HEU PARTS DRAWING PUMP Hydraulic Schematic Part No 362511 Form No F020216B...
  • Page 23 AE1300HEU Owner’s Manual AE1300HEU PARTS LIST PUMP Item No. Part No. Description 362225 PUMP PK 12cc VARIABLE DISPLACEMENT 362233 MOTOR TINE DRIVE 362279 HOSE HYDRAULIC W#10 JIC 890359 SCREW SELF TAP 1/4" - 20 X 5/8" HWH TYPE F 8041032 SCREWCAP 3/8"...

  • Page 24: Declaration Of Conformity

    AE1300HEU Owner’s Manual Руccкий Latviešu English Suomi Slovenščina български език Français Nederlands Čeština Slovák Ελληνικά Norsk Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Română Español Italiano Lietuvių eesti keel Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EC Declaration of Conformity Декларация...
  • Page 25 AE1300HEU Owner’s Manual Directive: 2006/42/EC Irányelv: 2006/42/EC Diretiva: 2006/42/EC Директива: 2006/42/EC Οδηγία: Директива: 2006/42/EC 2006/42/EC Směrnice č. 2006/42/EC Direktiva: 2006/42/EC Directiva: 2006/42/EC Direktiv: 2006/42/EF Direttiva: 2006/42/EF Direktiva: 2006/42/EF Richtlinie: 2006/42/EG Direktyva: 2006/42/EG Smernica: 2006/42/EG Direktīva: Directriz: 2006/42/EC 2006/42/EC Direktiv: 2006/42/EC Direktiiviga: 2006/42/EÜ...
  • Page 26 AE1300HEU Owner’s Manual Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Място на производство / Архивар przechowywanie dokumentów τεκμηρίωσης Místo výroby / Držitel dokumentace Gyártás helye / A dokumentáció őrzője Local de Fabrico / Responsável pela Documentação...

This manual is also suitable for:

020216001
