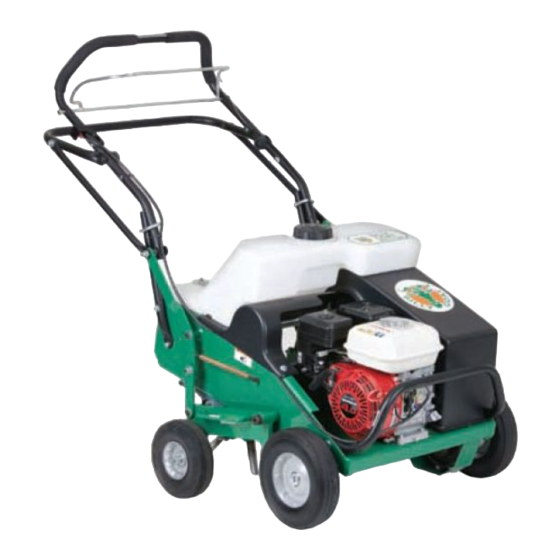

AE401 Owner's Manual
TINE REEL KIT
Replacement reel with
tines for your aerator.
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
Part No 360390 (C)
AERATOR Owner's Manual
AE401H, AE401V
Beginning Serial #: 100515001
Replacement Parts and Accessories
SOLID SPIKE TINE
Complete set of spike
tines for the AE's reel.
P/N 360352
Original Instructions
Individual coring tine for
replacement of worn or
broken tines.
P/N 360394-S
1
TINE KIT
P/N 360100
Form No F100515A
Advertisement
Related Manuals for Billy Goat AE401V
Summary of Contents for Billy Goat AE401V

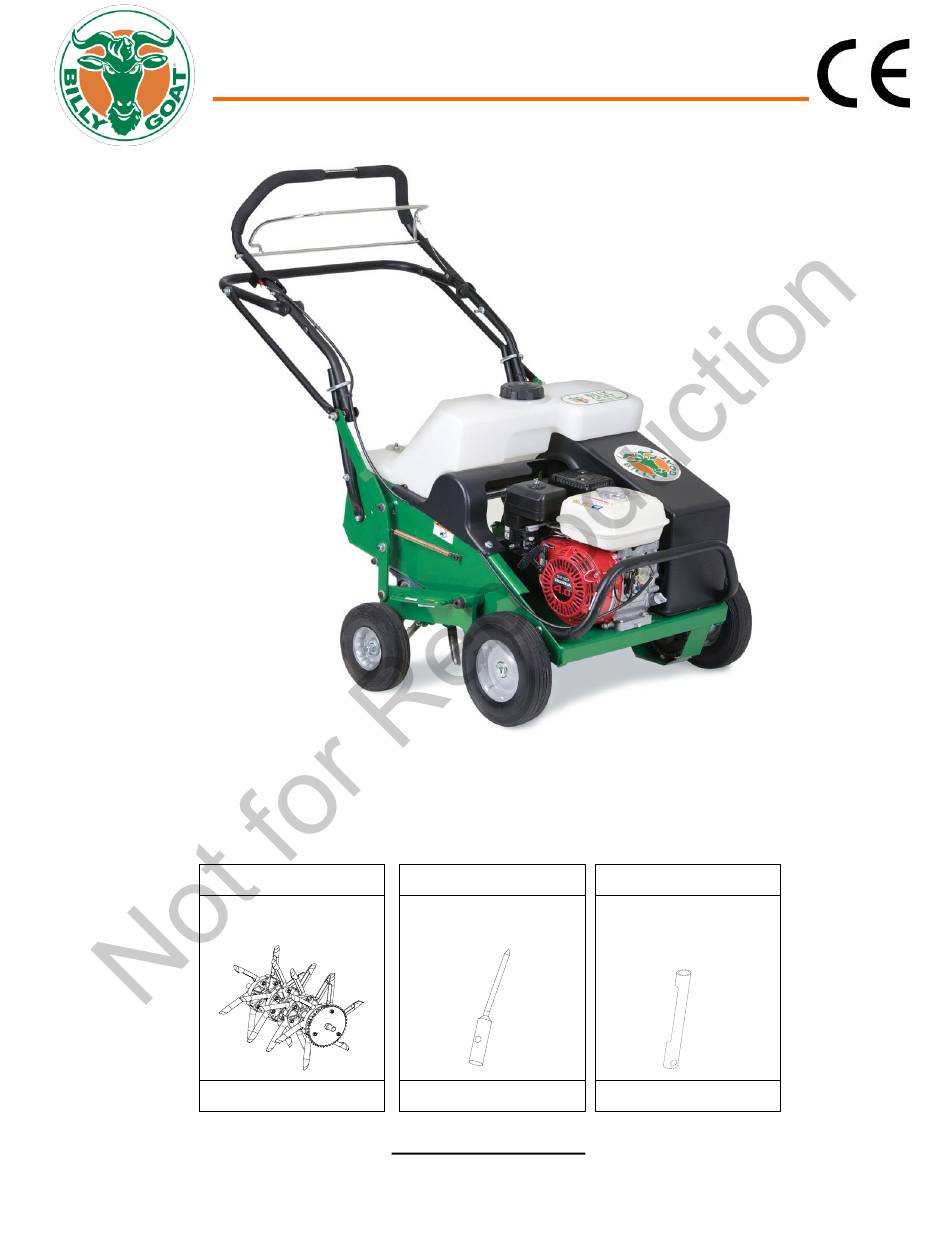

- Page 1 AE401 Owner’s Manual AERATOR Owner's Manual AE401H, AE401V Beginning Serial #: 100515001 Replacement Parts and Accessories TINE REEL KIT SOLID SPIKE TINE TINE KIT Replacement reel with Complete set of spike Individual coring tine for tines for your aerator. replacement of worn or tines for the AE’s reel.
-
Page 2: Table Of Contents
AE401 Owner’s Manual CONTENTS SPECIFICATIONS AND SOUND/VIBRATION INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE AND TROUBLESHOOTING ILLUSTRATED PARTS & PARTS LIST 10-13 DECLARATION OF CONFORMITY 14-16 Go to http://www.billygoat.com for translations of the product manuals. Visitez http://www.billygoat.com pour la version canadienne-française des manuels de produits Part No 360390 Form No F100515A... -
Page 3: Specifications And Sound/Vibration
AE401 Owner’s Manual SPECIFICATIONS AE401H AE401V Engine: HP 4.0 (2.98 kW) 5.5HP (4.1 Kw) Engine: Model GX120K1HX2 GX120K1HX2 Engine: Type HONDA OHV B&S VANGUARD Engine: Fuel Capacity 2.1 qt. (2.0 L) 3.0 qt. (2.84 L) Engine: Oil Capacity 0.63 qt. (0.6 L) 0.66 qt. -
Page 4: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Aerator. If any labels are damaged or missing, replace them before operating this equipment. Part numbers from the Illustrated Parts List are provided for convenience in ordering replacement labels. -
Page 5: Packing Checklist & Assembly
AE401 Owner’s Manual PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. PUT OIL IN ENGINE BEFORE STARTING PARTS BAG &... -
Page 6: Operation
AE401 Owner’s Manual OPERATION AERATING OPERATION NOTE: NEVER PARK THIS UNIT ON A SLOPE OF ANY KIND. Always keep tines in the up position when parking the unit. TINES RAISING/LOWERING: The tines are raised or lowered into the ground by operating the tine engagement lever on the upper handle. -
Page 7: Maintenance And Troubleshooting
AE401 Owner’s Manual MAINTENANCE PERIODIC MAINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use Every 25 hrs Every 50 Hours (daily) Inspect for loose, worn or damaged parts. Check engine oil. Inspect belt for wear. ... - Page 8 AE401 Owner’s Manual 4. TO INCREASE belt tension adjust these two nuts so that the cable (item 55) is secured in place with an additional 1/4" of the threaded adjuster at the top of the assembly. TO DECREASE belt tension, adjust these two nuts so that the cable (item 55) is secured in place with 1/4" less of the threaded adjuster at the top of the assembly.
- Page 9 AE401 Owner’s Manual LUBRICATION (See pages 12 and 13 for Parts Illustration and Parts List) BEARINGS 1. Remove the top guard by removing the four nuts, two on each side that secures it to the frame. NOTE: Guard must be removed to lubricate the jackshaft bearings only.
-
Page 10: Illustrated Parts & Parts List
AE401 Owner’s Manual AE401 HANDLE PARTS DRAWING Part No 360390 Form No F100515A... - Page 11 AE401 Owner’s Manual AE401 HANDLE PARTS LIST ITEM AE401H AE401V DESCRIPTION Part No. Part No. FRAME ASSEMBLY WA AE402 360324 360324 WATER TANK 5.5 GAL 360238 360238 GUARD DRIVE COVER 360280 360201 WASHER 5/16 FENDER 8172020 8172020 NUT LOCK 3/8-16...
- Page 12 AE401 Owner’s Manual AE401 ENGINE PARTS DRAWING Part No 360390 Form No F100515A...
- Page 13 AE401 Owner’s Manual AE401 ENGINE PARTS LIST ITEM AE401H AE401V DESCRIPTION Part No. Part No. FRAME ASSEMBLY WA AE402 360324 360324 BEARING 3/4" PILLOW BLOCK 350133 350133 CARRIAGE BOLT 3/8-16 x 1 1/2 8024060 8024060 FRONT AXLE ASSY 360332 360332 KEY SQUARE 3/16 x 3/16 x 1.25...
-
Page 14: Declaration Of Conformity
AE401 Owner’s Manual Руccкий English Suomi Latviešu Slovenščina Français Nederlands български език Slovák Norsk Čeština Ελληνικά Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Español Italiano Română eesti keel Lietuvių EC Declaration of Conformity Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EU Megfelelőségi nyilatkozat Декларация... - Page 15 Seviyesi AE401 100 dB(A) 99 dB(A) 79 dB(A) 2.98 kW 2.97 m/s 110 kg AE401V 100 dB(A) 99 dB(A) 79 dB(A) 4.1 kW 2.97 m/s 110 kg (1) ISO 5395-1:2013 F.7 (EN 4871:1996) (2) ISO 5395-1:2013 G.8 (EN 12096:1997, D.1)
- Page 16 AE401 Owner’s Manual Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Място на производство / Архивар przechowywanie dokumentów τεκμηρίωσης Místo výroby / Držitel dokumentace Local de Fabrico / Responsável pela Documentação Gyártás helye / A dokumentáció...
