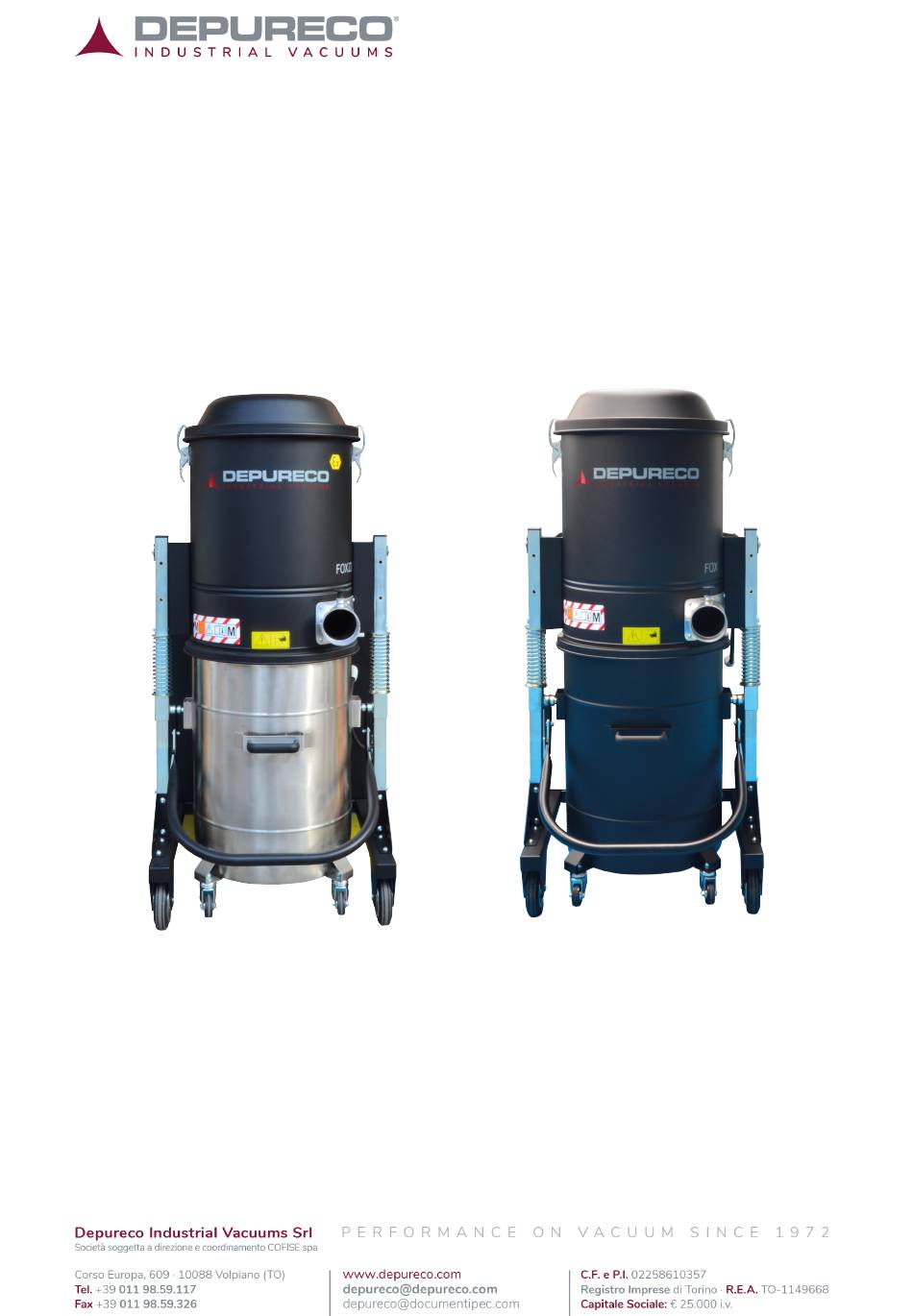

- Page 1 INSTRUCTION AND MAINTENANCE MANUAL SERIES TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS: INFORMATION SECTION ............................. 3 1.1 Introduction ....................4 1.2 Identification of the main parts ..............6 1.3 Optional parts .................... 7 1.4 Manufacturer’s identification data .............. 7 1.5 Identification plate ..................7 1.6 Atex marking ....................8 1.7 Intended uses .................. -
Page 3: Information Section
IMPORTANT - The DEPURECO term and logo in this document refer to and are the property of DEPURECO INDUSTRIAL VACUUMS S.r.l. This document is the sole property of DEPURECO S.r.l. Therefore its reproduction with any means (graphic, digital, etc.), whether partially or wholly, is prohibited without authorisation from Management. -
Page 4: Introduction
Introduction Dear Customer, thank you for choosing DEPURECO and purchasing a DEPURECO FOX series vacuum cleaner We have prepared this manual so that you can appreciate the quality of this machine. Please read it through before using the vacuum cleaner for the first time. - Page 5 This manual is an integral part of the vacuum cleaner and must accompany it throughout its service life, until it is scrapped. If it is lost or damaged, ask DEPURECO INDUSTRIAL VACUUMS S.r.l. (hereinafter simply known as DEPURECO) for a replacement copy.
-
Page 6: Identification Of The Main Parts
Identification of the main parts 1) Cover 2) Filter chamber 3) Suction inlet 4) Bin 5) Lifting handle 6) Frame 7) Pump protection casing 8) Pump silencer 9) Electrical panel (if applicable) -
Page 7: Optional Parts
Corso Europa 609 - 10088 Volpiano (TO) - ITALY tel. +39 011 98 59 117 - fax +39 011 98 59 326 | VAT no. 02258610357 e-mail: depureco@depureco.com - website: www.depureco.com Identification plate For any communication with the manufacturer or the dealer, always specify the data given on the... -
Page 8: Atex Marking
Atex marking Marking for appliance suitable to contain an area classified as ZONE 20 indoors and suitable for use in an outdoor area classified as ZONE 22: Manufacturer ..Address ………. Appliance … 2261 Serial no....II 1/3 D Ex htc IIIC T140°C Da/Dc -15°C ≤... - Page 9 ATEX marking data: : CE marking referring to ATEX Directive 2014/34/EU (Dir. 94/9/EC until 04/19/2016) 2261: identification of the body that carried out the check on the product (2261 = TÜV CYPRUS); : EX hexagon: compliance with ATEX Directive 2014/34/EU (Dir. 94/9/EC until 04/19/2016) II: Appliance group (I: electrical appliances for mines, II: electrical appliances for surfaces)
-
Page 10: Intended Uses
Intended uses These vacuum cleaners are built and designed in compliance with Directive 2014/34/EU (ATEX) for industrial use only; nevertheless, for purposes other than normal household ones. This vacuum cleaner is suitable for cleaning and collecting solid materials and only in covered environments. -
Page 11: Technical Data
1.10 Technical data FOX STD FOX 3 FOX 5,5 FOX 7,5 FOX 10 Weight* [Kg] Overall [mm] 660x1200x1510 850x1500x1980 dimensions** Voltage / [V]- [Hz] 400 I 50/60 Frequency Power [kW- 2.2 – 3 4 – 5.5 5.5 – 7.5 7.5 – 10 Maximum [mBar] 250-430... - Page 12 FOX ATEX FOX 3 FOX 5,5 FOX 10 Weight* [Kg] Overall [mm] 660x1200x1510 660x1202x1830 dimensions** Voltage / [V]-[Hz] 400 I 50/60 Frequency Power [kW- 2.2 – 3 Maximum [mBar] 225-270 250-360 depression Continuous [mBar] depression Air flow rate [m³/h] 280-304 414-420 663-720 Surface...
-
Page 13: Warranty
DEPURECO is not liable for any damages to people or property caused by poor or imperfect use of the vacuum cleaner. -
Page 14: Safety Section
Adequate training is a fundamental requirement. DEPURECO will not be held liable for any accidents or damages resulting from the vacuum cleaner being used by untrained staff or being used improperly, or from failure to observe, even partially, the accident prevention regulations and intervention procedures in this manual. -
Page 15: Safety Requirements
Structural damage, modifications, alterations or improper repair can change the protection features of the vacuum cleaner and thus invalidate this certification and exclude any liability by DEPURECO. Each section contains a list of additional safety requirements specific for the different operations. - Page 16 To use hoses with earth wire that is not anti-static (an anti-static surface alone is not permitted). Always use original DEPURECO accessories. Use an ohmmeter to check electrical continuity: 1. between the suction inlet and the terminal of suction accessories: the resistance measured must be less than 100MΩ...
-
Page 17: Plates And Safety Symbols
This manual must always be available for consultation on the expected operating cycle and whenever any doubts arise. If it is lost or damaged, you must ask DEPURECO for a replacement copy. Plates and safety symbols Plates bearing safety symbols and/or messages are applied to the vacuum cleaner and the packaging. -
Page 18: Residual Risks
It is strictly forbidden to take the safety plates off the vacuum cleaner and/or its components and off the packaging. DEPURECO disclaims any liability for the safety of the vacuum cleaner in the event of failure to comply with this prohibition. -
Page 19: Atex Safety Instructions
ATEX safety instructions Ex Hexagon – ATEX Directive 2014/34/EU In this manual the Ex hexagon is next to the main safety instructions concerning the risk of explosion. All staff involved in the installation, use and maintenance of the appliance and its components should receive technical training for the tasks to be carried out, particularly for working in areas with a potentially explosive atmosphere. - Page 20 The user must ensure that the appliances are used according to their intended use, namely that they are employed in ZONES classified as compatible with the zones for which said appliances are declared suitable by the manufacturer. The appliance is designed to work in standard environmental conditions: •...
- Page 21 The user must ensure that the plant in which the appliance is to be installed has been adequately safeguarded against explosion before being started and that the “Explosion protection document” has been prepared as required by ATEX Directive 1999/92/EC (Italian Ministerial Decree 81-2008). IT IS FORBIDDEN TO INTRODUCE (VACUUM) IGNITION SOURCES FROM OUTSIDE...
- Page 22 The manuals for the ATEX components fitted on the appliance are enclosed: the user must observe all the safety instructions relating to the use of these components. The appliance must be cleaned by the user to prevent the formation of combustible dust. Do not use compressed air to clean the layers of dust, but use appropriate vacuuming systems for handling potentially explosive dust (ATEX certified vacuum cleaners).
- Page 23 The building where the appliance is used must have a lightning protection system. There must not be any sources of ignition close to the appliance, for example: - flames; - embers; - hot surfaces; - sparks (e.g. from metal cutting); - stray currents and cathodic protection systems;...
-
Page 24: Directives Applied
2014/35/EU – Low voltage directive 2014/34/EU - ATEX directive The regulatory references, including mandatory requirements, are managed in the Quality Management System and archived at DEPURECO 3 HANDLING, UNPACKING AND INSTALLATION SECTION Handling Attention! The instructions on how to transport and unpack the vacuum cleaner correctly are indicated on the packaging as well. -
Page 25: Unpacking
When lifting the load, take into consideration the height of the work environment. Before starting to move, make sure that the passageway is clear and there are no moving objects on the packaging. For lifting and handling, apply the accident prevention laws in force and the normal handling instructions for forklift trucks. -
Page 26: Installation
If any of the components are damaged, it is essential not to continue with installation but to report the anomaly found to DEPURECO and reach an agreement on the actions to be carried out. A suction filter, for the sole vacuuming of dry dusts or debris, is already fitted on the vacuum cleaner Pull the knob up (A) and insert the hose with its terminal into the suction inlet (detail 3, chapter 1.2) - Page 27 Note: the hose with its terminals and suction accessories are not included in the STANDARD equipment. Contact your authorised DEPURECO dealer for information on the different types of OPTIONAL accessories that can be used for this specific vacuum cleaner model.
-
Page 28: Operation Section
4 OPERATION SECTION Description of the controls Attention! Only authorised staff who have read these use and maintenance instructions are allowed to use the vacuum cleaner. The appliance user and the maintenance technician who carry out the permitted operations on the vacuum cleaner must receive appropriate information and training, as required by current laws on safety in the workplace, and wear the personal protective equipment (PPE) provided for the different operations, such as safety footwear, gloves, safety goggles, mask, etc. -
Page 29: Work Cycle
Work cycle Make sure the power supply cable is undamaged and in perfect condition Attention! Before plugging into the power socket, make sure that the voltage of the power supply line matches the one indicated on the data plate of the appliance. - Page 30 Warning! Before turning on the vacuum cleaner again, make sure that the pump has stopped completely. At the end of the work, turn the main switch (1) to “0”. Attention! If dust comes out of the silencer, the filter may have broken. Stop the vacuum cleaner immediately and find out.
- Page 31 When the filter is clogged, the vacuum gauge shows the value in the following table. Model Clogged filter value FOX 3 Z22 -0.23 bar -23 kPa FOX 5,5 P Z22 -0,13 bar -13 kPa FOX 5,5 S Z22 -0.36 bar -36 kPa FOX 7,5 P Z22 -0,20 bar...
-
Page 32: Emptying The Container
Lock the knob again to shake the internal filter. Attention! If the vacuum gauge still indicates an irregular depression, the hose or the suction accessory may be clogged. In this case, remove the clog to clean it. Vacuum cleaner with Reverse Pulse cleaning system (S.P.) The vacuum cleaner must be connected to the compressed air with a maximum pressure of 6 bar to the filter regulator (see §... -
Page 33: Inserting And Locking The Debris Container
Pull the container out from under the filter chamber by its handles Empty the debris into the waste disposal container If a plastic bag is used to collect the debris, replace as follows: After removing the container, tie the bag, take it out and insert a new bag Attention! If the container or bag weighs more than 15 kg, you will need the help of At least one more person. -
Page 34: Storage - Decommissioning
The pins (A) on both sides must be aligned with the slots (B) Attention! Danger of crushing upper limbs! Never insert hands between the container and the vacuum cleaning when locking it Storage - decommissioning Remove the filter and clean it, empty the debris collection container or remove the part of the bag with the debris and store the vacuum cleaner in a place sheltered from adverse weather with a temperature between 0°... -
Page 35: Maintenance Section
5 MAINTENANCE SECTION Attention! Emergency maintenance must be carried out on the vacuum cleaner only by specialised technicians authorised by DEPURECO. Information notes This section contains a description of the routine inspection and maintenance operations essential to ensure smooth operation of the vacuum cleaner. -
Page 36: General Safety Standards
General safety standards Attention! All of the operations described must be carried out with the mains plug unplugged. Before starting any maintenance or cleaning operation, wear suitable PPE (protective clothing, safety goggles and/or gloves, etc.) for the work to be carried out. -
Page 37: Replacing The Filter
Before each work shift Check that the power cable and plug are undamaged: replace immediately if there are signs of wear and tear, using a cable of the same type (information c/o DEPURECO); this is the exclusive responsibility of an electrician. - Page 38 Release the latches (C) closing the cover on both sides Disconnect the suction hose (D) by unscrewing the clamp with an Allen key Remove the cover (E) Remove the HEPA filter (where provided) Take the filter out (F) and place it all on a workbench. Loosen the clamp (H), take the filter out of its holder and cut the inner strips holding it in place with a pair of scissors.
- Page 39 When replacing the filter, make sure that the equipotential bonding braid is connected correctly Remove the filter, put it in a plastic bag, close it and dispose of it according to the laws in force for the type of material vacuumed Refit the filter as follows: Fit the filter in its holder ring and lock it with the clamp (H) Lock the filter to the holder cage by tying the strips...
-
Page 40: Replacing Cartridges On Reverse Pulse Cleaning Systems (S.p.)
Connect the compressed air to the valve fitting (A) Plug the vacuum cleaner in Turn the vacuum cleaner on and immediately check that it is working properly. Replacing cartridges on reverse pulse cleaning systems (S.P.) Replace the filter cartridges for the S.P. cleaning system as follows: Turn the main switch to “O”... - Page 41 Release and lift the HEPA filter (where provided) Release the S.P. cleaning system from the latches and, with the help of a second person, lift it off the filter chamber, turn it upside down and place it on a workbench Remove and unscrew the nuts from the base of the cartridges Pull out and replace the filter cartridges remove the cartridges, put them in a plastic bag, close it and dispose...
- Page 42 To refit the filter cartridges, follow the above in reverse order: Insert the new cartridges and screw on the nuts, ensuring that they are fixed correctly With the help of a second person, place the S.P. system on the filter chamber and lock it with the latches position the H filter (where provided) and lock it in place with the latches Make sure the ILME plug (E) is plugged in correctly before continuing with any...
-
Page 43: Replacing The Hepa Cartridge (Where Provided)
Position the vacuum cleaner head on top of the H filter band and lock it with latches Connect the vacuum cleaner to the power supply turn the vacuum cleaner on and immediately check that it is working properly ONLY USE ORIGINAL DEPURECO FILTERS... -
Page 44: If Something Doesn't Work
Check the socket and power supply cable to make sure they are intact The vacuum cleaner does not No power start Contact the DEPURECO technical assistance service Shake the filter. Clogged filter If this is not enough, replace it. The vacuum gauge indicates... -
Page 45: Scrapping
Scrapping This product falls under the scope of application of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The appliance must not be eliminated with household waste as it is made up of different materials that can be recycled at the appropriate structures. Ask the municipal authority for the location of suitable ecological platforms that can receive the product for disposal and then correctly recycle it. - Page 46 MAINTENANCE REGISTER: INTERVENTION 1: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 2: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
- Page 47 INTERVENTION 3: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION: INTERVENTION 4: DATE: TECHNICAL ASSISTANCE: TYPE OF INTERVENTION:...
