1. Description

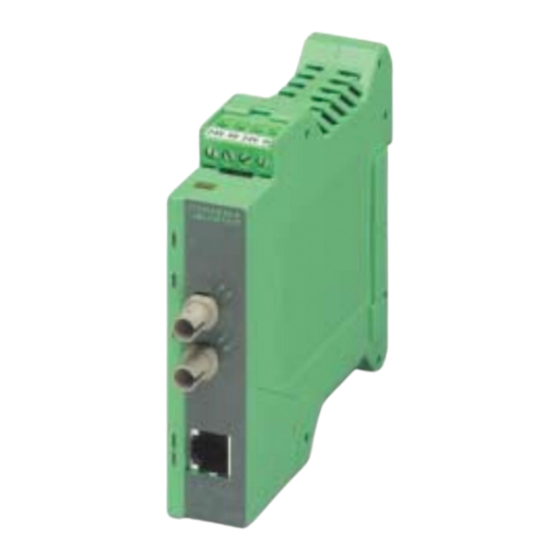

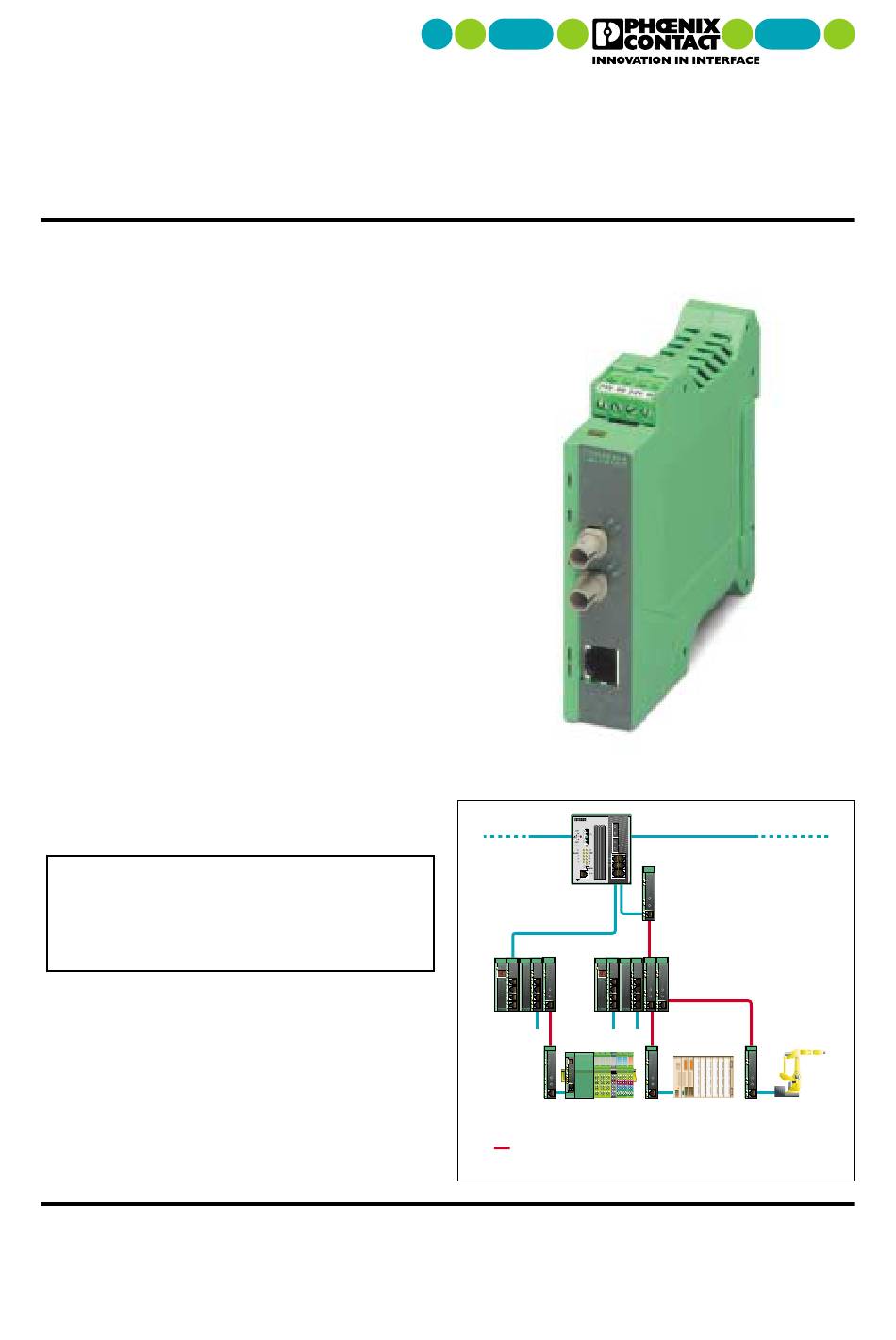

The FL MC 10BASE-T/FO G850 medium converter
provides a high level of noise immunity and a long
transmission range in industrial applications by
converting the 10 BASE-T Ethernet interface to optical
fibers.
The device can be operated individually as well as in
modular hub stations. The supply voltage is 24 V DC.
In FL hub stations, the supply voltage is supplied to all
the connected devices via a backplane integrated in
the base of the device. In individual operation, the
supply is provided using plug-in screw-clamp
terminals.
The converter has a link monitoring function, which
separately indicates/monitors the operability of the
cable connection and the connected devices for the TP
and optical fiber channels. It also automatically detects
pairs of incorrectly connected receiving cables at the
TP connection and corrects them using the auto
polarity correction function.
If long distances are to be covered or if an existing
glass fiber installation is used, the FL MC 10BASE-T/
FO G850 converter covers distances up to 2800 m
(9186.35 ft.) using multimode glass fiber. The
connection corresponds to the ST® (B-FOC) standard.
The medium converter conforms to the
specifications of standards IEEE 802.3 and ISO/IEC
68802.3.
Should you have any technical questions, please
contact us:
PSM HOTLINE: +49 - 52 35 - 31 98 90
FAX: +49 - 52 35 - 31 98 99
E-mail: interface-service@phoenixcontact.com
®
ST is a registered trademark of AT&T.
