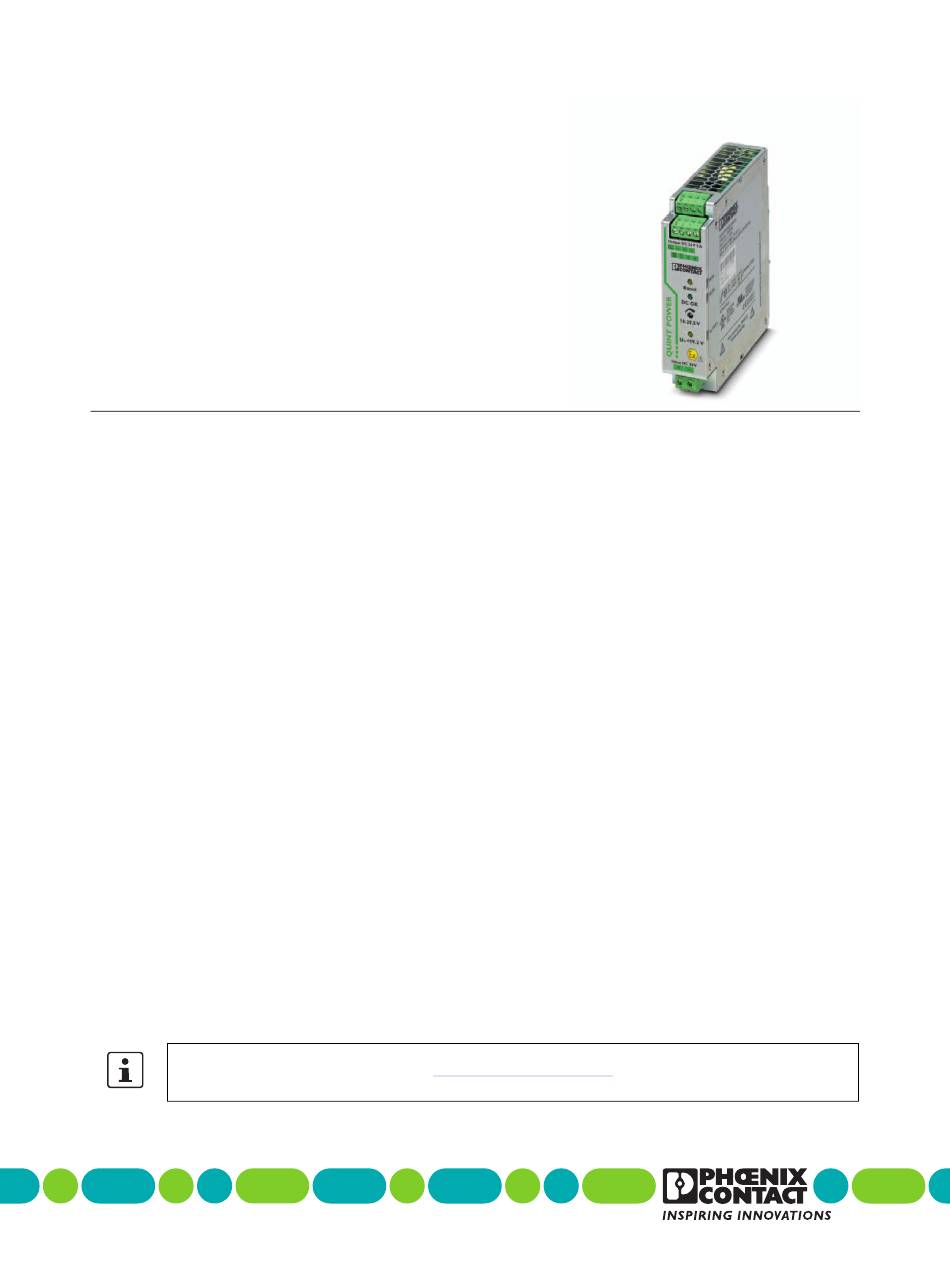

QUINT-PS/24DC/24DC/ 5/CO
DC/DC converter with SFB technology, dip-coated,
primary-switched, input: 24 V DC, output: 24 V DC,
output current: 5 A
Data sheet
105537_en_02
1

Description

QUINT DC/DC converter – superior system availability from
SFB technology
Compact DC/DC converters from the new QUINT POWER
generation maximize your system availability. With SFB
technology (Selective Fuse Breaking Technology), 6-fold
nominal current for 12 ms, it is possible to trigger even
standard circuit breakers reliably and quickly. Faulty current
paths are switched off selectively, the fault is located, and
important system parts remain in operation. Comprehensive
diagnostics are provided through constant monitoring of the
input voltage, output voltage and output current. Preventive
function monitoring visualizes critical operating states and
indicates them to the controller before errors can occur.
The application fields for DC/DC converters are numerous
Changing the voltage level
Refreshing the output voltage for constant voltage at
the end of long cables
Setup of independent supply systems by electrical
isolation
Make sure you always use the latest documentation.
It can be downloaded from the product at phoenixcontact.net/products.
© PHOENIX CONTACT
2017-07-28
Features
Wide-range voltage input
Galvanic isolation
Reverse polarity protection
Preventive function monitoring
Reliable starting of difficult loads with POWER BOOST
static power reserve
Fast tripping of standard circuit breakers with dynamic
SFB technology power reserve
High MTBF > 890000 h (40 °C)
Flexible use
Dip coating enables use in oxidizing and sulfidizing
atmospheres with humidities of up to 100 %
Adjustable output voltage
Can be used in Class I, Division 2, Groups A, B, C, D
(Hazardous Location) ANSI-ISA 12.12
