QUINT4-PS/48-110DC/24DC/2.5/
PT
DC/DC converter
Data sheet
110261_en_00
1

Description

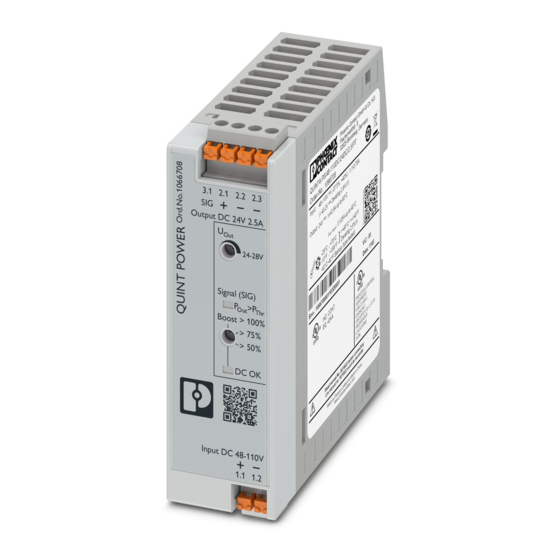

QUINT POWER power supplies are exceptionally small yet
offer superior system availability in the sub 100 W power
range.
Powerful
Static boost of up to 125% (P
Dynamic boost of up to 200% (P
Space-saving
Slim design
Slim design for 120 mm control boxes
Preventive
Function monitoring through adjustable signaling of
power thresholds or output voltage
Flexible connection technology
Tried-and-tested screw connection
Fast Push-in connection
Durable
Efficiency up to 92%
Low power dissipation
All technical specifications are nominal and refer to a room temperature of 25 °C and 70% relative humidity at
100 m above sea level.
© PHOENIX CONTACT
) for a sustained period
N
) for 4.9 s
N
2021-08-03
Technical data (short form)
Input voltage range
Mains buffering
Nominal output voltage (U
)
N
Setting range of the output voltage
(U
)
Set
Nominal output current (I
)
N
Static Boost (I
)
Stat.Boost
Dynamic Boost (I
)
Dyn.Boost
Output power (P
)
N
Output power (P
)
Stat. Boost
Output power (P
)
Dyn. Boost
Efficiency
Residual ripple
MTBF (IEC 61709, SN 29500)
Ambient temperature (operation)
Dimensions W/H/D
Weight
48 V DC ... 110 V DC
-37,5 % ...+40 %
typ. 14 ms (48 V DC)
24 V DC
24 V DC ... 28 V DC
2.5 A
3.125 A (≤ 40 °C)
5 A (≤ 60 °C (4,9 s))
60 W
75 W
120 W
typ. 93.7 % (110 V DC)
< 20 mV
PP
> 618000 h (40 °C)
-25 °C ... 70 °C
-40°C (startup type tested)
> 60 °C Derating: 2.5 %/K
32 mm / 106 mm / 90 mm
0.24 kg
