ECHNICAL INFORMATION
Model No.
Description
C
ONCEPT AND MAIN APPLICATIONS

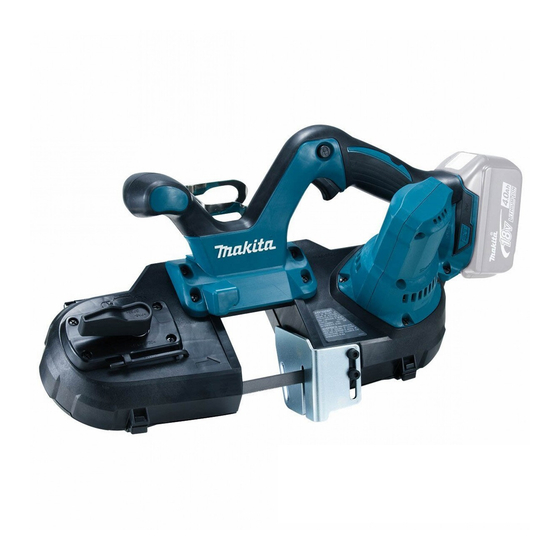

Model DPB181 is lightweight and compact cordless portable band saw.
The design is specialized in excellent maneuverability in horizontal and
overhead applications.
The following features are the same as BPB180/ DPB180.
• Adjustable stopper plate
• Easy blade replacement
• powered by 18V Makita Li-ion battery
Battery protection circuit is equipped with DPB181. The function works when
the battery with a star mark is set on DPB181.
Note: BL1815 is not compatible.
S
pecification
Voltage: V
Capacity: Ah
Battery
Type
Energy capacity: Wh
Charging time (approx.): min.
Max output (W)
Blade speed: m/s (ft/min.)
Length
Blade size:
Width
mm (")
Height
Round pipe [diameter]
Cutting capacity:
mm (")
Square pipe [width x height]
Variable speed control dial
Overload protector
LED job light
Weight according to
EPTA-Procedure 01/2003
*
With Band saw blade 13-835 and Battery *
2
S
tandard equipment
Battery
*4
Charger
*4
Battery cover
*5
Band saw blade 13-835 (18 teeth per inch)
Hex wrench 4
Wheel cover set (for some countries)
Tool bag (for some countries)
O
ptional accessories
Band saw blade 13-835
(14, 18, 24 teeth per inch)
Wheel cover set
Hook set
Cutting wax
DPB181
Cordless Portable Band Saw
2
: kg (lbs)
*
With Battery BL1815N or BL1820
3
*4 Battery and Charger are not supplied with "Z" model.
*5 Supplied with the same quantity of extra Battery
Note: The standard equipment may vary by country or model variation.
Battery BL1815N
Battery BL1820
Battery BL1830
Battery BL1840
Battery BL1850
18
1.5, 2.0, 3.0, 4.0, 5.0
Li-ion
27, 36, 54, 72, 90
15, 24, 22, 36, 45 with DC18RC
350
3.2 (630)
835 (32-7/8)
13 (1/2)
0.5 (0.02)
64 (2-1/2)
64 x 64 (2-1/2 x 2-1/2)
No
No
Yes
3.2 (7.1)*
3
3.5 (7.7)*
1
Fast charger DC18RC
Charger DC18SD
Charger DC24SC
Automotive charger DC18SE
OFFICIAL USE
for ASC & Sales Shop
PRODUCT
L
H
W
*
1
Dimensions
: mm (")
Length (L)
468 (18-1/2)
Width (W)
197 (7-3/4)
Height (H)
233 (9-1/8)
*
1 With Battery BL1830, BL1840
or BL1850
P 1/ 18
