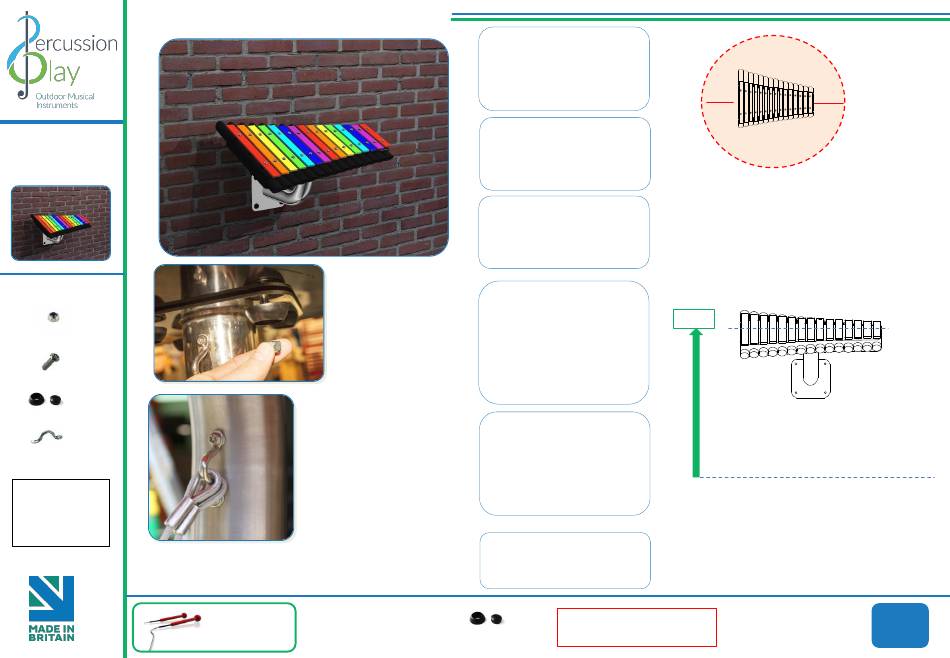

Percussion Play Cavatina Installation Instructions

Installation Instructions
Wall Fixed
Cavatina
Page 1 of 2
Instrument
Components:
x4
M8 Nyloc Nut
x2
M6x20 Security Screw
x4
2 Part Cover
Cap
x1
M6 Saddle Strap
Metric
Conversion:
700mm/ 28"
850mm/ 33"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
(1.1)
(1.3)
15kg (Cavatina)
Wall Fix
Pair Small Red
Beaters X1
Components:
1. Attach the steel leg to the
base of the instrument with
the M8 Nyloc Nuts and 2 part
security caps. (1.1) (See
Assembly Guide)
2. Attach Wall Fixing posts to
legs(1.2) (See Ground Fix Post
Installation Sheet)
3.Mark hole locations (X4)
using the pre drilled holes in
square plate.
4. Drill hole locations (X4)
according to your chosen
fixings
(frame fixings, wall bolts or
chemical anchors) depending
of the structure of the wall.
(Not Supplied)
5. Fix through Plate with
suitable fixings (not supplied)
in correct orientation and
height for intended Key
stage. Cover Fixings with 2
Part Caps supplied
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
Wall Fixings/ Anchors not
x4
2 Part Cover supplied
Cap
Install Instrument
1.5m 1.5m
with 1.5m free space
(from widest point)
around it.
KS1,2
KS1 – 700mm
KS2 – 850mm
Ground Surface
Spares available from
percussionplay.com or from your
local distributor
14 Kg
