Percussion Play Cadenza Installation Instructions

Installation Instructions

Wall Fixed

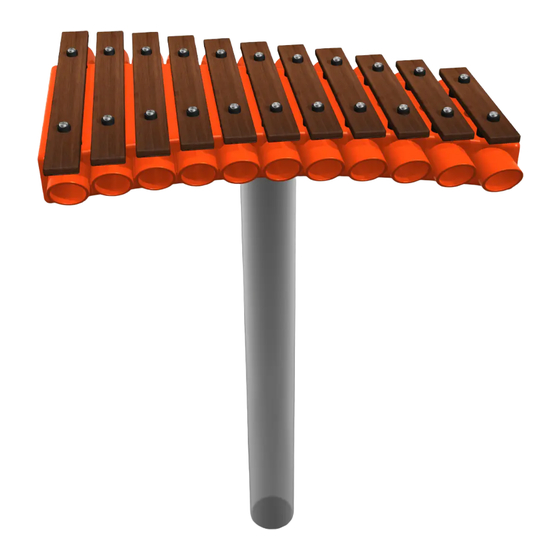

Cadenza
Page 1 of 2
Instrument
Components:
x4
M8 Nyloc Nut
x2
M6x20 Security Screw
x4
2 Part Cover Cap
x1
M6 Saddle Strap
Metric Conversion:
250mm/ 10"
300mm/ 12"
450mm/ 18"
700mm/ 28"
850mm/ 33"
1.5m/ 59"
BS EN 1176
(1.1)
(1.3)
Weight of heaviest part 7kg (Cadenza)
Wall Fix
Pair Small Red
Beaters X1
Components:
1. Attach the steel legs to the
base of the instrument with
the M8 Nyloc Nuts and 2 part
security caps. (1.1) (See
Assembly Guide)
2. Attach Wall Fixing posts to
legs(1.2) (See Ground Fix Post
Installation Sheet)
3.Mark hole locations (X4)
using the pre drilled holes in
square plate.
4. Drill hole locations (X4)
according to your chosen
fixings
(frame fixings, wall bolts or
chemical anchors) depending
of the structure of the wall.
(Not Supplied)
5. Fix through Plate with
suitable fixings (not supplied)
in correct orientation and
height for intended Key stage.
Cover Fixings with 2 Part Caps
supplied
6. Attach the 1 pair of beater
to the saddle strap on the leg.
(1.3)
Wall Fixings/ Anchors
x4
not supplied
2 Part Cover Cap
1.5m 1.5m
KS1,2
KS1 – 700mm
KS2 – 850mm
Ground Surface
Spares available form
percussionplay.com
or from your
local distributor
Install Instrument
with 1.5m free space
(from widest point)
around it.
14 Kg
