LED
S

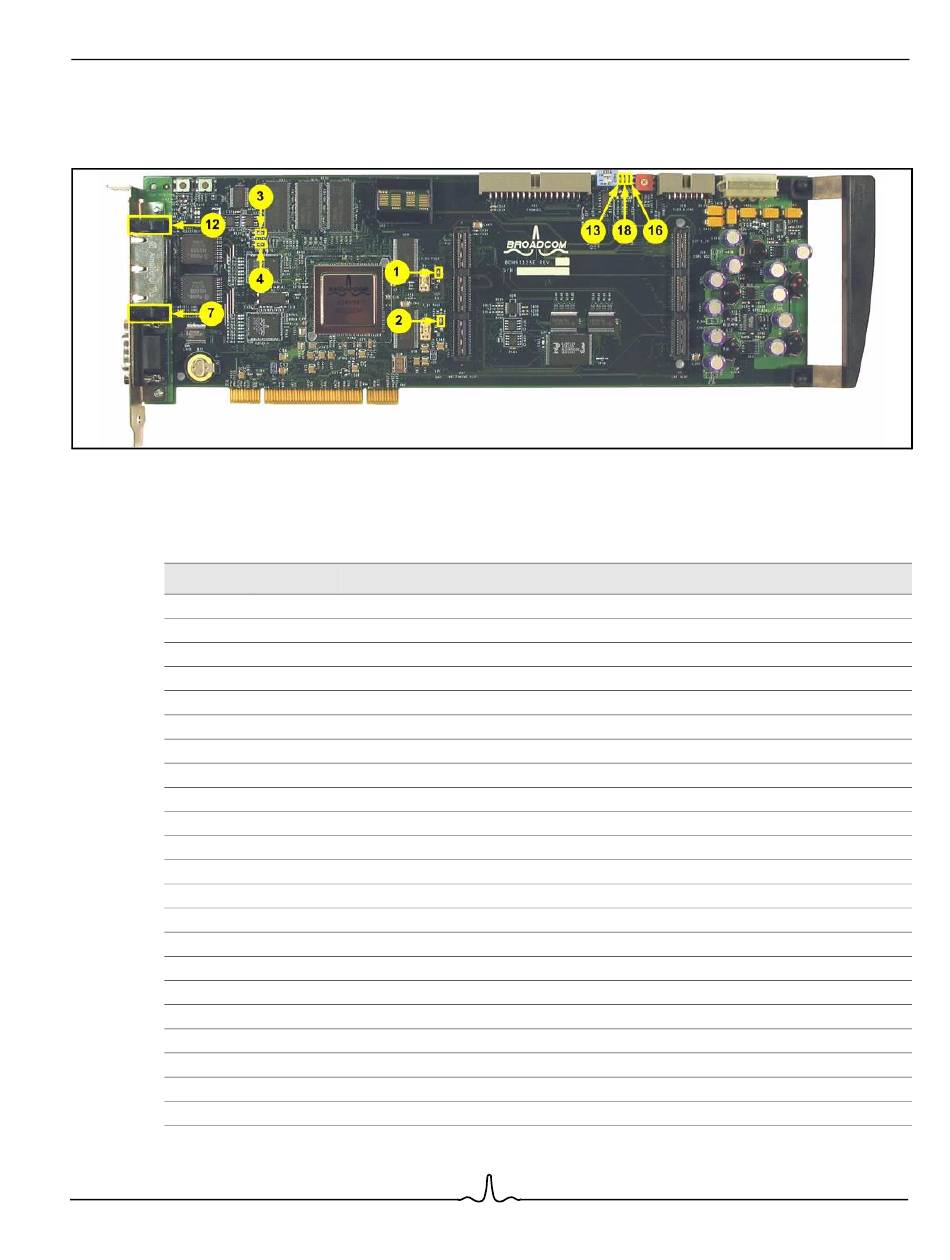

Figure 4 shows the locations of the LEDs. The LEDs are described in Table 2.
Board ID
D1
D2
D3
D4
D7 *
D12 *
D13
D16
D18
* = LEDs visible from the board's side panel.
Document 91125E-UM100-R
Color Description
Red 2.5V Fuse blown indicator.
Red 3.3V Fuse blown indicator.
Yellow System reset.
Yellow Cold reset.
Ethernet Port E1 PHY LEDs
Red Link2 = Speed indicator.
Green Link1 = Speed indicator.
Yellow Fdx = Full-duplex indicator.
Green Slv = Slave indicator.
Yellow Act = Transmit and receive activity indicator.
Green Link = Link quality indicator.
Ethernet Port E0 PHY LEDs
Red Link2 = Speed indicator.
Green Link1 = Speed indicator.
Yellow Fdx = Full-duplex indicator.
Green Slv = Slave indicator.
Yellow Act = Transmit and receive activity indicator.
Green Link = Link quality indicator.
Green Debug LED.
Green 3.3V power good.
Green 5V.
B roadc om C or por ati on

Figure 4: LED Locations

Table 2: LED Descriptions

BCM91125E

LEDs
