Any one of the following three methods supply power to the board by plugging in:
• The BCM91125F board's PCI connector (J2) to a PCI slot on a motherboard.
• A HDD power cable from a standard PC power supply to the HDD connector (J19).
• The supplied 120–240V AC to 5V DC adapter to the 5V DC connector (J24).
Only one of these methods should be employed at any given time.
LED
S

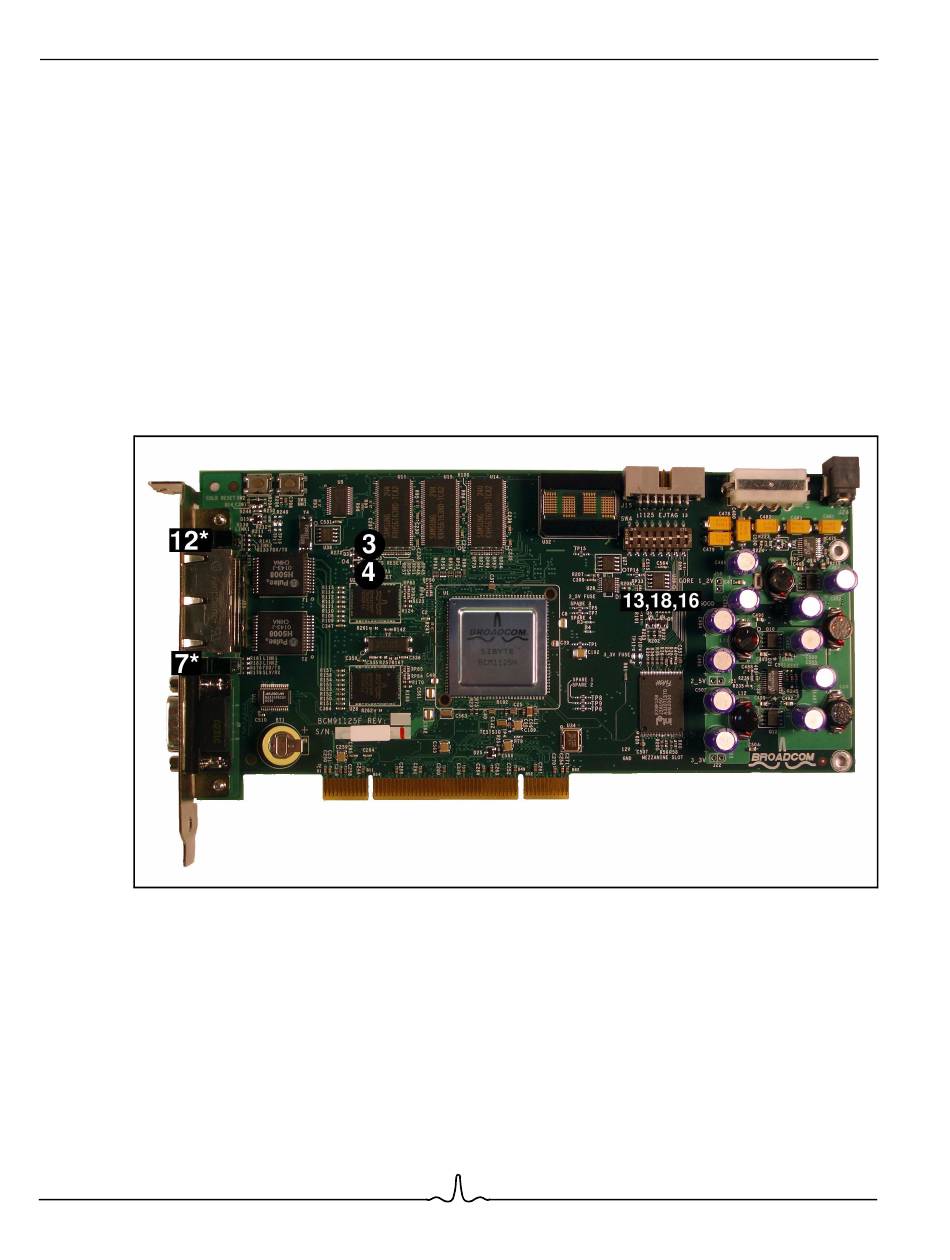

Figure 4 shows the positions of the LEDs numerically. Compare
of each LED in
Page 6

Powering Up the Board

B
OARD
Table 2 on page 7.
B roadc om C or por ati on
Figure

Figure 4: LED Callouts

User Manual
4's number callouts with a description
