Standard push-button module
Standard push-button module, 1-gang
Art. no.: 5071 TSM
Standard push-button module, 2-gang
Art. no.: 5072 TSM

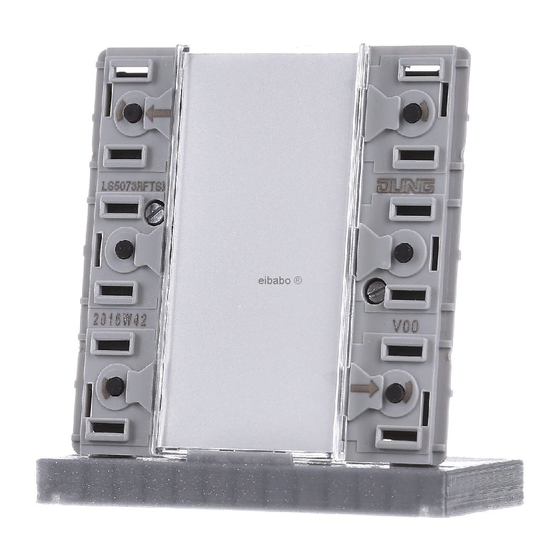

Standard push-button module, 3-gang
Art. no.: 5073 TSM
Standard push-button module, 4-gang
Art. no.: 5074 TSM
User manual
1

Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Use only the enclosed plastic screws for fastening to the supporting frame! Otherwise safe op-
eration cannot be ensured. Electrostatic discharges can cause defects in the device.
These instructions are an integral part of the product, and must remain with the end customer.
2

Device components

(1)
Status LED
(2)
3

Function

System information
This device is a product of the KNX system and complies with the KNX directives. Detailed tech-
nical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
32587313
J:0082587313

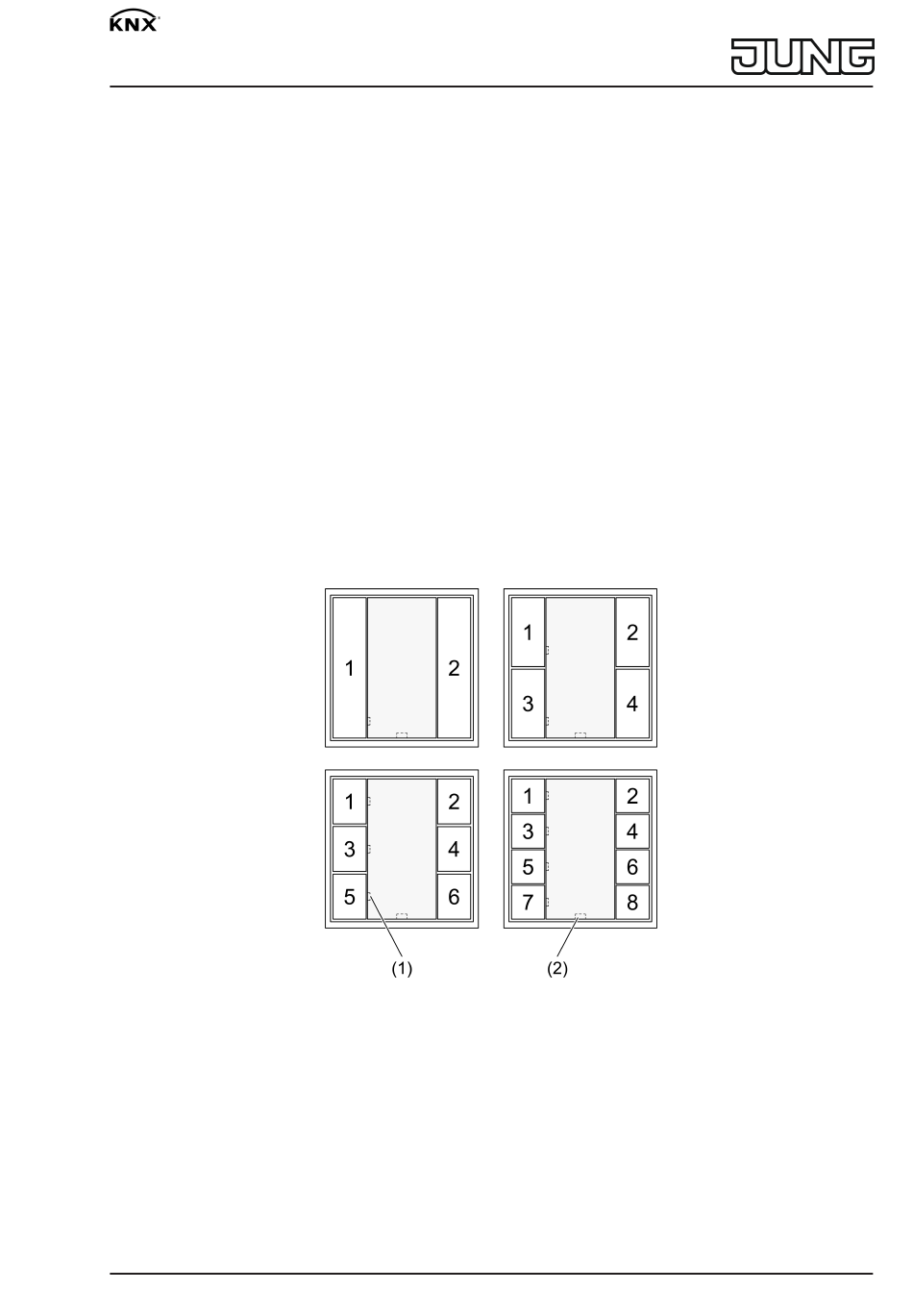

Figure 1: Standard push-button modules - front view
1 / 5
10.08.2018
