Footrest Assembly - Cub Cadet Challenger Series Service Manual

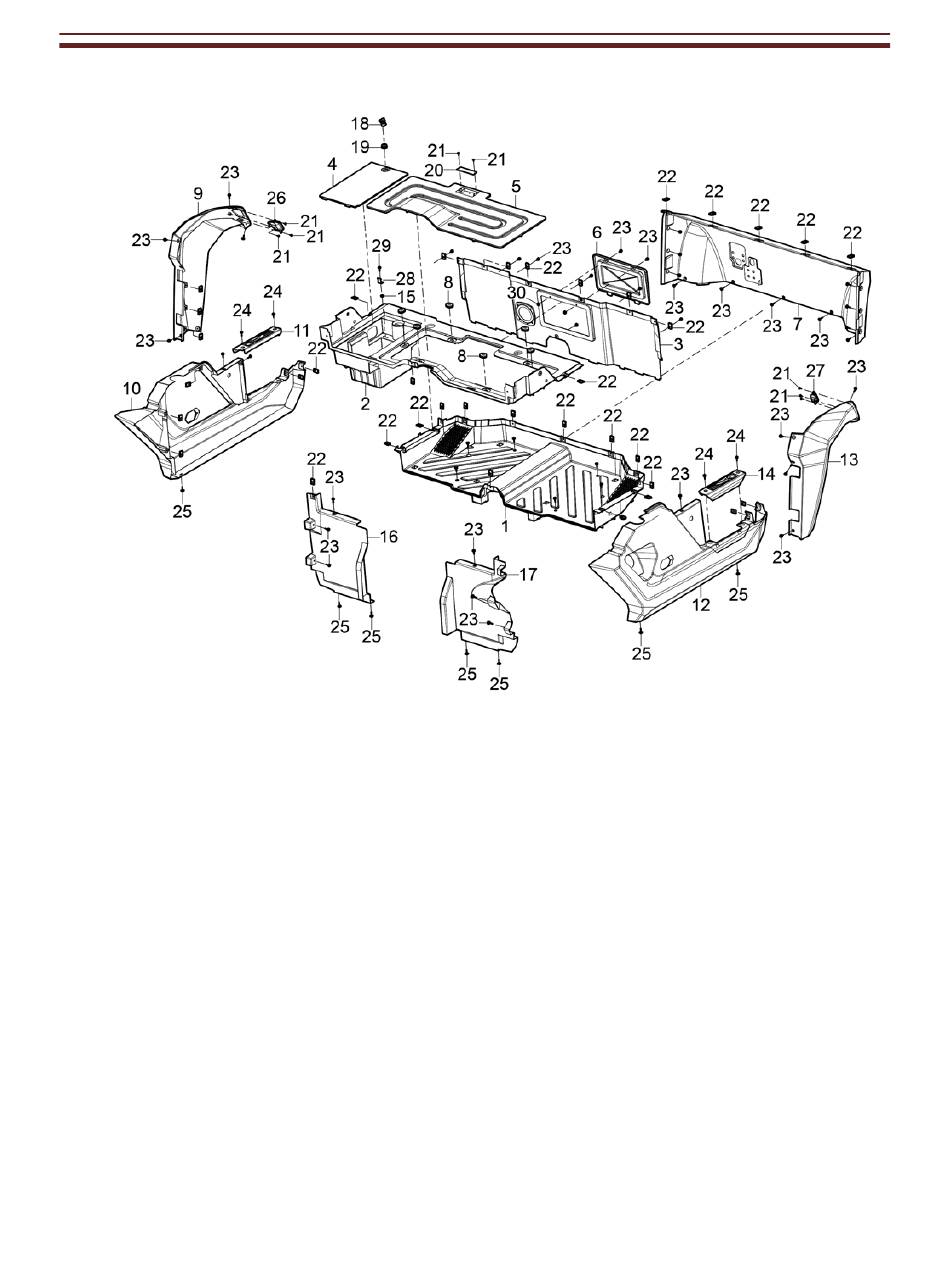

Footrest Assembly

No.
Removing the footrest
Footrest
1
Seating support Ⅰ
2
Seating support Ⅱ
3
Cover battery
4
Cover engine
5
Cover battery box
6
Front panel footrest
7
Washer rubber 8×17
8
Side Pane l(front left)
9
Side Panel (middle left)
10
Side protector (left)
11
Side Panel (middle right)
12
Side Panel (front right)
13
14 Side protector (right)
Chassis
Part Name
5‐28
Qty Remarks
1
1
1
1
1
1
1
6
1
1
1
1
1
1
