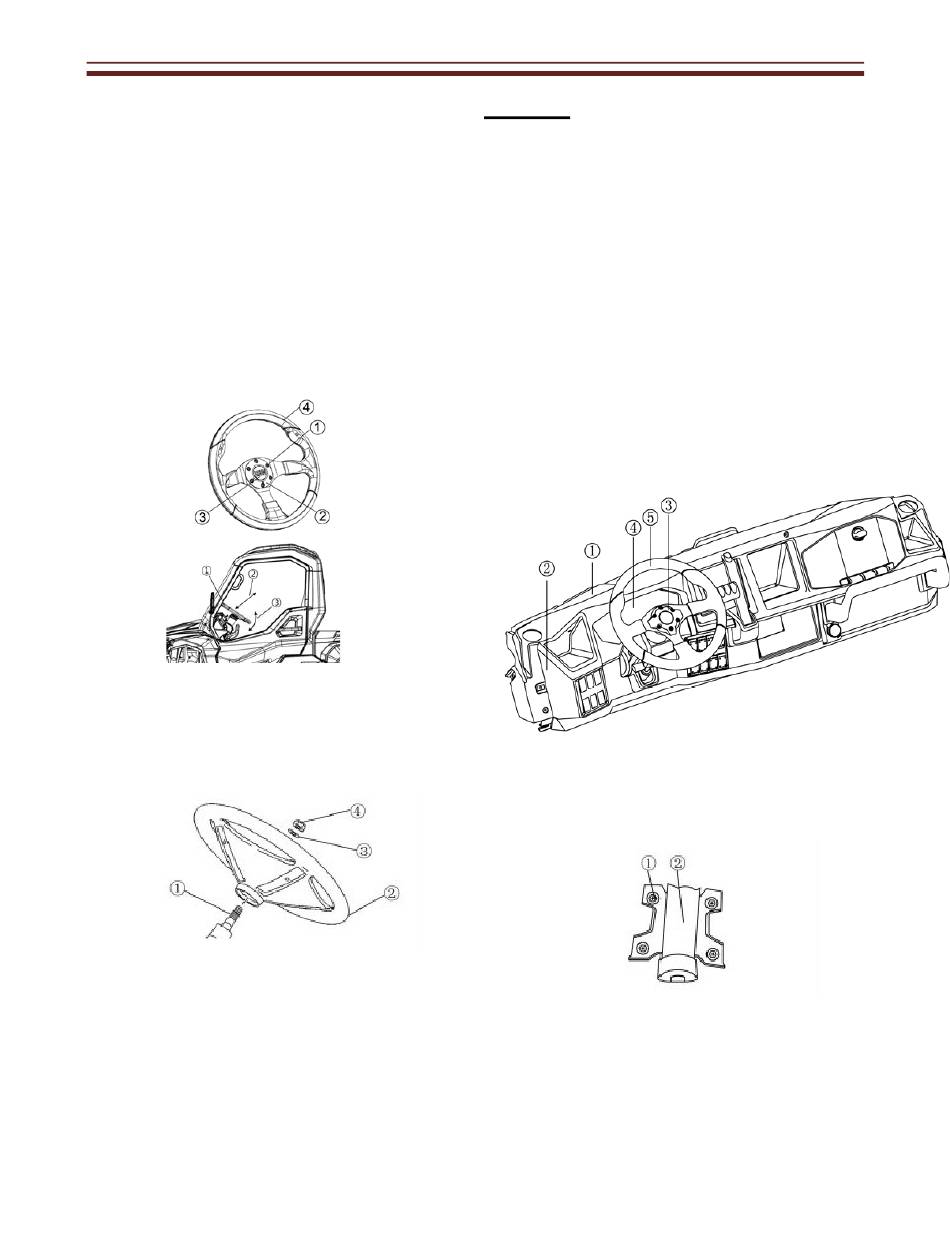

Disassembly of the steering wheel
assembly
1. Remove
•
screw M5×16 ①
•
Decoration cover for steering
wheel ②
• Horn assembly
a. Remove the screw ①
b. Remove the decoration cover for steering
wheel ② and horn assembly ③
c. Use the special tools pull out the steering
wheel ④.
2. Inspect
Steering shaft(1)
•
Steering wheel(2)
•
• Washer(3)
Flange nut(4)
•
Inspect the splines on the steering shaft
and steering wheel. Look for damage or
wear.
Inspect the steering wheel for damage or
wear to the wheel covering.
This is a safety area, and any damage
or wear needs to be repaired
immediately.
Chassis
Warning:
This is a safety area, and any damage
or wear needs to be repaired
immediately.
Do not let vehicle leave without proper
repairs being performed.
Disassembly of the steering column
③
assembly
• Engine covers ①
• Connection covers part ②
• Steering wheel cover ③
• Display board ④
• Steering wheel ⑤
5‐6
1. Remove
4, 8mm X 16mm bolts (1) that
•
attach steering column (2) to
the frame.
2. Inspect
Steering column tube(1)
•
Bearing(2)
•
Bearing Fitment of the steering
•
shaft(3)
• Splines(4)
