Gecko in.k300 Quick Reference Card

in.k300-en
Description
Heater
Filter
Smart Winter Set Point
Mode
Spa Functions
Off Mode Pump 1
Pressing Pump 1 for 5 seconds Press Pump 1 key to turn
will enable the Off mode. Pump 1 on at low speed.
This mode allows you to Press a second time to turn
stop all outputs including pump to high speed (with a
automatic functions such as dual-speed pump*). A third
filter cycle, heat request and time turns pump off. A built-in
smart winter mode for timer automatically turns
30 minutes to perform quick pump off after 20 minutes,
spa maintenance. When Off unless pump has been
mode is active, the display manually deactivated first.
will toggle between the "OFF"
message, the clock and the The "Pump 1" indicator
water temperature. lights up when Pump 1 is on.
The spa light will flash for With a dual-speed pump,
a few seconds before the the indicator will flash when
end of the 30 minutes to pump 1 is on at low speed.
warn you that the system is
about to resume its normal
operation. Press Pump 1
or Pump 2 (if available) to
restart the system before the
expiration of the 30 minute
delay. When the system
resumes its normal operation,
* If single speed pump: press Pump key to turn pump on. Press Pump key
the display shows "On" for
again to turn pump off.
3 seconds.
Programming Steps
Program menu
The program menu is the last parameter only.
If there is no action taken
accessible by holding down
for 10 seconds, the system
the Light key for 5 seconds.
will exit the program menu
In the program menu the
without saving any changes.
following parameters can be
set: clock, the filter or purge
cycles, economy mode and
temperature units. While you
are in the program menu,
use the Up or Down key to
adjust the parameters and
use the Light key to jump
to the next parameter.
The changes will be saved
after the confirmation of
Quick Reference Card
Please consult your spa user manual for complete info on the features of your spa system.
1 Pump Model
Pump 1
Light
Indicator lights
Pump 2 key
Not available on all models
Press Pump 2 key to turn
Pump 2 on at low speed.
Press a second time to turn
pump to high speed (with a
dual-speed pump*). A third
time turns pump off. A built-in
timer automatically turns
pump off after 20 minutes,
unless pump has been
manually deactivated first.
The "Pump 2" indicator
lights up when Pump 2 is on.
With a dual-speed pump,
the indicator will flash when
pump 2 is on at low speed.
Setting the clock
Enter the program menu by
holding down the Light key
for 5 seconds. The display will
show the current clock setting
with the hour flashing.
Depending on factory settings
your system may be set to
24-hour time or 12-hour time.
Setting the hour: Use the Up
or Down keys to adjust the
hours. Press the Light key to
jump to the next parameter,
the minutes.

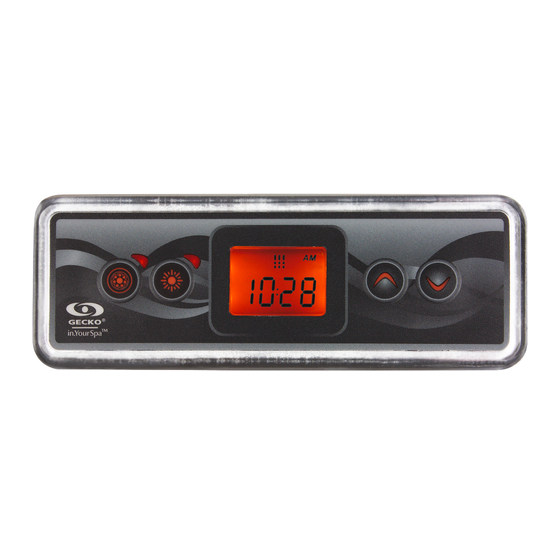

in.k300™
Compact full-function keypad
The Quick Reference Card provides an overview of your spa's main functions
and the operations accessible from your digital keypad.
This QRC depicts a generic overlay, custom versions may vary.
2 Pump Model
Up
Down
Light key Up/Down keys
Press Light key to turn light Use Up or Down key to set
on. A second press turns desired water temperature.
light off. A built-in timer The temperature setting will
automatically turns light be displayed for 2 seconds to
off after 2 hours, unless it confirm your new selection.
has been manually
deactivated first. 2 pump spas have a
combined Up/Down key.
The "Light" indicator lights up Hold the button to increase
when light is on. the parameter and release
the button to stop. Hold
the button again to decrease
the parameter.
The "Set Point" icon
indicates that the
display shows the
desired temperature,
NOT the current
water temperature!
Programming the filter/
purge cycles
Setting the minutes: Use the
Up or Down keys to adjust
Depending on system
the minutes. Press the Light
configuration your spa
key to jump to the next
will perform either a filter
parameter, the filter or purge
or a purge cycle. The filter
start time (FS).
cycle menu consists of the
following parameters: the
start time (FS), the duration
(Fd) and the frequency
(FF). The purge cycle menu
consists of the following
parameters: the start time (FS)
and the frequency (FF).
Pump 1
Pump 2 Light
Indicator lights Up / Down
A filter cycle consists of
starting all the pumps and
blower in high speed for
1 minute (purge step) then,
the pump associated with
the filter will run in low speed
for the remaining duration
of the filter cycle (clean step).
A purge cycle is used when
the spa is equipped with a 24
hour circulation pump which
provides a continuous clean
step. It consists of starting all
the pumps and blower in
high speed for 1 minute.
1/2
