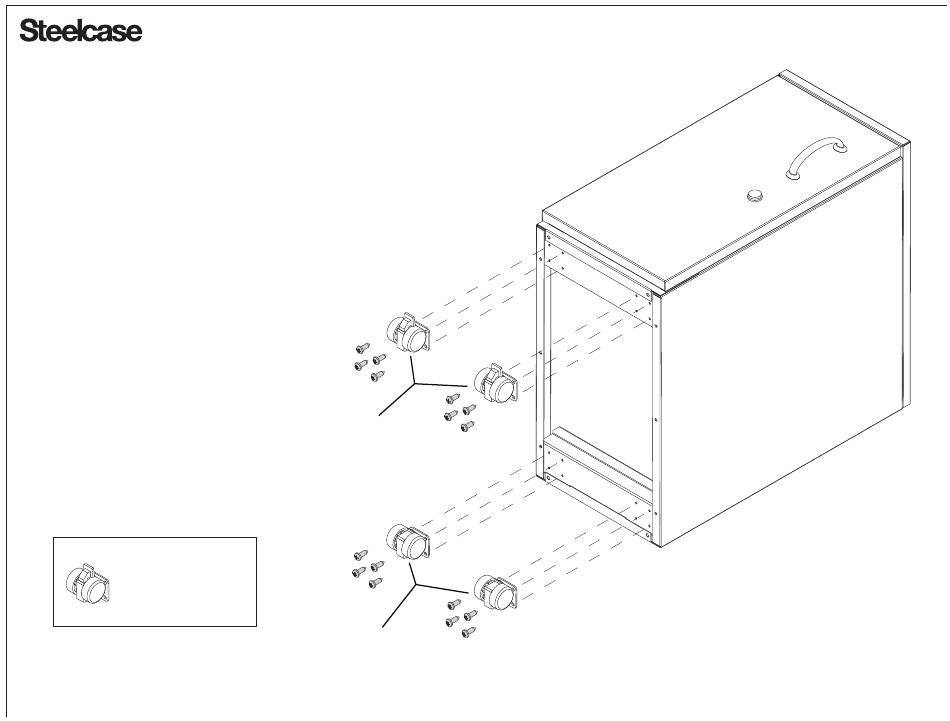

Caster Installation for Mini Locker
1.
Lay the unit on its back or top.
2.
Remove the caster kit from the drawer. The locking
casters go on the front.
3.
Position the caster plate over the hole pattern
4.
Install four (4) T20 torx drive pan head screws.
5.
Repeat steps 3 and 4 for the rest of the casters.
37mm (2 lock/ 2 non-lock)
LOCKING CASTERS
NON-LOCKING CASTERS
Page 9 of 57
P/N 939504734
Doc # 70305 Rev J
