TS321
Burton Leather Executive Chair
TS32101
TS32102
TS32103
High Back
Mid Back
Mid Back
(Steps 3-6 on Page 2)
Sled Base
(Steps 1-2 on Page 1)
©
2006 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.

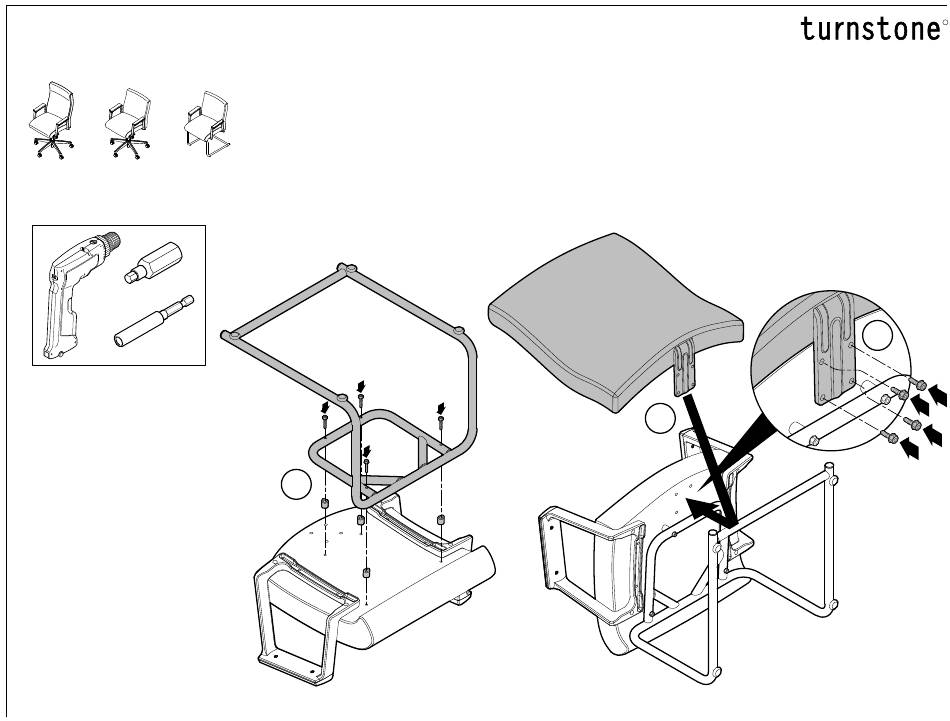

1.
Attach sled base to seat
Lay the chair seat on the floor. Taking care to ensure
that the seat will not be scratched, cut or stained.
Locate the sled base with the four (4) spacers on the
bottom of the chair seat and attach using four (4)
1/4-20 x 2-3/8" (60mm) long button head, hex drive,
sems washer type screws.
1
2.
Place the front of the chair seat assembly on the floor.
Taking care to ensure that the seat will not be scratched,
cut or stained. Place the back assembly onto the bottom
of the seat assembly as shown (2a). Attach using four (4)
M8 x 1-1/16" (27mm) long hex head bolts (2b).
2a
R
2b
Page 1 of 2
939500113 Rev B
Advertisement
Table of Contents
Related Manuals for Steelcase Turnstone TS321
Summary of Contents for Steelcase Turnstone TS321
- Page 1 M8 x 1-1/16" (27mm) long hex head bolts (2b). (Steps 3-6 on Page 2) Sled Base sems washer type screws. (Steps 1-2 on Page 1) © 2006 Steelcase Inc. Page 1 of 2 Grand Rapids, MI 49501 U.S.A. 939500113 Rev B Printed in U.S.A.
- Page 2 M8 x 1-1/16" HEX Attach chair control to seat HEAD BOLTS Lay the chair seat on the floor. Taking care to ensure that the seat will not be scratched, cut or stained. M8 x 2" HEX Locate the chair control with the four (4) holes on the HEAD BOLTS bottom of the chair seat and attach using two (2) M8 x 1-1/16"...
