Steelcase TS Storage Installation Instructions Manual page 3

®

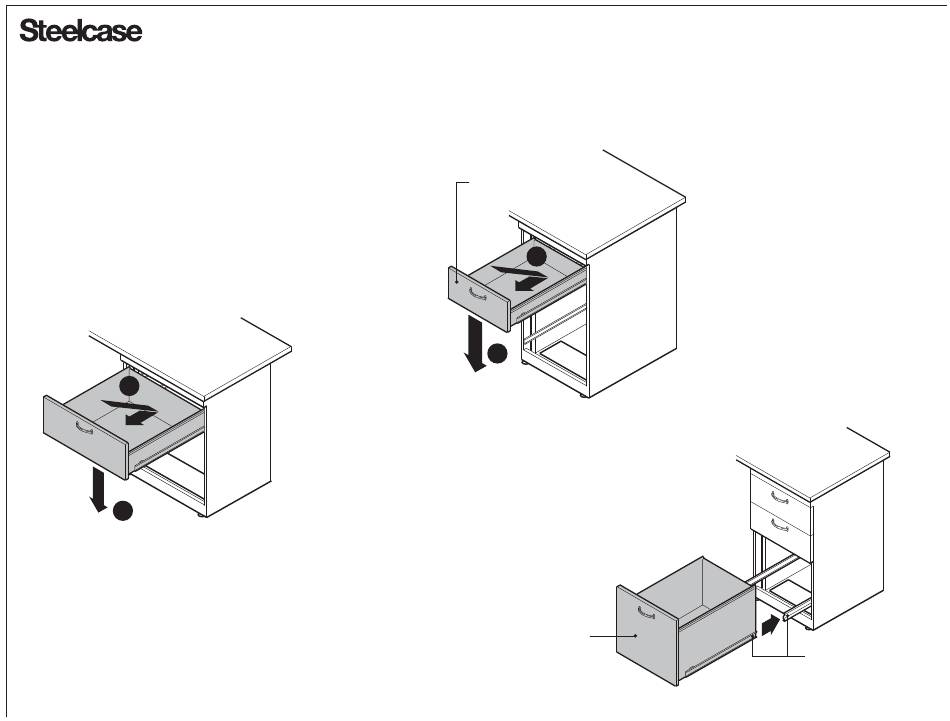

Drawer Reinstallation (Lateral)
Reinstall top file drawer first. Replace drawer in lateral,
align rear mounting tabs on slides with rear drawer slots
and pull drawer forward to engage tabs (a).
Then align front mounting tabs with the front drawer
slots and push drawer front down to engage tabs (b).
Repeat for bottom file drawer.
a
b
Drawer Reinstallation (Pedestal)
Reinstall top file drawer first. Replace drawer in pedestal,
align rear mounting tabs on slides with rear drawer slots
and pull drawer forward to engage tabs (a).
Then align front mounting tabs with the front drawer slots
and push drawer front down to engage tabs (b). Repeat
for bottom file drawer.
BOX DRAWER
a
a
b
Re-align file drawer slides with matching slides
in pedestal and push file drawer back into place.
Quick-release levers will automatically engage.
Close completely. Completely cycle the drawer
by fully opening and closing one time to reset the
ball retainers.
FILE DRAWER
MATCH UP SLIDES
