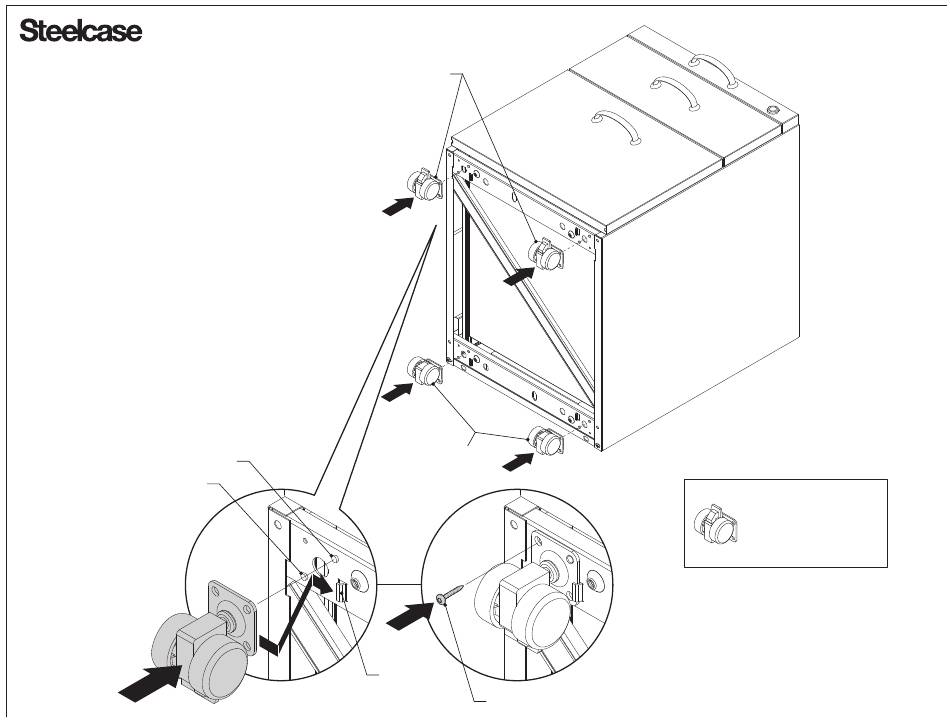

Caster Installation for Mobile Pedestals
1.
Lay the unit on its back or top.
2.
Remove the caster kit from the drawer. The locking
casters go on the front.
3.
While installing the caster, angle the plate to go over
emboss 1 & 2 and then under the formed lance.
4.
Position the caster plate so emboss 1 & 2 are in the
obround holes in the caster plate.
5.
Install one (1) T20 torx drive pan head screw.
6.
Repeat steps 3 thru 5 for the rest of the casters.
EMBOSS 1
EMBOSS 2
LOCKING CASTERS
NON-LOCKING CASTERS
FORMED
LANCE
T20 TORX DRIVE PAN HEAD SCREW
37mm (2 lock/ 2 non-lock)
