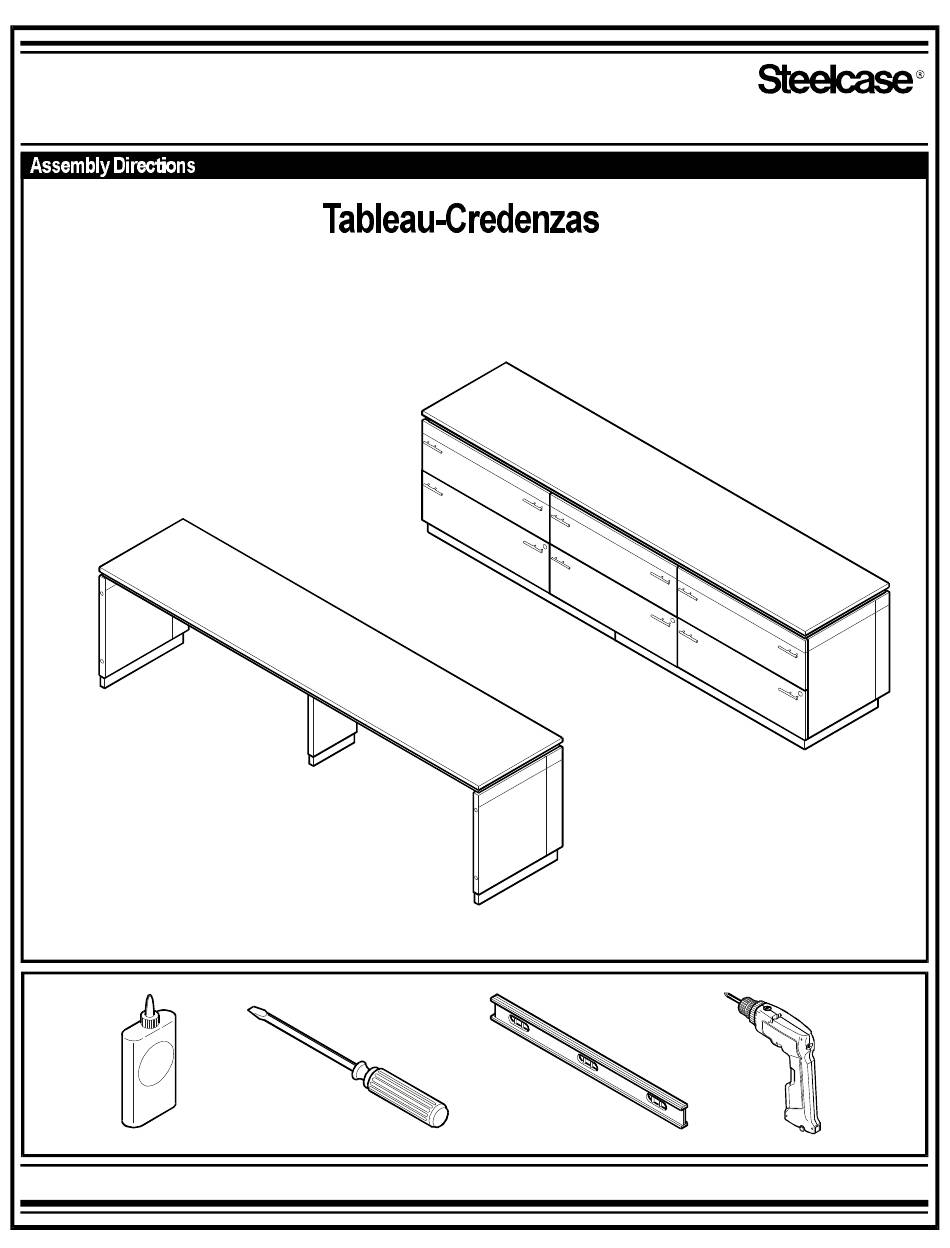

- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 108” Credenza (Begin on page 2) NOTE: 108” credenzas are shipped unassembled. All others shipped assembled. 108” Kneewell Credenza (begins on page 11) Tools Wood glue Page 1 of 14 REV BA...
- Page 2 108” Credenza with drawer pedestals Unlock and remove drawers. Steelcase Page 2 of 14 Y9501884...
- Page 3 Slide credenza pedestal toward each other so the two end panels are flush. Steelcase Page 3 of 14 Y9501884...
- Page 4 Attach pedestal to adjoining pedestal using six (6) # 8 flat countersunk head woodscrews 1-1/4” long. Repeat procedure for other pedestals if necessary. Steelcase Page 4 of 14 Y9501884...
- Page 5 1/2” in from the sides of the credenza. Attach base assemblies using pan head wood screws 1/2” long. NOTE: 32 screws are provided, not all may be used depending on your configuration. Steelcase Page 5 of 14 Y9501884...
- Page 6 Flip credenza over so it is in an upright position. Attach pedestal to sub-top and top using six (6 per 36” pedestal, 4 per 18” pedestal) # 8 pan head woodscrews 1-3/4” long . Subtop Stretcher 15/16” (24mm) Steelcase Page 6 of 14 Y9501884...
- Page 7 Top removed for clarity Secure back to pedestal using six (6) #8 pan head wood screws 1-1/4” long. Repeat procedure for other pedestals. Steelcase Page 7 of 14 Y9501884...
- Page 8 Cabinet Pedestal with Drawers, you must remove the drawers first in order to access the glide hole. NOTE: After adjusting glides on door cabinets, insert dome plugs in front two holes. RAISE LOWER GLIDE Steelcase Page 8 of 14 Y9501884...
- Page 9 To secure back, repeat step 6 on page 7. With back attached, secure side of back wrapper to side of end panel using three (3) #8 countersunk head wood screws 1-1/4” long. Re-install drawers. Steelcase Page 9 of 14 Y9501884...
- Page 10 Attaching an symmetrical wrap. To secure back, repeat step 6 on page 7. With back attached, secure side of back wrappers to side of end panel using three (3) #8 countersunk head wood screws 1-1/4” long for each end. Re-install drawers. Steelcase Page 10 of 14 Y9501884...
- Page 11 (6) #8 pan head screws 1” long (Fig. 1). Repeat procedure for other end panel. 9-1/4” (235mm) Attach steel plate to support leg using two (2) #8 countersunk head wood screws 1” Fig. 2 long (Fig. 2). Steelcase Page 11 of 14 Y9501884...
- Page 12 (Fig. 2) Place center panel onto top setting it 25/32” back from rear edge. Fig. 1 FRONT Fig. 2 SIDE VIEW FRONT 25/32” (20mm) Steelcase Page 12 of 14 Y9501884...
- Page 13 Secure each end panel to the credenza top using six (6) #8 pan head wood screws 1” long. Attach the center support panel to the credenza top using four (4) #8 pan head wood screws 1” long. Steelcase Page 13 of 14 Y9501884...
- Page 14 (3) biscuits into the slots in each end panel (Fig. 2). Fasten back by lining up biscuits with biscuit grooves on back. Level unit. NOTE: Clamp and let set for ½ hour minimum. Fig. 2 BISCUIT Fig. 1 Steelcase Page 14 of 14 Y9501884...
