Élan
Table Desk
TS52071, TS52072, TS52073, TS52074 and TS52075
Please save these instructions for use with assembly
of 1/4 Round Bridge, Corner Bridge and Return.

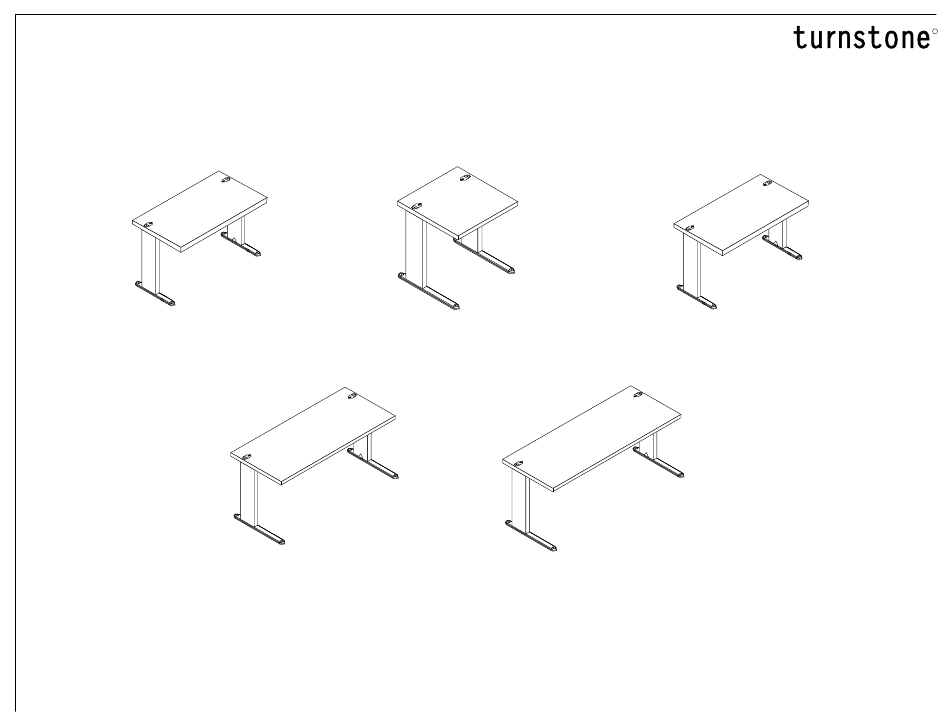

24" X 48" Table Desk
TS52071
©
2001 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.
30" X 30" Table Desk
TS52072
30" X 48" Table Desk
TS52073
30" X 72" Table Desk
TS52075
30" X 60" Table Desk
TS52074
Page 1 of 4
939503209 Rev B
R
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Steelcase Turnstone Elan TS52071
Summary of Contents for Steelcase Turnstone Elan TS52071
- Page 1 30” X 30” Table Desk 30” X 60” Table Desk TS52071 TS52072 TS52074 30” X 48” Table Desk 30” X 72” Table Desk TS52073 TS52075 © 2001 Steelcase Inc. Grand Rapids, MI 49501 U.S.A. Page 1 of 4 Printed in U.S.A. 939503209 Rev B...
- Page 2 unpack the components attach legs to desk worksurface Unpack the parts and lay them out on a carpeted surface Position legs over top of screws and slide leg toward (to avoid scratches). Make sure you have all the items front of desk to engage screws into slots. shown below.
- Page 3 secure legs to worksurface. Place screwdriver into access hole over scr ews and drive scr ews until tight. Leave one of the legs loose until modesty panel is attached. This will be tightened later . attach modesty panel to legs Slide the hooks on the ends of the modesty panel into the slots on both legs (they fit tightly in...
- Page 4 Maintenance Furniture Protection Desk pads and coasters should be used to help protect the surface against dents, scratches, moisture and hot or cold liquids. Objects should be lifted, not pulled or pushed across the surface, to avoid scratching the furniture. Felt or leather pads should be used on the bottom of office equipment or accessories.
