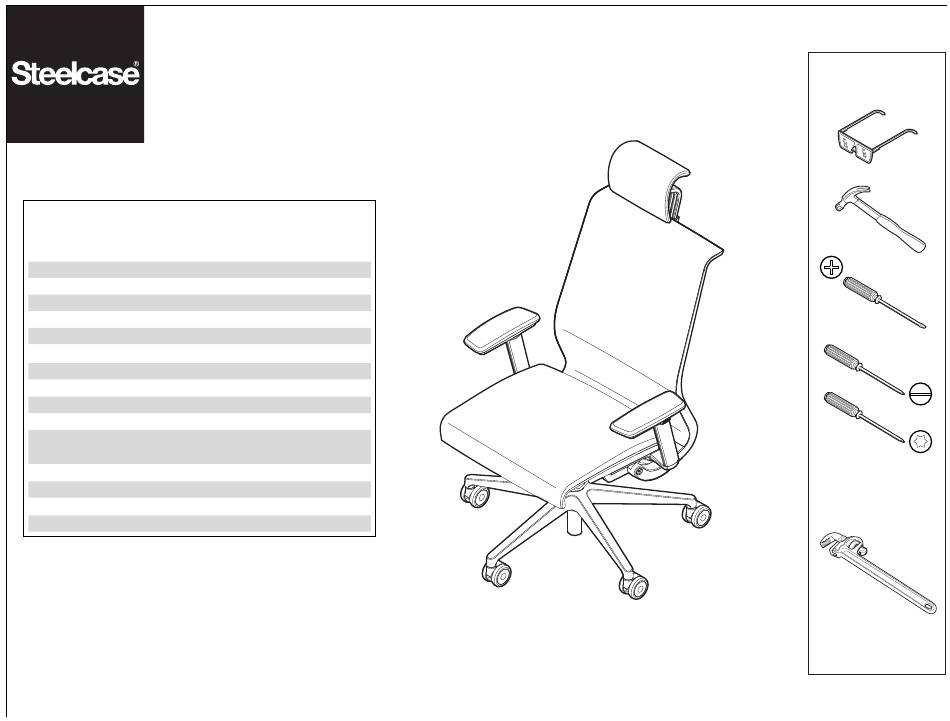

465 Think
®
for Customer Service
YB
O
RA
#2 and #3
Phillips
Torx
T15, T20 and T30
(An Allen wrench can
be subsituted if a torx
drive is not available)
Page 1 of 19
939546506 Rev E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 465 Think and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase 465 Think

Summary of Contents for Steelcase 465 Think

  • Page 1: Table Of Contents

    Removal & Installation of the Base Removal & Installation of the Pneumatic Cylinder If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you.

  • Page 2: Removal Of The Seat Cushion

    FLAT-BLADED SCREWDRIVER J-CHANNEL SEAT CUSHION RETAINER CLIP J-CHANNEL SEAT CUSHION Removal of the FLAT-BLADED Seat Cushion SCREWDRIVER START REMOVAL AT BACK/REAR CORNER OF THE SEAT. CAREFULLY USE A FLAT-BLADED SCREWDRIVER TO PUSH THE J-CHANNEL OUT. Side view of cushion installed SEAT CUSHION Page 2 of 19 939546506 Rev E...

  • Page 3: Installation Of The Seat Cushion

    Installing the Seat Cushion Side view of cushion installed SNAP! SEAT CUSHION PLASTIC SEAT CUSHION Page 3 of 19 J-CHANNEL " 939546506 Rev E J-CHANNEL RETAINER CLIP...

  • Page 4: Removal Of The Back Cushion

    START REMOVAL AT THE BOTTOM CORNER OF THE BACK. CAREFULLY USE A FLAT-BLADED SCREWDRIVER TO PUSH THE J-CHANNEL OUT. Removal of the Back Cushion FLAT-BLADED Side view of SCREWDRIVER J-CHANNEL cushion installed J-CHANNEL FLAT-BLADED SCREWDRIVER J-CHANNEL FLAT-BLADED SCREWDRIVER BACK CUSHION Page 4 of 19 939546506 Rev E...

  • Page 5: Installation Of The Back Cushion

    Side view of Installing the Back Cushion cushion installed SNAP! BACK CUSHION BACK CUSHION BACK CUSHION SNAP! Page 5 of 19 939546506 Rev E...

  • Page 6: Removal & Installation Of The 3D Knit Back Cushion

    Installation & Removal of the 3D Knit Back Cushion SNAP! Side view of cushion installed 3-D KNIT BACK CUSHION BACK CUSHION SNAP! BACK CUSHION BACK CUSHION Page 6 of 19 939546506 Rev E...

  • Page 7: Installation Of The Headrest

    HEADREST SUPPORT BRACKET Installation of the Headrest Slide the headrest support bracket under fabric into position. NOTE: May be easier to remove back cushion first. Install two (2) outside screws into headrest support bracket. Mount headrest support with two (2) inside screws. Slide headrest arm assembly into headrest support.

  • Page 8: Removal Of The Headrest

    Removal of the Headrest Place a flat-bladed screwdriver under the headrest arm assembly and pry the headrest support outward (1a) to allow HEADREST ARM the headrest arm to slide out (1b). ASSEMBLY Remove four (4) screws on the back frame with a torx T20 screwdriver and Side View HEADREST SUPPORT remove the headrest support bracket and...

  • Page 9: Removal & Installation Of The Lumbar

    Slide the cushion over (1a). SLOTS Removal Insert a flat bladed screwdriver into the lumbar to release the clip (1b). While the screwdriver is still installed into the lumbar, pull the lumber clip away from the chair body (1c). Repeat for the opposite side. Removal &...

  • Page 10: Removal & Installation Of The Back Frame

    BACK FRAME Removal & Installation of the Back Frame Lift seat slide lever (1a) and slide seat forward all the way(1b). Lay back frame onto seat cushion (2a) and align backstops (2b). Holding onto the bottom of the back frame, rotate back BACK FRAME frame (2c) and slide onto backstops (2d).

  • Page 11: Removal & Installation Of The Seat Frame

    Installation & Removal of the Seat Frame NOTE: This operation can be done with or without the upholstery installed. Installation: Install black slides onto mechanism (1a). Lift up on seat slide lever, slide seat frame onto side rails (1b) and lower seat slide lever (1c). For chairs manufactured after October 2008, the clips have snapped into position and the installation is complete.

  • Page 12: Removal & Installation Of The Arms

    Attachment Removal & Installation of the Arms Screws Prior to October 3, 2005 Removal: See page 11 for removal of the seat slide stop blocks. Lift the seat slide lever (2a) and slide the seat frame forward (as shown on page 8) until you can see the arm attachment screws (2b).
  • Page 13 STEEL STEEL ACETAL SCRAP STEEL ACETAL STEEL SCRAP Bin for Components Removed Steel Acetal Scrap Page 13 of 19 939546506 Rev E...
  • Page 14 ACETAL NYLON ACETAL ACETAL Bin for Components Removed Steel Acetal Nylon STEEL Page 14 of 19 939546506 Rev E...
  • Page 15 NYLON NYLON ACETAL STEEL STEEL NYLON ACETAL STEEL SCRAP SCRAP STEEL SCRAP ZINC STEEL STEEL Bin for Components Removed Steel Acetal Nylon ZINC SCRAP Page 15 of 19 939546506 Rev E...

  • Page 16: Replacement Of The Arm Cap

    Replacement of the Arm Cap Install six (6) screws, with a torx T20 screwdriver (or Allen wrench), to secure the arm cap. Reverse to remove. Page 16 of 19 939546506 Rev E...

  • Page 17: Removal & Installation Of The Mechanism

    CABLE ATTACHMENT CLIP Removal & Installation SWING CAM of the Mechanism BRACKET See page 11 for removal of seat, page 10 for removal of back frame and page 12 for removal of arms. Snap cable attachment clip out of the swing cam CABLE bracket by pushing outward on cable attachment clip.

  • Page 18: Removal & Installation Of The Base

    Removal of the Base Use hands to pull all five (5) casters from the base. Use a hammer to remove the base from the cylinder by pushing with hand downward on base and hitting the bottom of the cylinder with a hammer. BASE Installation of the base Snap casters onto base by hand then...

  • Page 19: Removal & Installation Of The Pneumatic Cylinder

    Top View of Cylinder Removal & Installation CABLE of the Cylinder ATTACHMENT BRACKET If the chair control is operational but the CABLE pneumatic cylinder isn't then use this method: PNEUMATIC CYLINDER ADJUSTMENT Place pipe wrench as close to chair control BRACKET as possible and twist cylinder back and forth On installation, align cylinder with...
