TS 400A Group Work Table
Please check all pieces before beginning project.
(this kit may contain extra screws for your
convenience.) If there are any problems or
discrepancies, call our customer service
departmentat 1-800-turnstone.
1.

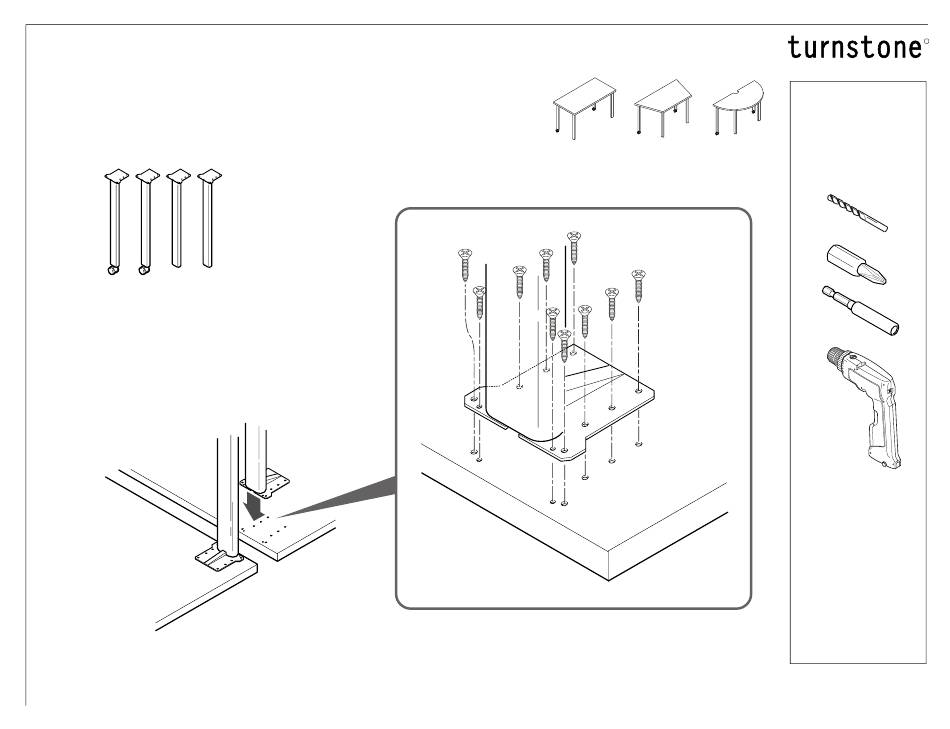

Attach legs to table top
Attach each leg to table top with ten
phillips head screws in the pre-
drilled holes as shown.
2.
Turn table over
Use two people to turn the table
over.
©
