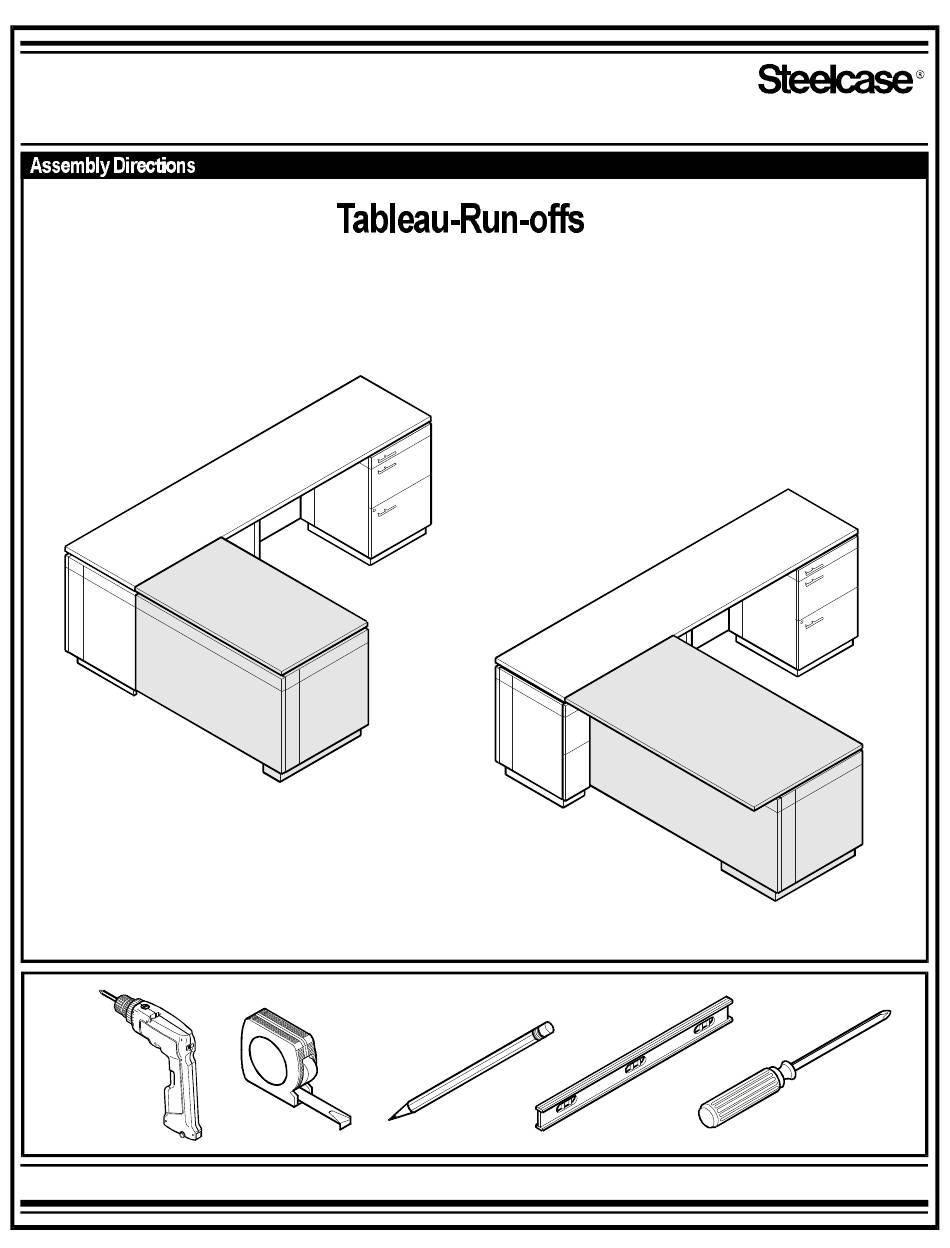

- Page 1 Steelcase, Inc. Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 24” x 90” credenza with 30” x 60” run-off (begin on page 2) 24” x 90” credenza with 36” x 72” run-off (begin on page 6) Tools Page 1 of 15 REV B...
- Page 2 Place steel support mending plate underneath existing unit. Top View 2-5/8” (67mm) 20” (508mm) 7-13/16” (198mm) Secure the plate to the existing unit by using eight (8) #8 pan head wood screws 1” long. Steelcase Page 2 of 15 Y9501889...
- Page 3 Level the glides on the existing unit and the run-off to make sure both units are aligned properly. To access glides, remove drawers. RAISE GLIDE Install fasteners in orientation shown. KNEEWELL Steelcase Page 3 of 15 Y9501889...
- Page 4 Once the dowels are engaged with the fasteners, tighten them securely by turning the fitting screw clockwise with a Philips head screwdriver. DOWEL FITTING SCREW MODESTY PANEL END PANEL MODESTY PANEL END PANEL Steelcase Page 4 of 15 Y9501889...
- Page 5 Repeat the procedure as demonstrated in step 2 on page 2, making sure all screws are secured properly. Steelcase Page 5 of 15 Y9501889...
- Page 6 Top View 2-5/8” (67mm) 20” (508mm) 10” (254mm) Secure the plate to the existing unit by using a power drill and sinking eight (8) #8 pan head wood screws 1” long. Steelcase Page 6 of 15 Y9501889...
- Page 7 When attaching with an end panel, use the forward position holes and use the back position holes for attaching to a pedestal. Attaching to Attaching to Pedestal End panel (back position (forward position go to page 12) go to page 8) Steelcase Page 7 of 15 Y9501889...
- Page 8 Slide filler panel so it is flush to the modesty panel (fig. 1) t hen slide forward so it is flush against the brackets on the modesty panel and flush with the modesty panel bottom edge (fig. 2). Fig. 1 Fig. 2 Steelcase Page 8 of 15 Y9501889...
- Page 9 Attach three (3) brackets onto the end panel end panel using six (6) #8 pan head crews 1/2” long. Attach brackets flush with front edge of the end panel at approximate location shown. Avoid fasteners in front edge of end panel. Steelcase Page 9 of 15 Y9501889...
- Page 10 (Fig. 2). Fig. 1 Fig. 2 To attach filler panel to end panel use six (6) #8 pan head wood screws 1/2” long. Fig. 3 Steelcase Page 10 of 15 Y9501889...
- Page 11 Below is a top view of what the correct assembly should look like for installation of a filler panel to a unit with an end panel. End Panel Forward Position Filler Panel Modesty Panel Secure the plate to the run-off by using eight (8) #8 pan head wood screws 1” long. Steelcase Page 11 of 15 Y9501889...
- Page 12 Slide filler panel so it is flush to the modesty panel (fig. 1). Then slide forward so it is flush against the brackets on the modesty panel and flush with the modesty panel bottom edge (fig. 2). Fig. 1 Fig. 2 Steelcase Page 12 of 15 Y9501889...
- Page 13 Slide the run-off so it is flush with the existing unit (Fig. 1). Make sure the run-off is resting upon the steel mending bracket already installed on the existing unit (Fig. 2). Fig. 1 Fig. 2 Steelcase Page 13 of 15 Y9501889...
- Page 14 Below is a top view of what the correct assembly should look like for installation of a filler panel to a unit with an pedestal. Pedestal Back Position Filler Panel 1/16" (1.5 mm) Modesty Panel Steelcase Page 14 of 15 Y9501889...
- Page 15 Secure the plate to the run-off by using eight (8) #8 pan head wood screws 1” long. Steelcase Page 15 of 15 Y9501889...
