HARDI Economy DELTA

Installation Manual

HD10

Table of Contents

Need help?

Do you have a question about the UC 4.5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Norac UC 4.5

Page 1 HARDI Economy DELTA Installation Manual HD10...
Page 2 Reorder P/N: UC4.5-BC-HD10-INST Rev B (HARDI Economy DELTA) NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...
Page 3: Table Of Contents
Contents Introduction ........................ 1 General UC4.5 System Layout ................. 2 Kit Parts ........................3 Ultrasonic Sensor Installation .................. 5 Roll Sensor Installation ....................9 Electrical Installation ....................11 Software Setup ......................
Page 4: Introduction
1 Introduction Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This system is manufactured with top quality components and is engineered using the latest technology to provide operating reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.
Page 5: General Uc4.5 System Layout
2 General UC4.5 System Layout Figure 1 illustrates the general layout of the UC4.5 system components: Figure 1: General UC4.5 System Layout...
Page 6: Kit Parts
3 Kit Parts 3.1 Kit Overview Figure 2: HD10 System Parts...
Page 7 UC5 NETWORK 6 PIN PLUG Do not use high speed power tools/drills when installing hardware. The use of dielectric grease is not recommended on any NORAC electrical connections. To ensure all stainless steel hardware does not gall or seize apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Page 8: Ultrasonic Sensor Installation
4 Ultrasonic Sensor Installation 4.1 Ultrasonic Sensor Serial Number Arrangement When installing the UC5 sensors, start with the smallest serial number on the left-hand side, and proceed to the largest serial number on the right hand side. Each UC5 sensor has a serial number stamped on the sensor housing.
Page 9 4.2 Ultrasonic Sensor Mounting Guidelines The following guidelines will ensure optimal sensor performance and prevent sensor measurement error. These rules should be followed for both the wing sensors and the main lift (middle) sensor. 1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground. 2.
Page 10 4.3 Low Profile Bracket Mounting Guidelines 1. Minimize the distance between the bolts to prevent bending the bracket and prevent the bracket from loosening over time. 2. Ensure the bracket is mounted tight against the bottom of the boom, minimizing the distance between the boom structure and the angled flange.
Page 11 4. Mount the NORAC ultrasonic sensor into the sensor bracket and run the sensor cable either through hole in the back or through the side cut-out and behind the bracket. Ensure the cable is clear of moving parts and will not be damaged during folding.
Page 12: Roll Sensor Installation
5 Roll Sensor Installation Bracket Assembly 1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine screws. Tighten screws to 10 in-lbs (1.1 Nm). 2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the bracket mounting.
Page 13 Roll Sensor Mounting Guidelines: High Pendulum Booms 1. When mounting the roll sensors, mount the lowest serial number on the boom frame and the highest serial number on the chassis (non-pivoting portion of the sprayer). Figure 9: Roll Sensor Mounting on a High Pendulum Boom 2.
Page 14: Electrical Installation

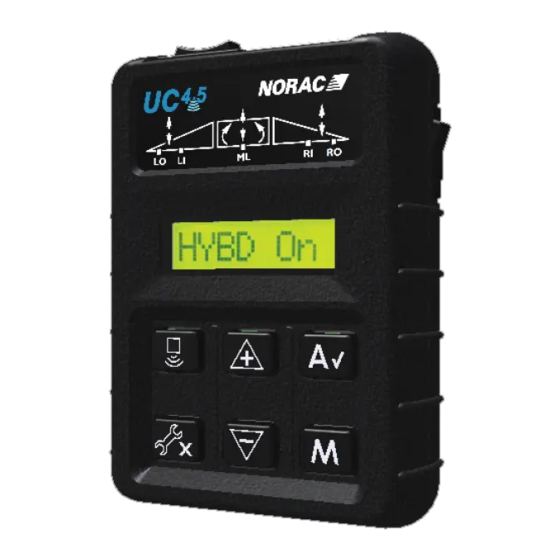

Electrical Installation 1. Install the UC4.5 Control Panel (E01) in the cab of the sprayer. Mount the panel where it will be clearly visible and within easy reach of the operator. A good spot to mount the UC4.5 control panel is on the right hand side of the cab to the Roll Over Protection Bar (ROP).
Page 15 7. Route C11 to the vicinity of the valve block at the rear of the sprayer. Figure 11: Cable Connections 8. Connect the 6-pin tower (T6) on the interface cable (C17) to the mating 6-pin shroud (S6) on C11. 9. Route the free end of C17 to the existing valve block. 10.
Page 16: Software Setup
7 Software Setup 1. Start up the sprayer and test the sprayer’s functionality. The control panel does not need to be powered on for the original boom function switches to operate. Unfold the booms and raise/lower each boom and the main section. Confirm that the cabling and hoses are agreeable to the entire range of motion.
Page 17: Cable Drawings
Cable Drawings 8.1 ITEM C05: 43210-15 - CABLE UC5 NETWORK 18 AWG - 15M...
Page 18 8.2 ITEM C10: 44650-51 - CABLE UC4.5 POWER GENERIC PULL- TYPE...
Page 19 8.3 ITEM C11: 44651-50 - CABLE UC4.5 EXTENSION VALVE GENERIC...
Page 20 ITEM C13: 44658-60 - CABLE UC4 INTERFACE BYPASS AMP SUPERSEAL...
Page 21 8.5 ITEM C17: 44658-105 – CABLE UC4.5 INTERFACE DELTA DEMO...
Page 22 8.6 ITEM C30: 43250-06 – CABLE UC5 BATTERY PIGTAIL FUSED...
Page 23 TOPCON Agriculture Canada 3702 Kinnear Place Saskatoon, SK S7P 0A6 TOPCON Agriculture Americas W5527 Hwy 106 Fort Atkinson, WI 53538 TOPCON Precision Agriculture Europe Avenida de la industria, 35, Tres Cantos, España Spain Support Phone: 888 979 9509 E-mail: tasupportn@topcon.com Web: www.norac.ca...
