  • Page 1 Hardi Aftermarket New Navigator & New Commander Installation Manual HD7 & HD12...
  • Page 2 New Navigator & New Commander NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...

  • Page 3: Table Of Contents

    Contents Introduction ........................ 1     General UC4.5 System Layout ................. 2     Kit Parts ........................3     Existing System Check .................... 10     Ultrasonic Sensor Installation ................12     Roll Sensor Installation .................... 16    ...

  • Page 4: Introduction

    Introduction Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This system is manufactured with top quality components and is engineered using the latest technology to provide operating reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.

  • Page 5: General Uc4.5 System Layout

    General UC4.5 System Layout Figure 1 illustrates the general layout of the UC4.5 system components: Figure 1: General UC4.5 System Layout...

  • Page 6: Kit Parts

    Kit Parts Kit Overview Figure 2: HD7 System Parts...
  • Page 7 Hydraulic Plumbing Figure 3: Single Acting (Force Boom) Hydraulic Plumbing...
  • Page 8 Figure 4: Double Acting (Eagle Boom) Hydraulic Plumbing...
  • Page 9 This manual covers installation using both BSP and flat faced o-ring fittings. Before starting the installation compare the NORAC kit hydraulics to the sprayer hydraulics to be sure the correct fitting style is supplied. When performing the hydraulic install be sure to follow the section for the correct style of fittings.
  • Page 10 HD7 Hydraulics (For Sprayers with BSP Fittings) Item Part Number Name Quantity 44863-01 HOSE ASSEMBLY 122R2-06 36 IN L 6FJX 6FJX 44863-07 HOSE ASSEMBLY 122R2-06 60 IN L 6FJX 6FJX90 44865-63 HYDRAULICS FITTING KIT - HD7 3.5.1 Hydraulic Fitting Kit Details (P/N: 44865-63) Item Part Number Name...
  • Page 11 HD12 Hydraulics (For Sprayers with Flat Faced O-Ring Fittings) Item Part Number Name Quantity 44863-48 HOSE ASSEMBLY 122R2-06 40IN L 6FORX90 6FORX 44863-68 HOSE ASSEMBLY 122R2-06 70IN L 6FORX90 6FORX 44865-78 HYDRAULICS FITTING KIT - HD12 3.6.1 Hydraulic Fitting Kit Details (P/N: 44865-78) Item Part Number Name...
  • Page 12 Optional Pressure and Tank Hose Kit (P/N: 44865-49) If a separate pressure and tank line from the tractor to the NORAC valve block is required, the hoses and fittings can be ordered from NORAC (P/N: 44865-49). Part Number Name Quantity...

  • Page 13: Existing System Check

    Existing System Check 1. Before beginning the install, ensure all hydraulic boom functions are operating properly on the sprayer.  All Fold Functions  Main Lift Function  Wing Tilt Functions  Slant Function 2. Inspect slide pads and wear surfaces for excessive wear. Replace or adjust if necessary. 3.
  • Page 14 8. Record the time (seconds) it takes for a full stroke for all boom functions. To ensure repeatable measurements, take the average of 3 trials. 9. Not all sprayers will have the functions listed below in Figure 6. Ensure the boom has sufficient travel so it does not contact the ground during these tests.

  • Page 15: Ultrasonic Sensor Installation

    Ultrasonic Sensor Installation Bracket Assembly Assemble the breakaway sensor bracket as illustrated in Figure 7, following the instructions below. Figure 7: Breakaway Bracket Assembly 1. Compress the spring and insert it together with the collar into the base. 2. Slide the tube through the assembled part. 3.
  • Page 16 Ultrasonic Sensor Serial Number Arrangement When installing the sensors, start with the smallest serial number on the left-hand side, and proceed to the largest serial number on the right hand side. Each sensor has a serial number stamped on the sensor housing. Apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.
  • Page 17 Ultrasonic Sensor Mounting Guidelines The following guidelines will ensure optimal sensor performance and prevent sensor measurement error. These rules should be followed for both the wing sensors and the main lift (middle) sensor. 1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground (A). 2.
  • Page 18 If the sensor is mounted to this portion of the boom, the system will force the boom downwards towards the ground as the boom folds backwards. 4. Mount the NORAC ultrasonic sensor into the sensor bracket and run the sensor cable through the sensor tube.

  • Page 19: Roll Sensor Installation

    Roll Sensor Installation Bracket Assembly 1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine screws. Tighten screws to 10 in-lbs (1.1 Nm). 2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the bracket mounting.
  • Page 20 Temperature Probe Once the block is mounted, fasten the temperature probe from E03 to the NORAC valve block using the included 3/8x1/2” bolt as illustrated in Figure 14. Figure 14: NORAC Valve Block with Temperature Probe Installed...
  • Page 21 Figure 15: Chassis Roll Sensor Mounted on an FTZ Boom Figure 16: Boom Frame Roll Sensor Mounted on an FTZ Boom...
  • Page 22 Figure 17: Roll Sensors Mounted on an SPC Eagle Boom...

  • Page 23: Electrical Installation

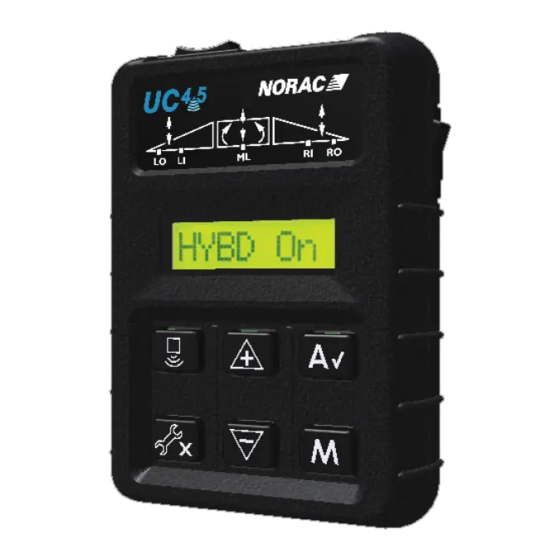

    Electrical Installation 1. Install the UC4.5 Control Panel (E01) in the cab of the sprayer. Mount the panel where it will be clearly visible and within easy reach of the operator. A good spot to mount the UC4.5 control panel is on the right hand side of the cab to the Roll Over Protection Bar.
  • Page 24 10. Connect the wires labeled “LEFT” and “RIGHT” on C16 to the Hardi PCB. Insert the NORAC wires under the screw terminals with the existing Brown HARDI wires (Tilt L + [Black wire] and Tilt R + [White wire]) as shown in Figure 20.
  • Page 25 12. Connect the 6-pin tower on C03 to the 6-pin shroud on C11. Connect the 2-pin connectors on C03 to the NORAC valve block, as shown in Figure 21. 13. The connectors on the valve cable (C03) are marked RIGHT UP, LEFT UP, RIGHT DOWN and LEFT DOWN.

  • Page 26: Hydraulic Installation

    Component failure due to oil contamination is not covered under the NORAC UC4.5 system warranty. It is recommended that a qualified technician perform the hydraulic installation.
  • Page 27 4. Install two 6MB 6MJ (F02) fittings into the “B” ports on the NORAC block. Tighten to 18 ft-lbs (24 Nm). 5. Install the 6MBP (F03) plugs into the “A” ports on the NORAC block and tighten to 18 ft- lbs (24 Nm).
  • Page 28 11. Install the 4FBSPPX 6MJ fittings (F04) onto hoses H02. Install NORAC and Hardi hoses onto the 4MBSPPT 4FBSPPRX tee (F05). Eagle Boom Force Boom Replace this Restrictor Figure 23: Restrictor to be Replaced on the Tilt Cylinders 12. At the Hardi main valve block, remove the hydraulic hoses that run from the “raise” line of the tilt cylinders to the valve block (Figure 24).
  • Page 29 Tighten to 18 ft-lbs (24 Nm). 3. Insert the two orifices (F01) into the “B” ports with the notch facing out. (Figure 25) 4. Install two 6MB 6MJ (F02) fittings into the “B” ports on the NORAC block. Tighten to 18 ft-lbs (24 Nm).
  • Page 30 12. Remove the Hardi hoses from the “lower” line (the “A” line) of the cylinder and remove the restricted straight BSPP fittings. (Figure 26) 13. Install the 4FBSPPX 6MJ fittings (F04) onto hoses H02. Install NORAC and Hardi hoses onto the 4MBSPPT 4FBSPPRX tee (F05).
  • Page 31 4. Install two 6MB 6MOR (F02) fittings into the “B” ports on the NORAC block. Tighten to 18 ft-lbs (24 Nm). 5. Install the 6MBP (F03) plugs into the “A” ports on the NORAC block and tighten to 18 ft- lbs (24 Nm).
  • Page 32 4MORT tee (F05) between the valve block and hoses. Install the 4FOR 6MOR fittings (F04) onto hoses H01. Connect hoses H01 to each of the tee fittings and route to the NORAC valve block. Install the corresponding hose to the pressure and tank port on the NORAC valve block.
  • Page 33 8. The plumbing for the hydraulic circuit is shown schematically in Figure 4. 9. Install the 90 degree fittings on hoses H02 onto the “A” and “B” ports on the NORAC valve block. Route the free ends of the hoses to each of the wing tilt cylinders.
  • Page 34 4MORT tee (F05) between the valve block and hoses. Install the 4FOR 6MOR fittings (F04) onto hoses H01. Connect hoses H01 to each of the tee fittings and route to the NORAC valve block. Install the corresponding hose to the pressure and tank port on the NORAC valve block.
  • Page 35 Valve Block Mounting Ensure that no hydraulic components will interfere with any sprayer parts or be pulled tight at any time. The recommended mounting location is on the rear of the boom main section near the Hardi valve block. 1. A suitable mounting location for the valve block is illustrated in Figure 34. 2.

  • Page 36: Software Setup

    Software Setup 1. Start up the sprayer and test the sprayer’s functionality. The NORAC control panel does not need to be powered on for the original boom function switches to operate. Unfold the booms and raise/lower each boom and the main section.

  • Page 37: 10 Cable Drawings

    10 Cable Drawings 10.1 ITEM C03: 44656D – CABLE VALVE VARIABLE RATE DT...
  • Page 38 10.2 ITEM C05: 43210-20 - CABLE UC5 NETWORK 18 AWG - 20M...
  • Page 39 10.3 ITEM C10: 44650-51 - CABLE UC4.5 POWER GENERIC PULL- TYPE...
  • Page 40 10.4 ITEM C11: 44651-50 - CABLE UC4.5 EXTENSION VALVE GENERIC...
  • Page 41 10.5 ITEM C12: 44658-42 - CABLE UC4 INTERFACE AMP ML ONLY...
  • Page 42 10.6 ITEM C13: 44658-60 - CABLE UC4 INTERFACE BYPASS AMP SUPERSEAL...
  • Page 43 10.7 ITEM C16: 44658-49 - CABLE UC4 VALVE ROLL PIGTAIL...
  • Page 44 10.8 ITEM C30: 43250-06 – CABLE UC5 BATTERY PIGTAIL FUSED...
  • Page 45 TOPCON Agriculture Canada 3702 Kinnear Place Saskatoon, SK S7P 0A6 TOPCON Agriculture Americas W5527 Hwy 106 Fort Atkinson, WI 53538 TOPCON Precision Agriculture Europe Avenida de la industria, 35, Tres Cantos, España Spain Support Phone: 888 979 9509 E-mail: tasupportn@topcon.com Web: www.norac.ca...
