Norac UC4.5 SUMMERS Installation Manual

Spray height control system pull-type with proxy switch sense
Hide thumbs Also See for UC4.5 SUMMERS:
Table of Contents

Advertisement

Quick Links

Download this manual
SUMMERS
Pull-Type with Proxy Switch Sense
Installation Manual
SM2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC4.5 SUMMERS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Norac UC4.5 SUMMERS

Summary of Contents for Norac UC4.5 SUMMERS

  • Page 1 SUMMERS Pull-Type with Proxy Switch Sense Installation Manual...
  • Page 2 Reorder P/N: UC4.5-BC-SM2-INST Rev C (SUMMERS Pull-Type with Proxy Switch Sense) NOTICE: NORAC Systems International Inc. reserves the right to improve products and their specifications without notice and without the requirement to update products sold previously. Every effort has been made to ensure the accuracy of the information...

  • Page 3: Table Of Contents

    Contents Introduction ........................ 1     General UC4.5 System Layout ................. 2     Kit Parts ........................3     Pre-Install Checklist ....................7     Ultrasonic Sensor Installation .................. 8     Roll Sensor Installation .................... 12     Electrical Installation ....................

  • Page 4: Introduction

    Introduction Congratulations on your purchase of the NORAC UC4.5 Spray Height Control System. This system is manufactured with top quality components and is engineered using the latest technology to provide operating reliability unmatched for years to come. When properly used the system can provide protection from sprayer boom damage, improve sprayer efficiency, and ensure chemicals are applied correctly.

  • Page 5: General Uc4.5 System Layout

    General UC4.5 System Layout Figure 1 illustrates the general layout of the UC4.5 system components: Figure 1: General UC4.5 System Layout...

  • Page 6: Kit Parts

    Kit Parts Kit Overview Figure 2: SM2 System Parts...
  • Page 7 Hydraulic Plumbing Figure 3: SM2 Hydraulic Plumbing...
  • Page 8 UC5 NETWORK 6 PIN PLUG 44963D VALVE BLOCK ASSEMBLY 2 STATION CC/LS PROP DT 4 BOLT Optional Main Lift Kit An optional main lift sensor kit is available for purchase from NORAC. Part Number Name UC4.5-SM3 UC4.5 SUMMERS ENHANCED STABILITY AND PROP MAIN LIFT OPTION...
  • Page 9 P - PIPE Do not use high speed power tools/drills when installing hardware. The use of dielectric grease is not recommended on any NORAC electrical connections. To ensure all stainless steel hardware does not gall or seize apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.

  • Page 10: Pre-Install Checklist

    Pre-Install Checklist The pre-install checklist is necessary to check the existing sprayer functionality before the installation. 1. Unfold the sprayer over a flat, unobstructed area (i.e. no power lines…etc.). 2. Ensure all boom-fold operations are functional (place a check mark in boxes below). 3.

  • Page 11: Ultrasonic Sensor Installation

    Ultrasonic Sensor Installation Bracket Assembly Assemble the breakaway sensor bracket as illustrated in Figure 5, following the instructions below. Figure 5: Breakaway Bracket Assembly 1. Compress the spring and insert it together with the collar into the base. 2. Slide the tube through the assembled part. 3.
  • Page 12 Ultrasonic Sensor Serial Number Arrangement When installing the sensors, start with the smallest serial number on the left-hand side, and proceed to the largest serial number on the right hand side. Each sensor has a serial number stamped on the sensor housing. Apply a light coating of the supplied Permatex Anti-seize grease to all threaded parts upon installation.
  • Page 13 Ultrasonic Sensor Mounting Guidelines The following guidelines will ensure optimal sensor performance and prevent sensor measurement error. These rules should be followed for both the wing sensors and the main lift (middle) sensor. 1. In its lowest position, the sensor must be 9 inches (23 cm) or more from the ground (A). 2.
  • Page 14 If the sensor is mounted to this portion of the boom, the system will force the boom downwards towards the ground as the boom folds backwards. 4. Mount the NORAC ultrasonic sensor into the sensor bracket. A problem can arise if a sensor is not mounted correctly. It is possible for the sensor to read off of the boom instead of the ground.

  • Page 15: Roll Sensor Installation

    Roll Sensor Installation Bracket Assembly 1. Securely mount the roll sensors to the included roll sensor brackets using the #6 machine screws. Tighten screws to 10 in-lbs (1.1 Nm). 2. The orientation of the mounted roll sensor to the roll sensor bracket will depend on the bracket mounting.
  • Page 16 Roll Sensor Mounting Guidelines: Trapeze-Suspended Booms 1. When mounting the roll sensors, mount the roll sensor without the temperature probe on the trapeze link (boom frame) and the roll sensor with the temperature probe on the trapeze support (chassis). For optimal performance, minimize the distance from the boom frame roll sensor to the pivot point (A) and minimize the vertical distance between the chassis roll sensor and the pivot point (B).
  • Page 17 Temperature Probe Once the block is mounted, fasten the temperature probe from E03 to the NORAC valve block using the included 3/8x1/2” bolt as illustrated in Figure 13. Figure 13: NORAC Valve Block with Temperature Probe Installed...

  • Page 18: Electrical Installation

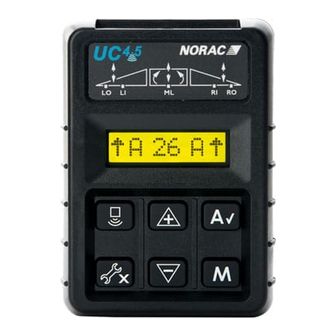

    Electrical Installation 1. Install the UC4.5 Control Panel (E01) in the cab of the sprayer. Mount the panel where it will be clearly visible and within easy reach of the operator. A good spot to mount the UC4.5 control panel is on the right hand side of the cab to the Roll Over Protection Bar.
  • Page 19 13. Connect the 6-pin tower on C03 to the 6-pin shroud on C11. Connect the 2-pin connectors on C03 to the NORAC valve block, as shown in Figure 16. 14. The connectors on the valve cable (C03) are marked RIGHT UP, LEFT UP, RIGHT DOWN and LEFT DOWN.
  • Page 20 Figure 16: Valve Cable Connections 15. Fasten the 8-way coupler to the boom with cable ties. Connect P6 on C11 to the 8-way coupler. 16. Connect both roll sensors to the 8-way coupler. 17. Connect two cables (C05) to the 8-way coupler and route along the booms to the wing sensors.

  • Page 21: Hydraulic Installation

    4. Install the 6MB-6MJ (F02) fittings into the “B” ports on the NORAC block. Tighten to 18 ft-lbs (24 Nm). 1. Install the 6MBP plugs (F04) into the "A" ports on the NORAC block. Tighten to 18 ft-lbs (24 Nm).
  • Page 22 Valve Block Mounting Ensure that no hydraulic components will interfere with any sprayer parts or be pulled tight at any time. 1. A suitable mounting location for the valve block is illustrated in Figure 18. 2. Insert the threaded rod into the block and use a hex nut to hold the rod. The block holes are 3/8”...
  • Page 23 Summers valve block. Install the 6FJXR-6MJT (F03) fittings into the ports where the hoses were connected. Connect the existing hoses to F03. 3. Connect hoses H03 to F03 and route to the NORAC valve block. Connect H03 to the “B” ports on the NORAC valve block.

  • Page 24: Completing The Installation

    Completing the Installation 1. Start up the sprayer and test the sprayer’s functionality. The NORAC control panel does not need to be powered on for the original boom function switches to operate. Unfold the booms and raise/lower each boom and the main section.

  • Page 25: 10 Cable Drawings

    10 Cable Drawings 10.1 ITEM C03: 44656D – CABLE VALVE VARIABLE RATE DT...
  • Page 26 10.2 ITEM C05: 43210-20 - CABLE UC5 NETWORK 18 AWG - 20M...
  • Page 27 10.3 ITEM C10: 44650-51 - CABLE UC4.5 POWER GENERIC PULL- TYPE...
  • Page 28 10.4 ITEM C11: 44651-50 - CABLE UC4.5 EXTENSION VALVE GENERIC...
  • Page 29 10.5 ITEM C13: 44658-70 – CABLE UC4 INTERFACE REMOTE MANUAL DT...
  • Page 30 10.6 ITEM C16: 44658-69 – CABLE UC4 INTERFACE ROLL DT...
  • Page 31 10.7 ITEM C30: 43250-06 – CABLE UC5 BATTERY PIGTAIL FUSED...
  • Page 32 TOPCON Agriculture Canada 3702 Kinnear Place Saskatoon, SK S7P 0A6 TOPCON Agriculture Americas W5527 Hwy 106 Fort Atkinson, WI 53538 TOPCON Precision Agriculture Europe Avenida de la industria, 35, Tres Cantos, España Spain Support Phone: 888 979 9509 E-mail: tasupportn@topcon.com Web: www.norac.ca...
