Rice Lake iDimension Plus Manager's Manual

Rice Lake iDimension Plus Manager's Manual

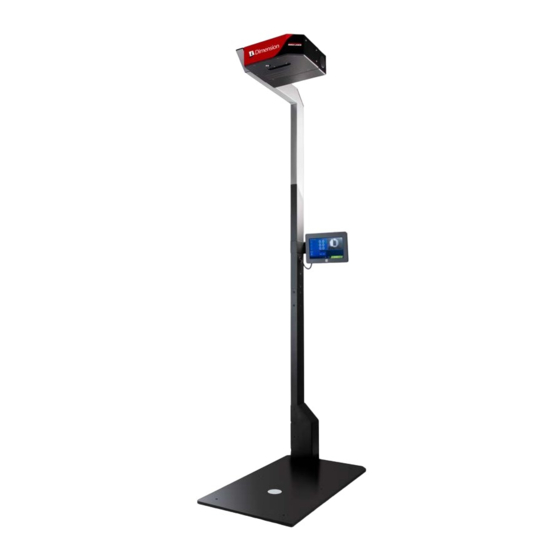

Static dimensioning system
Hide thumbs Also See for iDimension Plus:
Table of Contents

Advertisement

Quick Links

Download this manual

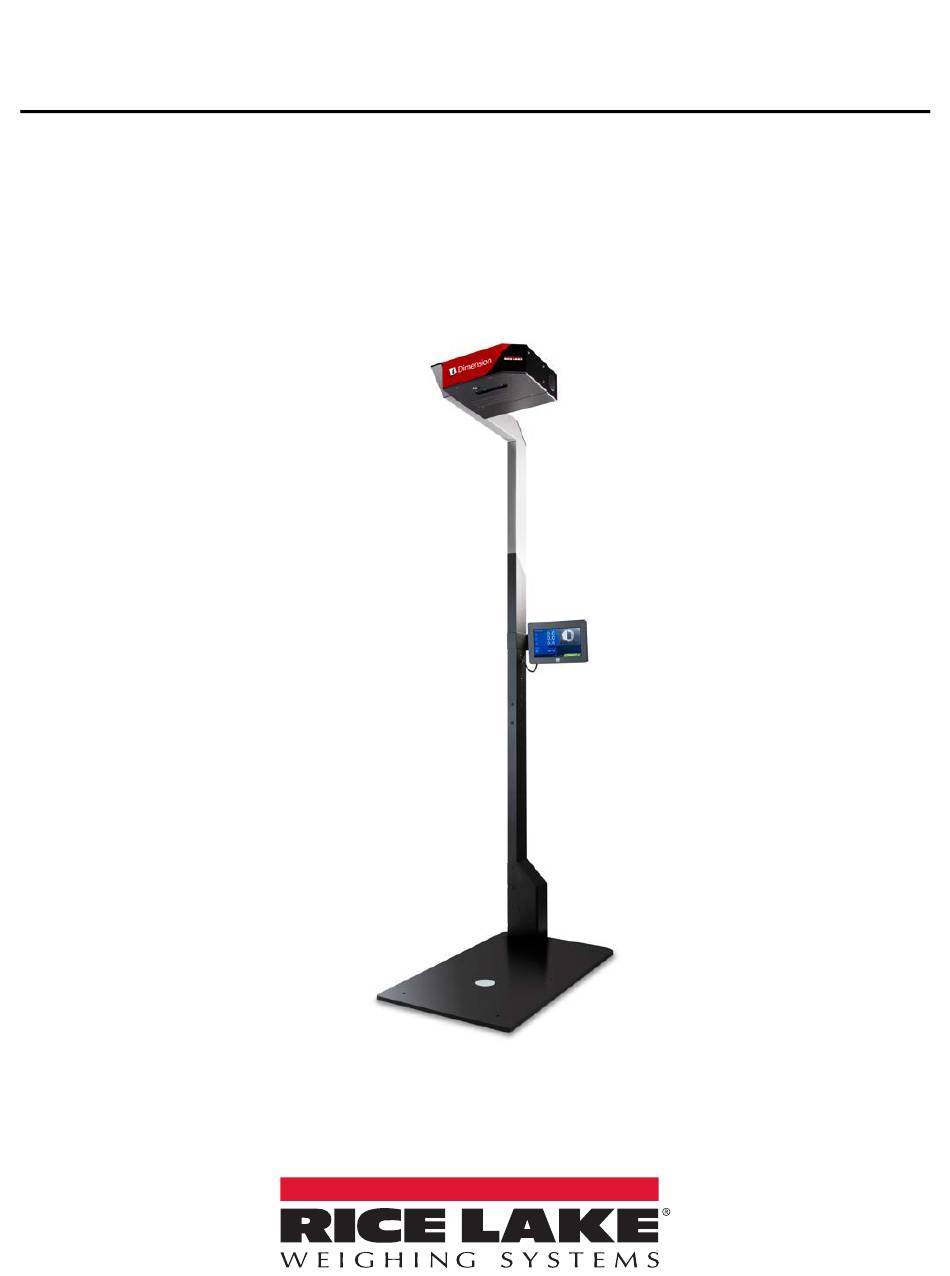

iDimension
Plus
®
Static Dimensioning System
Managers Guide
December 16, 2019
PN 195441

Advertisement

Table of Contents
loading

Related Manuals for Rice Lake iDimension Plus

Summary of Contents for Rice Lake iDimension Plus

  • Page 1 iDimension Plus ® Static Dimensioning System Managers Guide December 16, 2019 PN 195441...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    Network Security ................33 Technical training seminars are available through Rice Lake Weighing Systems.
  • Page 4 12.0 Specifications ............... . . 62 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost.

  • Page 5: Introduction

    Introduction Introduction The QubeVu Manager is a program provided to set up and configure the iDimension Plus and is recommended for use by technical system administrators. When interfacing this device to a third parties software program, please reference the software manufacturer’s documentation for setup and configuration parameters as necessary.

  • Page 6: Regulatory Information

    Changes or modifications not expressly approved by Rice Lake Weighing Systems could void the user’s FCC granted authority to operate the equipment. Network Connection To establish a secure connection to the iDimension Plus, connect the unit via web browser or Ethernet. DHCP is enabled by default. 1.3.1...
  • Page 7 Figure 1-2. Run Shell Confirmation 4. Network Connections will display. Figure 1-3. Network Connections 5. Right-click on a Local Area Connection. Figure 1-4. Network Options 6. Select Properties. Figure 1-5. Network Properties © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 8 Plus Internet Protocol Version 4 (TCP/IPv4) by double-clicking. Select Figure 1-6. Local Area Connection Properties 8. Select Use the following IP address. Figure 1-7. IP Address Selection 9. Change the IP address to 169.254.1.10. Figure 1-8. IP Address Configuration 10.

  • Page 9: Qubevu Login Screen

    QubeVu Login Screen QubeVu Login Screen The Qubevu Manager is the firmware installed on the iDimension Plus dimensioning head that provides more advanced configuration or features, system diagnostics and calibration not accessible from the touch screen operator display. To access the QubeVu Manager firmware, connecting the device to an Ethernet port on a computer.

  • Page 10: Status

    Plus Status The status of the connected device is displayed in the upper right corner of all pages. Example: User: Logged into the device under the Admin mode. Select Log Out to return to the standard user mode. Device: The default setting is the serial number of the iDimension. This can be renamed within the Network Settings while in the Admin mode.

  • Page 11: Restart/Reboot Idimension

    Select Restart to restart the service currently running on the device. Select Reboot to reboot the operating system. Rebooting the iDimension Plus takes several minutes and power cycles the unit. If USB scale is connected, turn the scale back on to perform a transaction.

  • Page 12: Device Information

    Plus Device Information The Device Information button provides access to view the serial number, software version number and to access the Inspector menu. The Device Information tab displays specific information about the device. Figure 2-6. QubeVu Inspector Device Information Tab www.RiceLake.com...

  • Page 13: Change Log

    • Use the arrow keys on the PC keyboard to scroll through the results; Select Download to export the log to a .csv file Figure 2-8. Change Log Data © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 14: Long Term Storage Log

    Plus Long Term Storage Log Long term storage is necessary to satisfy particular Legal for Trade requirements in certain jurisdictions. The measurement data stored in Long Term Storage contains all relevant information necessary to reconstruct an earlier measurement. The stored data is protected against accidental, unintentional and intentional changes and can be authentically traced back to the measurement which generated them.

  • Page 15: Displays

    Operator Display The Operator Display simulates the configuration of the Touch Screen USB display. See the iDimension Plus Operation Manual (PN 195439) for a description of each function. The Operator Display can be configured using the Admin/Setup Menu/Displays administrative function.

  • Page 16: Demo Display

    Demo Display Demo Display is intended for use during demonstrations and testing the effects of configuration changes. The Demo Display page can be used to help the Rice Lake Weighing Systems technical support team in troubleshooting the applications requirements. Figure 2-14. Demo Display Status messages are always displayed within the display screen menus.

  • Page 17: Operator Tools

    Operator Tools Operator Tools This section provides an overview of iDimension Plus operator tools instructions. Extract Data Extract Data allows the user to view the status of the scheduled scan data extract and perform a manual export of scan data.

  • Page 18: Admin Tools

    Plus Admin Tools This section provides an overview of iDimension Plus admin tools instructions. Admin Tools Menu Admin Tools are used for configuring, calibrating, defining, upgrading, backing up and running diagnostics on the system. To enter the Admin Tools menu use the following steps: 1.

  • Page 19: Edit/Cancel/Save Keys

    The Save key saves all changes made during the edit process within the page and a sub menu tab. Upon save, the unit may restart and return to the home screen. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 20: Setup

    Plus Setup This section provides an overview of iDimension Plus setup instructions. Setup Menu Select to enter the setup menu. Figure 5-1. QubeVu Setup General Settings General setting provides access to configuring the operation of the unit, enable flat detection, configure the scale and other external interface methods for retrieving data.

  • Page 21: General Settings Parameters

    USB display; Clear the platform to return to ready state; If the scale is receiving power from the USB port, check to make sure the scale is on and working properly Table 5-1. General Settings Parameters © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 22: Scale

    The following is a list of Compatible USB HID scales including the Vendor ID and product ID; The following example is is for a Rice Lake Benchpro Scale; 1C19 is the vendor ID and 0002 is the product id; Use a comma to separate the values...

  • Page 23: Display Page

    Table 5-4. Use Scale Stable Status Selections If the required scale is not listed, contact Rice Lake Weighing Systems to purchase a BenchPro scale. Note 5.2.3...

  • Page 24: External Interfaces

    Plus External Interfaces QubeVu provides additional external interfaces to facilitate integration with client applications and backend systems. These interfaces are configured from the General Settings tab. This document describes the intended use and configuration. For detailed information on using these interfaces refer to the iDimension API guide.

  • Page 25: Serial Interface

    1. Select QubeVu or Cubiscan 110/150 from the serial interface dropdown list. Figure 5-6. Adapter Select 2. Click Change before plugging in the USB – Serial cable. iDimension Plus begins scanning for a new cable. Figure 5-7. Cable Scan © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 26 Plus 3. Plug the cable into the USB port on iDimension or USBhub. The cable will be detected. 4. Select Ok to proceed. 5. Select Save to compete the serial emulation setup. Figure 5-8. Cable Detected The status of the serial port can be viewed from the General Settings. The status is only refreshed when the page is refresh or after selecting the Change…...

  • Page 27: Data Extraction

    Setup 5.3.2 Data Extraction The iDimension Plus stores the results of all successful scans in non-volatile memory for a configured period of time. The information stored includes data available in long term storage. See Section 11.2 on page 59 for sample file and configuration examples.

  • Page 28: Date/Time

    Plus 5.3.3 Date/Time The Date/Time tab is used to change date and time settings. The date and time are used to time stamp configuration changes which affect the Legal for Trade certification. 1. Select Date/Time tab from General Settings and current date and time are displayed.

  • Page 29: Measurement Settings Tab

    The Results parameter determines the handling of raw results. Parameter Description Raw Dimension Instructs the iDimension Plus to return raw results which have not been rounded to the nearest division; Default: Off Table 5-11. Results © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 30 Switch Resolution Delay (ms) A minimum period of time, in milliseconds, that the system should pause after switching the resolution of the camera; Do not change this setting unless instructed to by Rice Lake Weighing; Default value: 200 Valid values: 100ms – 500ms Image Format The format of the low resolution image is available to capture;...
  • Page 31 2. Select Ok to restore the factory default settings or if backing up from a file, select Browse to select a backup file. 3. Select Ok. The iDimension Plus restarts after the restore. Delete Parallax This command must not be used unless directed by the Rice Lake Weighing Systems Dimensioning Team. IMPORTANT Factory calibration may be required.
  • Page 32 US Customary (pole mount) – Configured the iDimension Plus for inches and allows configuration of available settings Metric (XL mount) – Configures the iDimension Plus XL for metric and allows configuration of available settings US Customary (XL mount) – Configured the iDimension Plus XL for inches and allows configuration of available settings Warm-up Threshold Default: 0;...

  • Page 33: Display Settings

    The customer display is used in specific applications when a second display is attached or a web browser is used for customer facing applications. Figure 5-16. Display Settings The scan button and live image feed are not available in the customer display. Note © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 34 Plus Parameter Description Display Screen Version Default: Latest – Display screen version #2 1 – Displays dimensions and weight only 2 – Displays live camera feed in “Ready,” item image in “Remove,” dimensions and weight display panel Scan Button Default: No Scan button Select a capture definition from the available list to add a Scan button onto the USB Operator Display;...

  • Page 35: User

    • Maximum length: 511 characters • All printable characters are allowed except Unicode characters • Password may not resemble the last password Factory assistance is required to reset the password. Note © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 36: Network

    DHCP Have the network administrator verify if the iDimension Plus is to be set up on the network using the Dynamic Host Configuration Protocol (DHCP); If DHCP is checked, a unique Host Name for this device must be defined; The name is used to access the device from the Manager Tools in the future;...

  • Page 37: Network Security

    Select Upload to transfer the information from the PC to the iDimension Plus. Network Security settings allow enhanced security by encrypting communications with the iDimension Plus using the Hypertext Transfer Protocol (HTTPS). By default, communication with the iDimension Plus is via HTTP.

  • Page 38: Calibration Menu

    Use the calibration tool to set the camera settings and calibrate the Depth, Low Resolution and High Resolution cameras. This is typically done once at setup. If the iDimension Plus is moved to a different location or the type of scale has changed, the calibration settings are checked to ensure correct calibration.
  • Page 39 Default: 100 g; Valid values: 0-200 g Table 6-2. Locking Parameters Relocking Relocking is the iDimension Plus ability to dimension a new object even in cases when a ready state is not detected due to particularly fast operations. Parameter Description Diff Center Enabled Determines if the system relocks based on the detection of a shift in the object’s center;...
  • Page 40 Figure 6-3. Factory Restore 2. Select Ok to restore the factory default settings or if backing up from a file. 3. Select Browse to select a backup file. 4. Select Ok. The iDimension Plus restarts after the restore. www.RiceLake.com Visit our website...

  • Page 41: Calibration Settings

    The Zone of Interest represents the detection area to be used for item dimensioning. Items must be placed at least partially within the Zone of Interest. Figure 6-5. Zone of Interest If the background of the dimensioning area is reflective, adjust the Zone of Interest to approximately 3'' x 3''. Note © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 42: Zone Of Interest Configuration Mode

    Plus 6.2.2 Zone of Interest Configuration Mode To review the current camera calibration settings within QubeVu, see the following procedure: 1. From the Admin menu, select to enter the setup menu. Figure 6-6. Admin Tools to set parameters within the Calibration Settings tab.
  • Page 43 Ensure the Work Area is larger than the Zone of Interest. Note 6. Select Save to continue. The system restarts. Ensure the platform is clear of obstructions to return to the ready state. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 44: Camera Calibration From Qubevu Manager

    Plus Camera Calibration from QubeVu Manager For camera calibration information, see the following procedures: 6.3.1 Camera Calibration The system is factory calibrated however it is may be required to perform a calibration if the system has moved to a different location, new scale is being used or the system is providing inaccurate dimensions.
  • Page 45 8. Review each tab to ensure the calibration object was successfully captured and no other object had mistakenly been placed in the view of the camera. 9. Select Save. The unit automatically restarts to apply the camera calibrations. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 46 Plus Calibration Unsuccessful displays, the calibration has failed. The red cross hairs out of alignment indicate they are out of alignment and a new calibration is required. 1. Select Cancel and perform a new calibration. 2. Redraw the rectangles within the two tabs.

  • Page 47: Capture Definitions

    Capture Definitions Capture Definitions This section provides an overview of iDimension Plus capture definitions instructions. Unique capture definitions can be created with external triggering, or modify the existing capture definitions. A programmer can change the capture definition, or define a new one, when integrating with a client application.

  • Page 48: New Capture Definition Profile

    Timeout Default: 0; the system does not time out Low Resolution If checked, the iDimension Plus will create a low resolution camera image; Available through the web-service API Camera Capture Markings If checked, the iDimension Plus marks the low resolution image with the selected information: Date and Time –...

  • Page 49: Firmware Upgrade

    The Administrator defined a username and password during the initial setup process. The username and password Note are required to log into and access the iDimension Plus Admin Tools. Firmware Upgrade Tab The Firmware Upgrade tab is used to choose the option of uploading the firmware upgrade file.

  • Page 50: Usb Drive Or Network Share

    Do not interrupt the upload process. An opportunity to stop the firmware upgrade is available after the file is Note uploaded. 8.1.2 Local File Select choose file to access and open the file from the local directory to the computer. Select Upload to upload the firmware to the embedded processor of the iDimension Plus. www.RiceLake.com Visit our website...

  • Page 51: Updating Firmware

    The system will enter into a stopped state and return to normal operating mode within a few minutes. Custom Logo Tab The QubeVu manager can be customized with a company logo. Please contact Rice Lake Weighing Systems Dimensioning Team to use this feature as the logo file must be pre-approved.

  • Page 52: Backup And Restore

    The Backup function creates a backup file of all settings. It is recommended to complete a back up after the initial setup of the iDimension Plus. The backup file is saved to a PC folder as an XML file. A backup file can be sent to the factory to help troubleshoot the device.

  • Page 53: Restore

    2. Select Ok to restore all settings from the factory calibration or select Browse to select a saved file from the PC. 3. If Browse was selected in 2, find and select the desired backup file. Select Ok to restore settings. Step © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 54: Diagnostics

    The Administrator defined a username and password during the initial setup process. Note The username and password are required to log into and access the iDimension Plus Admin Tools. 10.1 Diagnostics Menu The Diagnostics menu provides tools to help troubleshoot the device. The operator may need to run a factory test, individually select a test by selecting Each test will provide a pass or fail.

  • Page 55: Scale Test

    Field Test Description Depth Sensor Perform a testing on the iDimension Plus main sensor to determine if operational; Use this test if the system is measuring accurately Scale Tests the scale parameters configured in the setup mode and the scale are communicating; Check the interface cables between the scale and PC if a fail displays or upon entry of scale configuration Camera Level Uses the flat detection circle on the base plate to determine if the main head is level;...

  • Page 56: System Log

    Plus 10.1.3 System Log The system log storage data is configured in the setup menu. For troubleshooting, the file may be required to be sent to the factory for engineering analysis and troubleshooting. The log view can be customized by type (view all or view info, debug or error messages only) or by order (view the latest first or the earliest first).

  • Page 57: Tcp Interface

    1. Select QubeVu or Cubiscan 110/150 from the TCP interface dropdown list. Figure 10-6. Select TCP Interface 2. Set the TCP port. 3. Click Save to compete the TCP emulation setup. Figure 10-7. Select TCP Port © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 58: Client/Pc Setup

    Plus 10.2.2 Client/PC Setup In order for the client application to talk to QubeVu via TCP the following pre-requisites must be installed and configured: • Com0Com • Com2TCP 1. Download and install Com0Com: • x86: https://storage.googleapis.com/google-code-archivedownloads/v2/code.google.com/powersdr-iq/ setup_com0com_W7_x86_signed.exe • x64: https://storage.googleapis.com/google-code-archivedownloads/ v2/code.google.com/powersdr-iq/...

  • Page 59: Http Interface

    Refer to the API guide for detailed information on using the interface. 10.3.1 Configuring the HTTP Interface 1. Select Text from the HTTP interface dropdown list. Figure 10-9. HTTP Interface Dropdown List 2. Set the HTTP port. Figure 10-10. Set HTTP Port © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 60 Plus 3. The HTTP output format is used to configure the data output. The default string outputs data in a format compatible with the ParcelCube 900 R2 system. 4. Use the macros key to configure a new string. 5. Select Save to save the configuration.

  • Page 61: Appendix

    Appendix 11.0 Appendix This section provides an overview of the iDimension Plus appendix. 11.1 Status Messages Status and error messages are visible from the QubeVu Manager Demo Display. The Device is in configuration mode. Figure 11-1. Data Extraction Configuration Example Item No.

  • Page 62: Extended Status Messages

    Plus 11.1.1 Extended Status Messages Status Description ScaleNotStable This is set during tracking if the scale indicates that the value returned is not a stable value; This is only used when a recognized scale is connected to the system; Processing will not progress to the next step until this flag is cleared by receiving a stable weight...

  • Page 63: Appendix C: Sample Xsl File

    (https://www.dropbox.com/sh/0idltsx9z334vzd/AACYaRBs_iam8PMuFd7L5vIsa?dl=0) <?xml version="1.0" encoding="UTF-8"?> <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:qv="http://postea.com/WebServices/ QubeVu"> <xsl:output method="text"></xsl:output> <xsl:template match="/">ScanId,DateTime,Length,Width,Height,DimUnit <xsl:apply-templates/> </xsl:template> <xsl:template match="qv:QVStatus"> <xsl:apply-templates select="qv:CapturedData"/> </xsl:template> <xsl:template match="qv:CapturedData"> <xsl:value-of select="@CaptureId"/>,<xsl:value-of select="qv:DateTime"/>,<xsl:value-of select="qv:Dimensions/qv:Length"/>,<xsl:value-of select="qv:Dimensions/qv:Width"/>,<xsl:value-of select="qv:Dimensions/qv:Height"/>,<xsl:value-of select="qv:Dimensions/@DimUnit"/><xsl:text>&#13;</xsl:text> </xsl:template> </xsl:stylesheet> © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 64: Data Extraction Configuration Example

    Plus 11.2.1 Data Extraction Configuration Example Below is an example of a Data Extraction: Figure 11-2. Data Extraction Configuration Example The Data Extraction tab is split into two panes. The left pane specifies what data is to be collected and the right pane specifies the data extraction method.

  • Page 65: Data Extraction Definition

    The image files for each scan are stored in individual folders, identified by the numeric CaptureID of the scan. The example above contained five scans so the five images are in the folders named 302151–302155. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 66: Specifications

    Height 63.8'' (162 cm) Weight 28.5 lb (13 kg) The iDimension Plus complies with Part 15 of the FCC Rules. Power Requirements Operation is subject to the following conditions: Single power source 110–240 V external power supply, US power cord •...
