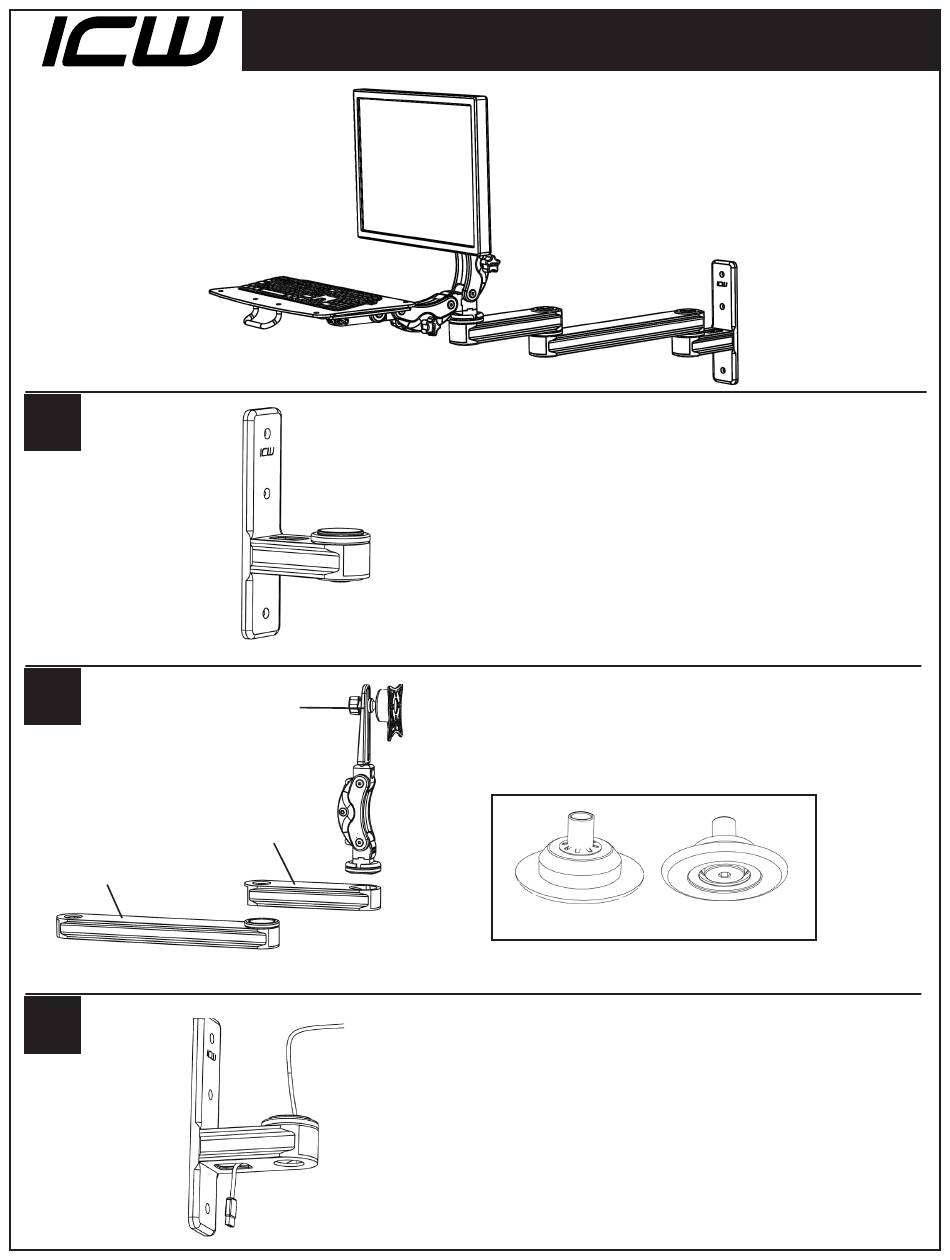

T2 Wall Mount Installation

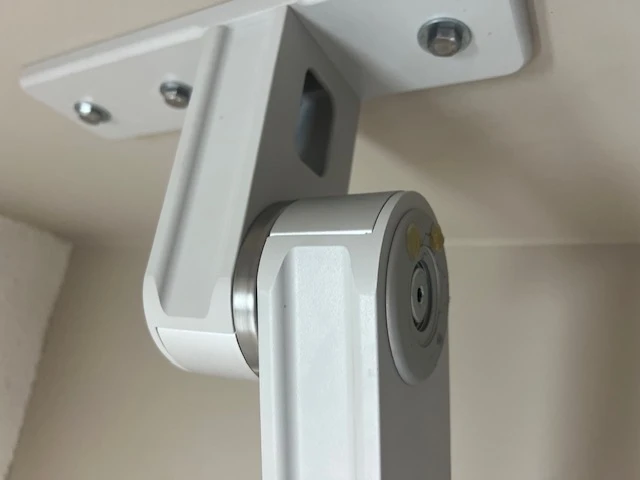

Wall Mount
Monitor
mount
Front arm
Locate a stud in the wall you intend to mount your arm on
and remove the wall mount from the box. Mark the top hole,
drill 11/64 pilot hole and insert an ICW provided #14 screw
and tighten slightly. Using a level, mark the two lower holes
and drill pilot holes, insert the last two #14 screws and, with
the mount level, tighten all screws securely.
Note: ICW supplies #14 wood screws. If installing onto
metal studs you will need to replace with proper metal stud
fasteners. All hardware used to secure wall mount must have
a properly countersunk head.
Do not disassemble these bearing packs.
Feed your computer monitor cords and any other cords
down through the opening in the wall mount - passing
through the bearing.
Note: When measuring for the length of the cords, be
sure to allow enough extra cord to accommodate the tilt
and rotation of the monitor.
