Wall-Mounted Installation - Sungrow Logger 3000 User Manual

Fix the Logger3000 according to the sequence of bolt, hanger, rack, and
Step 4
nut.

5.3.2 Wall-mounted Installation

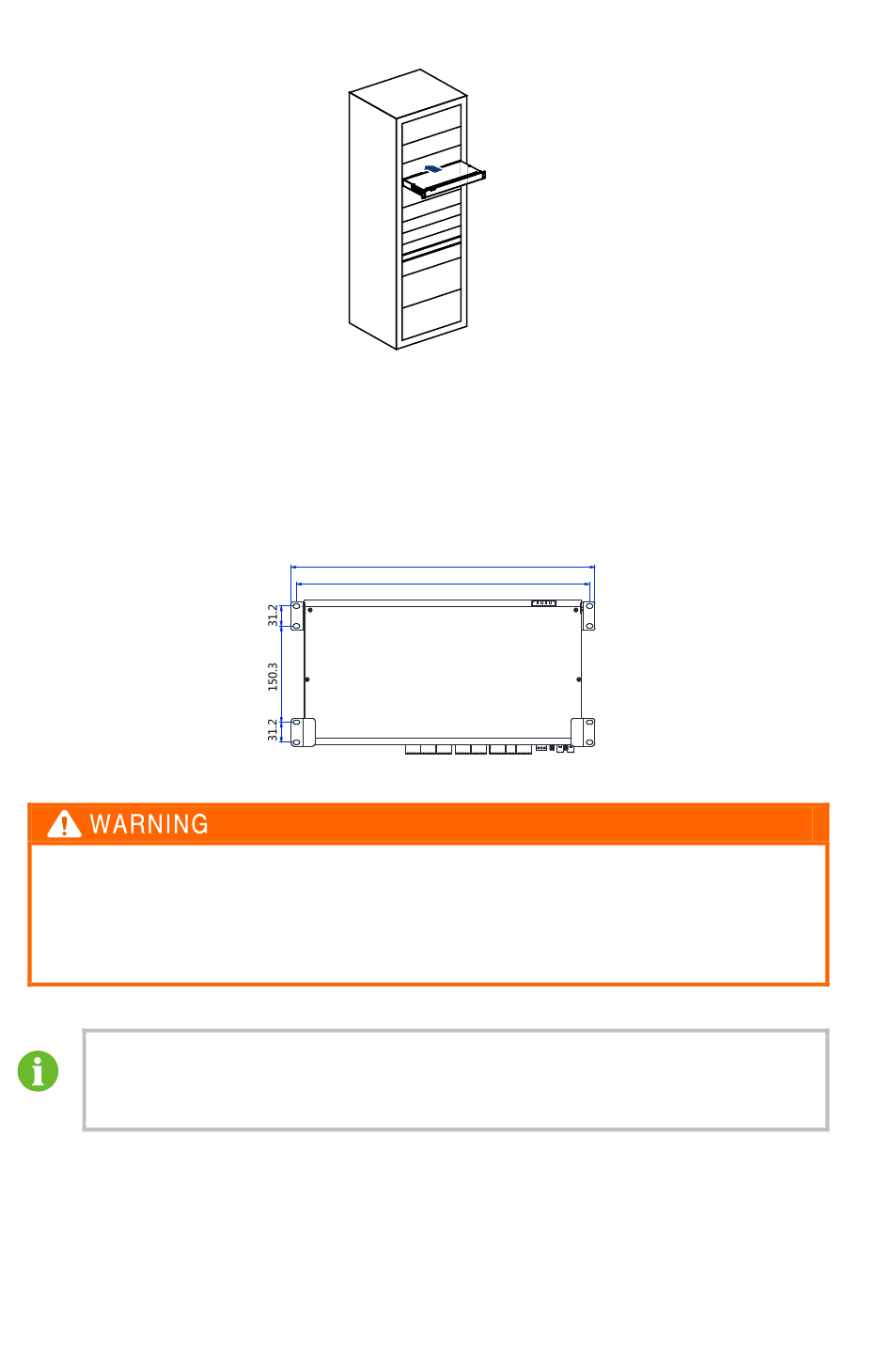

Fix the Logger3000 through the hangers on the four corners. The installation
distance of each hanger is shown in the figure below.
Keep the weight of the Logger3000 in mind during installation of the
Logger3000.
Improper handling of the device may cause device tilting or falling
down and may cause personal injury.
It is recommended to install the Logger3000 1.5m higher than the
ground and leave at least 0.5m for the mechanical exterior for easy
maintenance.
Prepare the percussion drilling, expansion solenoid, washer, tapping
Step 1
screw and torque screwdriver.
Select the installation surface and mark the drilling position. Keep the
Step 2
Logger3000 a certain distance from the surrounding materials.
Rack
Logger
482
465
12
