User Guide | Intelligent Purging System (IPS 8) for Ammonia - Technical data, installation and use
Electrical wiring
(continued)
24V DC
0V DC

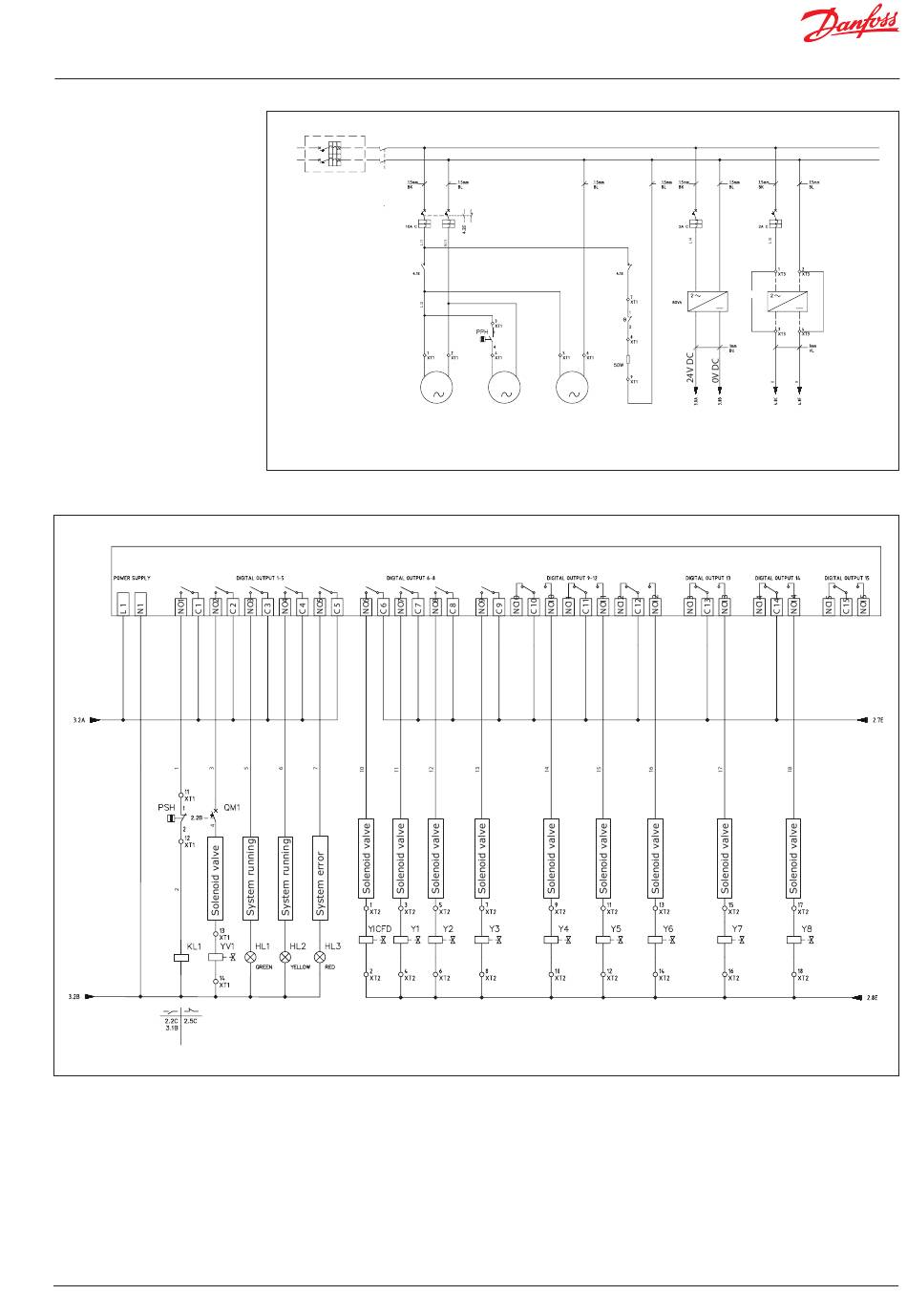

Fig. 18 Controller MCX15B Inputs and Outputs
© Danfoss | DCS (ms) | 2020.01
230V AC
QS1
QM1
KL1
M1
1
Compressor
*When using GD2 24V DC, remove 1-2 and 3-4 bridges between the terminals and connect power supply
Fig. 17 Power Supply
MCX15B OUTPUT
KL1
L/3
TR
Press.
Switch
RC
M2 VR1
1 1
Condenser Extraction Crankcase
Fan air fan heater
QM2 QM3
GD1 GD2
Power supply Power supply
MCX15B Solenoid valves*
BC306932151284en-000201 | 15
L
N
8
9
