Electrical wiring
14 | BC306932151284en-000201
The internal wiring of the purger is done at the
factory. Only the electrical wiring for the main
power supply, the purge point solenoids and
optional bus communication needs wiring on site.
WARNING
Electrical
hazards.
Authorized
personnel only.

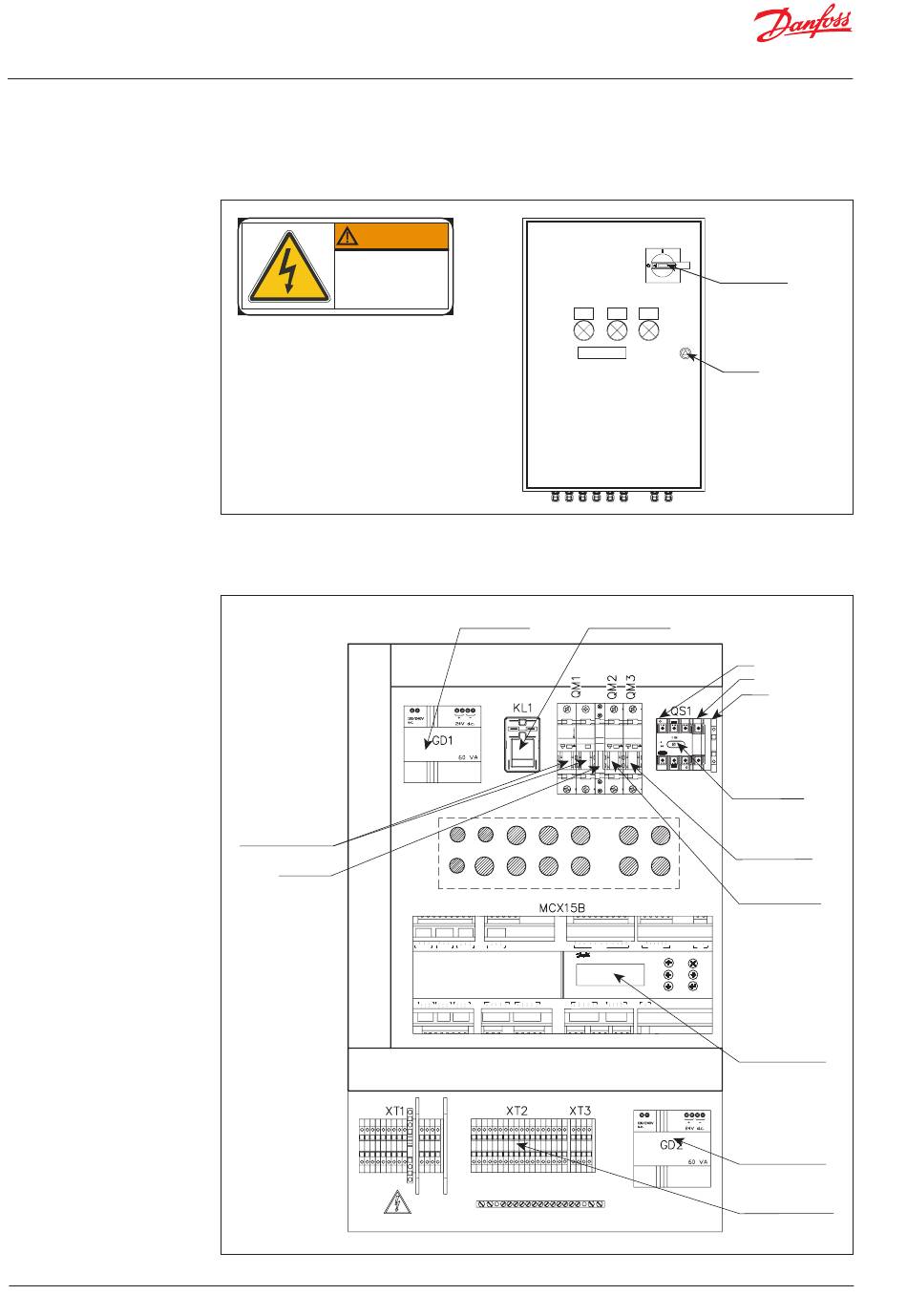

Fig. 15 Controller box external
Controller box cover can only be opened at key unlock and with the main switch off.
Note: Authorized personel only
Compressor/condenser
fan On/Off
Purge valve
Fig. 16 Controller box internal
It is highly recommended that all external cables
coming from the IPS 8 to the power supply and
to all purge point solenoids are protected by
metallic pipes.
STANDBY
24V Converter
ANALOG OUTPUT 5-6
DIGITAL INPUT 1
DIGITAL OUTPUT 14
DIGITAL OUTPUT 15
DIGITAL INPUT 2
DIGITAL INPUT 3
DIGITAL INPUT 4
DIGITAL INPUT 5-8
DIGITAL INPUT 9-12
DIGITAL INPUT 13-16
ON/OFF Switch
RUN
ERROR
PURGING
Key Lock
Compressor relay
Main Power
230V 50 Hz
L
N
Earth
Main Switch
Solenoid valves
On/Off
MCX15B Controller
On/Off
ANALOG INPIT 1-6
ANALOG INPUT 7-10
POWER
MCX
DIGITAL INPUT 17-18
CAN RJ
MCX15B Controller
Optional 24V DC
power supply for (8)
purge solenoids
(not included)
Up to 8 purge valves
