Sunricher SR-2300TR-G3-RGBW-US User Manual

DT8 DALI RGBW Touch Controller
Important: Read All Instructions Prior to Installation

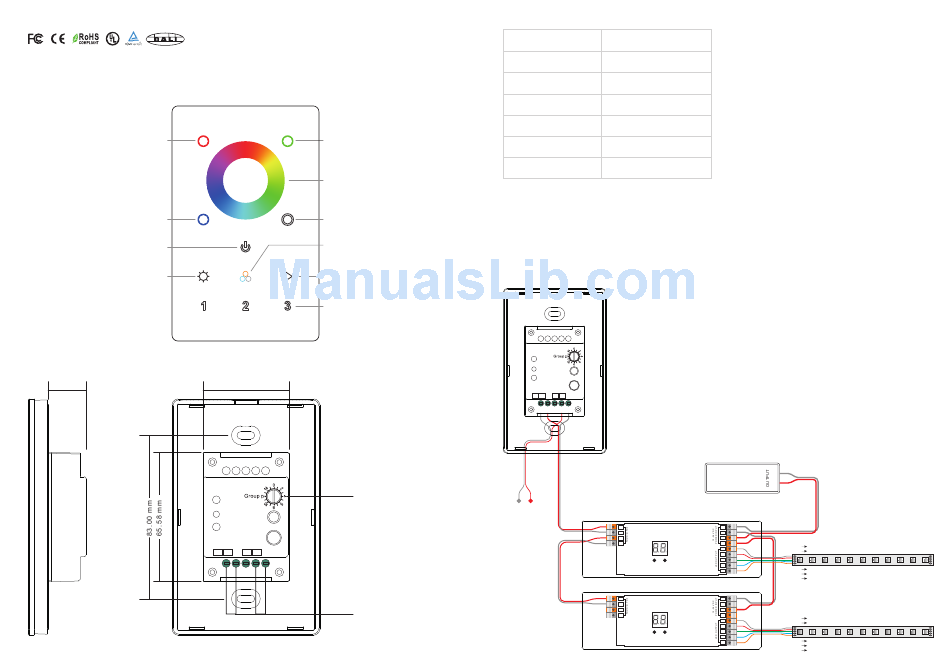

Function introduction

Red channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
Blue channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
ON/OFF button
Brightness button, press and hold
down to increase/decrease light
intensity
19.4 mm
Green channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
RGB color wheel
White channel: click to turn ON/OFF,
press and hold down to
increase/decrease light intensity
Click to get CW, NW, WW
mixed by RGB
Play/Pause button, click to
play/pause running effects, press
and hold down to speed up/down
Group number, click to select,
press and hold down to turn
ON/OFF
Front side
43.58 mm
Rotary Switch for Assigning
Group (Total 16 Groups)
DALI Wall Panel
Controller
D1 D1 D2 D2
DALI signal output
Back side
Product Data
09.230WU8.04159
Output
Power Supply
Operation Current
Operating temperature
Relative humidity
Dimensions
Waterproof grade
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Wiring diagram

DALI Wall Panel
Controller
D1 D1 D2 D2
D2 D1
DALI BUS
• Touch sensitive.
DALI signal
• Glass interface(white & black).
• Comply to DALI standard protocol IEC 62386-102, IEC
Supply By DALI Bus
62386-207, IEC 62386-209 and in compliance with DALI
4mA
products from other international incorporation
• Enable to control 3 DALI Groups.
0-40°C
• Enable to set start DALI group number (0-15) by rotary
switch on the back.
8% to 80%
• Support DT8 devices
75x120x29.1mm
• Color adjustment according to DALI specifications of
Device Type 8, Color Type RGBWAF.
Ip20
• Each DT8 device is controlled via a single DALI address
• Built-in 8 Color Sequences
V-
12V/24V/36V
CV PSU
V+
D1 V-
DT8 DALI RGBW Dimmer
D2 V-
D1 V+
D2 V+
+
R-
G-
0-6 0-9
B-
W-
D1 V-
DT8 DALI RGBW Dimmer
D2 V-
D1 V+
D2 V+
+
R-
G-
0-6 0-9
B-
W-
V+ V+
R- R- Connect with RGBW LED Strip
G- G-
B- B-
W- W-
V+ V+
R- R- Connect with RGBW LED Strip
G- G-
B- B-
W- W-
