ekwb EK-UNI RAD Installation And Mounting Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

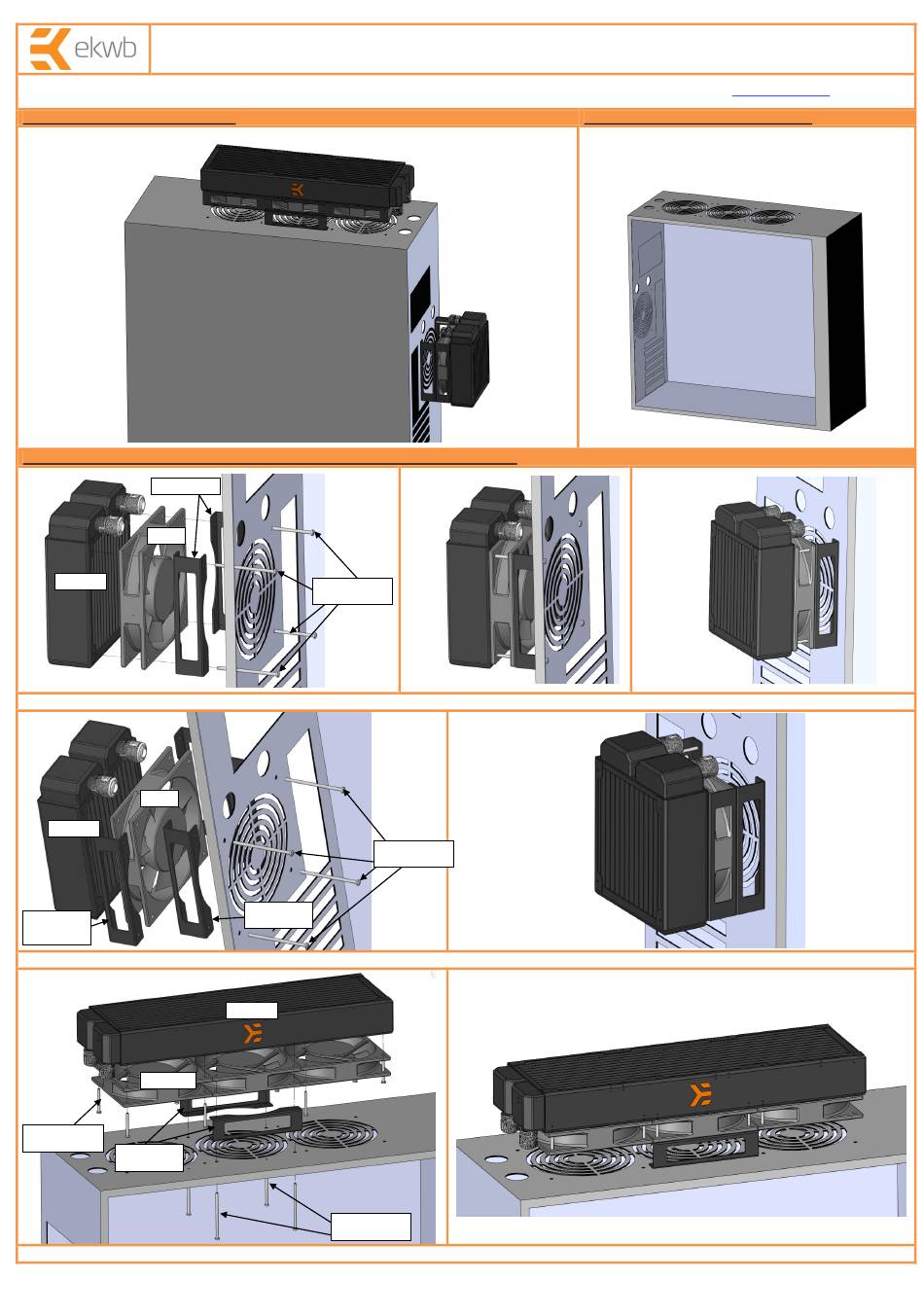

STEP 1: GENERAL INFORMATION. Sample picture of mounted radiator with EK-UNI RAD Holder
STEP 2 cont.: Possible mounting positions of radiator with EK-UNI RAD Holders
RAD Holders
FAN
Radiator
Pictures 1, 2,3: A single 120mm radiator mounted on the back of the case with single 120 UNI RAD Holder as a spacer.
FAN
Radiator
RAD Holders
as FAN mask
Pictures 4 & 5: A single 120mm radiator mounted on the back of the case with single 120 UNI RAD Holder as a spacer and as a mask for FAN.
3 × FANS
M3×30mm
screws
RAD Holders
as spacers
Pictures 6 and 7: A triple 360 radiator mounted on the top of the case with single 120 UNI RAD Holder as a spacer.
Installation and mounting manual for EK-UNI RAD Holders
4 × M3×60mm
screws
RAD Holders
as spacers
Radiator
4 × M3×60mm
screws
4 × M3×60mm
screws
www.ekwaterblocks.com
STEP 2: PREPARING YOUR PC CASE.
1. Open side panel of your computer case.
Remove the fan or fans if there are any installed on the inside on
the case.
Released on 27
for updates. Before
th
of December, 2009.
