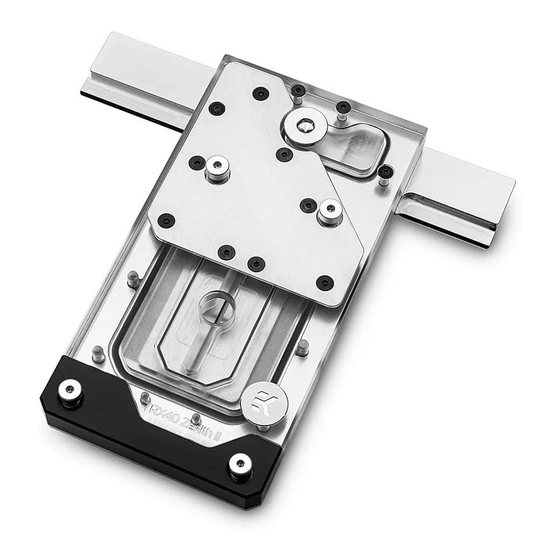

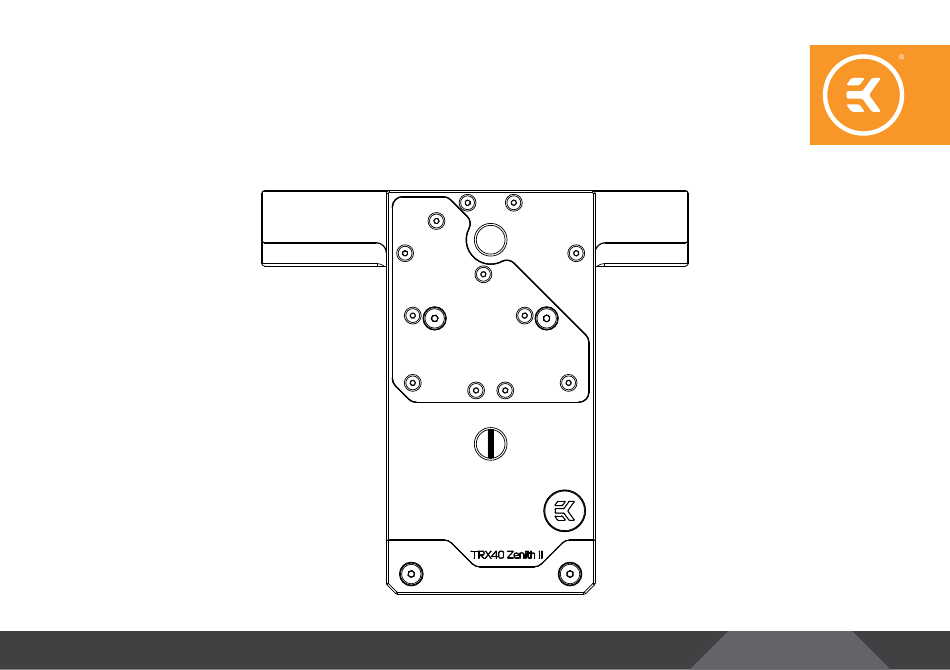

- Page 1 EK-Quantum Momentum ROG Zenith II Extreme MONOBLOCK USER GUIDE...
- Page 2 The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Before the installation of this product, please read important notice, disclosure, and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR MOTHERBOARD REMOVING THE STOCK COOLER APPLYING THE THERMAL COMPOUND CUTTING THERMAL PADS PLACING THE THERMAL PADS PLACING THE BLOCK ON THE MOTHERBOARD ATTACHING THE BLOCK TO THE MOTHERBOARD PLACING THE REPLACEMENT HEATSINK ON THE MOTHERBOARD CONNECTING THE D-RGB LED STRIP REQUIRED TOOLS SUPPORT AND SERVICE... -
Page 4: Preparing Your Motherboard
PREPARING YOUR MOTHERBOARD REMOVING THE STOCK COOLER STEP 1 Remove all encircled screws. There are nine (9) screws that need to be removed (see sample image). Save the standoffs and backplate screws for later use. There is no need to remove the factory backplate. STEP 1 - 4 -... - Page 5 STEP 2 The additional four (4) screws need to be removed in order to disconnect the I/O cover screen. After finishing the installation process, the cover can be mounted back onto the motherboard. Under marked part, carefully disconnect the I/O screen connectors. STEP 2 - 5 -...
-
Page 6: Applying The Thermal Compound
APPLYING THE THERMAL COMPOUND Apply the enclosed thermal compound on the CPU heat spreader (as shown in the image). There is no need to cover the whole IHS. Applying too much thermal grease will have a negative impact on cooling performance! CUTTING THERMAL PADS Your block comes with thermal pads that need to be trimmed in order Thermal Pad F –... -
Page 7: Placing The Thermal Pads
Thermal Pad F 1.5mm PLACING THE BLOCK ON THE MOTHERBOARD Place the EK-Quantum Momentum ROG Zenith II Extreme water block to the motherboard or vice versa (as shown in the image). Make sure that the mounting holes are aligned. - 7 -... -
Page 8: Attaching The Block To The Motherboard
ATTACHING THE BLOCK TO THE MOTHERBOARD STEP 1 Prior to fastening the screws, please make sure the mounting holes on the motherboard’s circuit board are aligned with the water block. STEP 2 (CPU) Carefully tighten all the marked screws using a 2.5mm Allen Key. Do not apply excessive force. -
Page 9: Placing The Replacement Heatsink On The Motherboard
Replacement Heatsink Take off four (4) standoffs from the original heatsink using the EK-Loop Wrench and attach them to the replacement heatsink that comes with the EK-Quantum Momentum ROG Zenith II Extreme monoblock. STEP 1 STEP 2 Before placing the replacement heatsink on the motherboard, attach the I/O cover screen to the replacement heatsink and secure it with five (5) factory-provided I/O cover screws. - Page 10 STEP 4 Attach the replacement heatsink using the factory I/O cover Heatsink Screws screws and a Phillips head screwdriver. Also, pay attention not to use too much force while pressing the replacement heatsink down to the motherboard. Factory Backplate STEP 4 STEP 5 We recommend you use the EK fittings.
-
Page 11: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector from Monoblock D-RGB LED light to the DRGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, empty, Ground. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard. -
Page 12: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
