Installation
After setting jumpers W1 and W2, the XVME-956/411 is ready for installation. It is
necessary to install the module on a PC/104 site to perform the software setup. Fol-
low the steps below to install your module:
1. Plug in the Boot ROM chip in U12 (if needed).
2. Install the Ethernet module on the XVME-956 carrier card. Be sure to install the
IRQ jumper on the XVME-956 corresponding to the IRQ line the Ethernet mod-
ule will use.
5-3

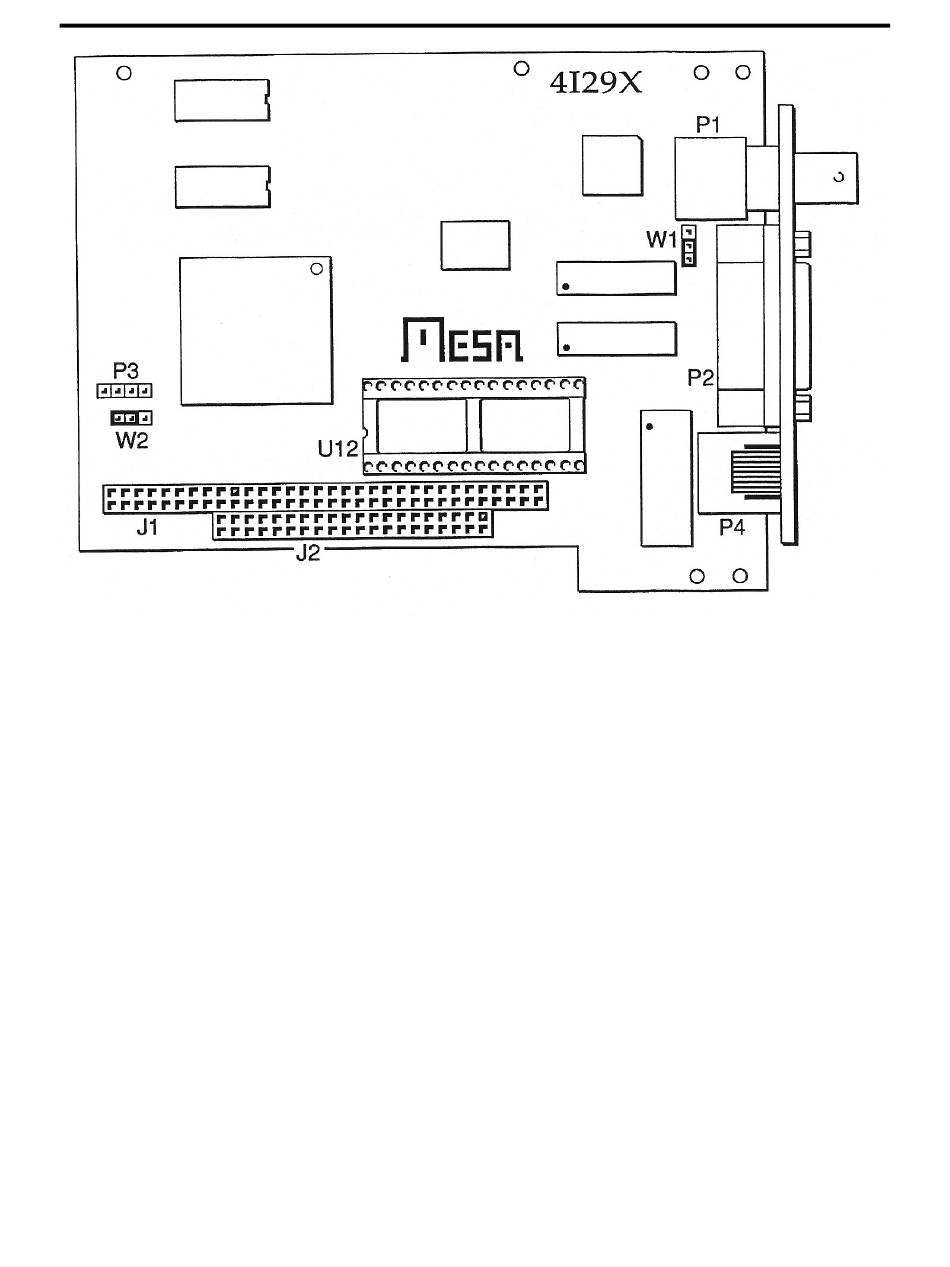

Figure 5-1. Jumper Locations
Chapter 5 - 16-Bit Ethernet Installation
