XVME-976 Adapter Module
PC/104 Module Installation
The following types of PC/104 expansion modules can be mounted to the
XVME-976:
•
Xycom's Type A (PC/104) expansion modules
•
Generic Type B (PC/104) expansion modules
•
PMC expansion modules
The following sections explain the installation procedures for mounting
PC/104-compatible (Types A and B) expansion modules onto an XVME-976
adapter module.

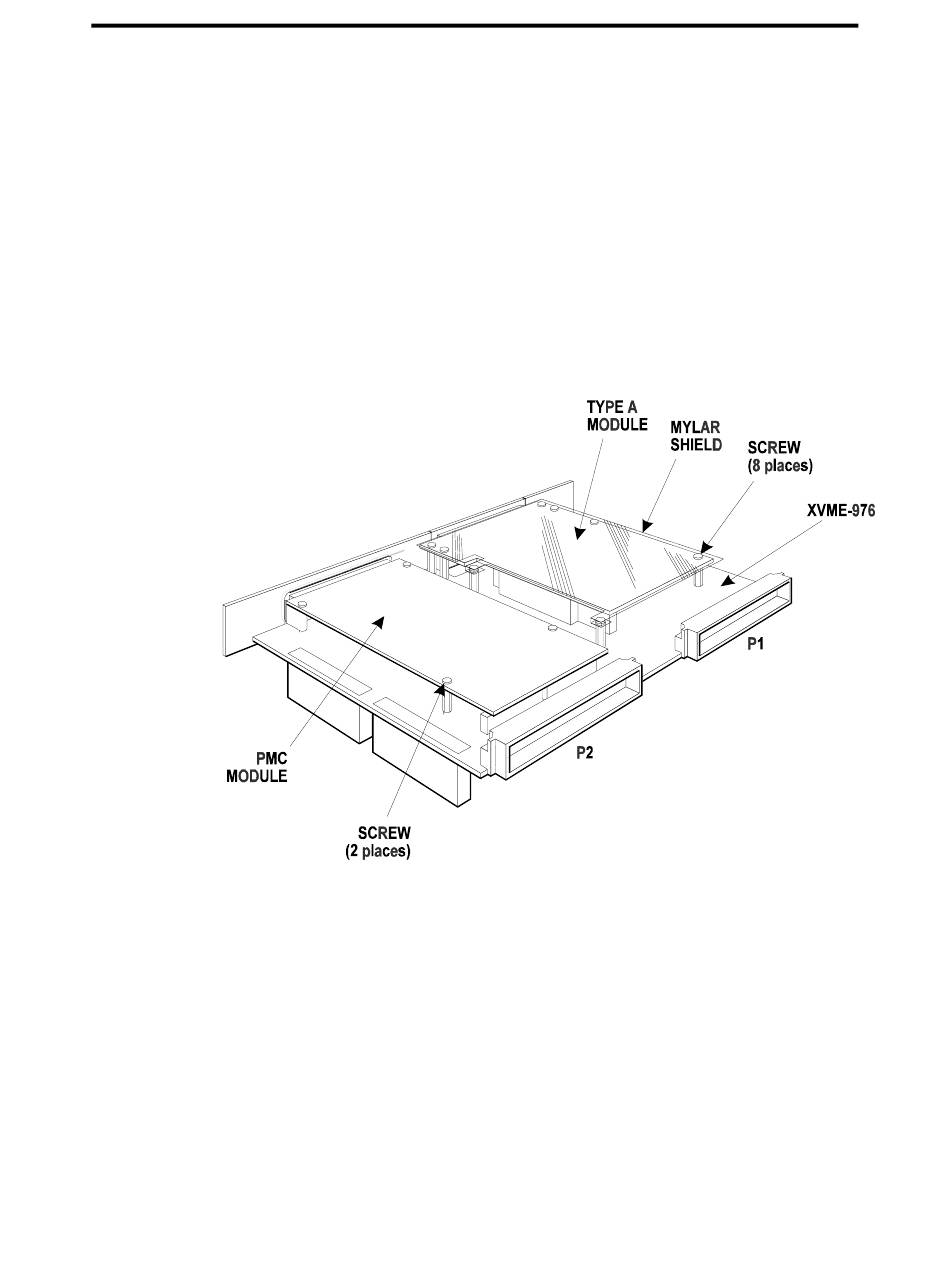

Figure 1-3. XVME-976 with PMC and Type A (4.010 x 5.091") Modules
1-6
