Machine description – quick overview

Rear view

4.2 Rear view
Item Symbol Description
1
2
3
4
5
6
7
8
16
0
Connection socket, 7-pole
Connection for peripheral devices with digital interface
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
Cooling air outlet
Cooling air inlet
Connection socket, "+" welding current
• MIG/MAG welding:
"-" welding current connection socket
• MIG/MAG cored wire welding:
Stirrup
Intermediate tube package strain relief
Mains connection cable

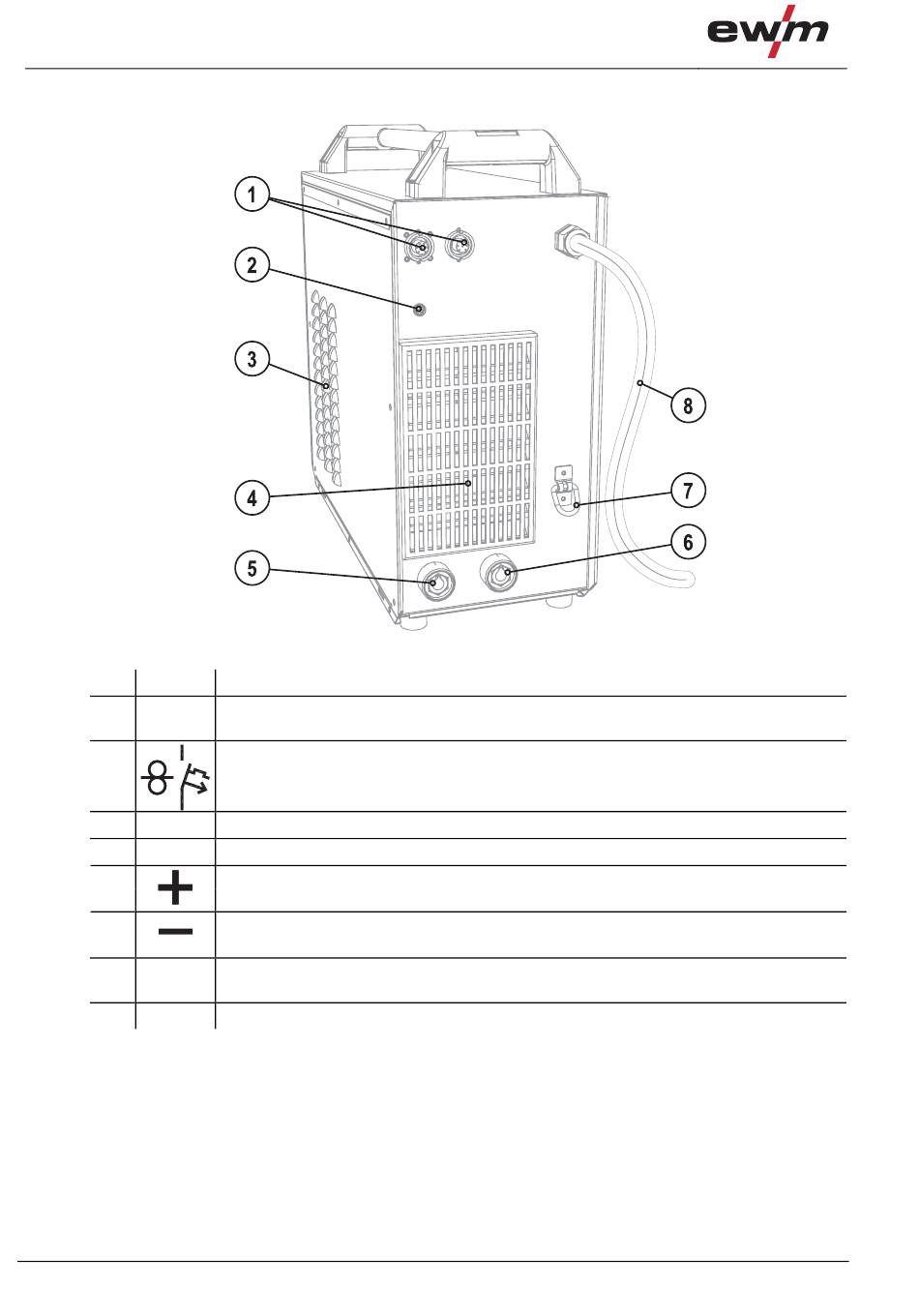

Figure 4-2
Welding current to central connection/torch
Welding current to central connection/torch
