Design and function

Connecting the intermediate tube package to the power source

5.6 Connecting the intermediate tube package to the power source
5.6.1

Intermediate tube package strain relief

Missing or incorrectly fitted strain relief!
Connection sockets or connection plugs on the machine, or the intermediate tube
package, may be damaged if the strain relief is missing or incorrectly fitted. The strain
relief takes the strain from cables, plugs and sockets.
• Check the strain relief function by pulling in all directions. Cables and hoses must have
sufficient play when the relief cord is fully stretched!
Item Symbol Description
1
2
3

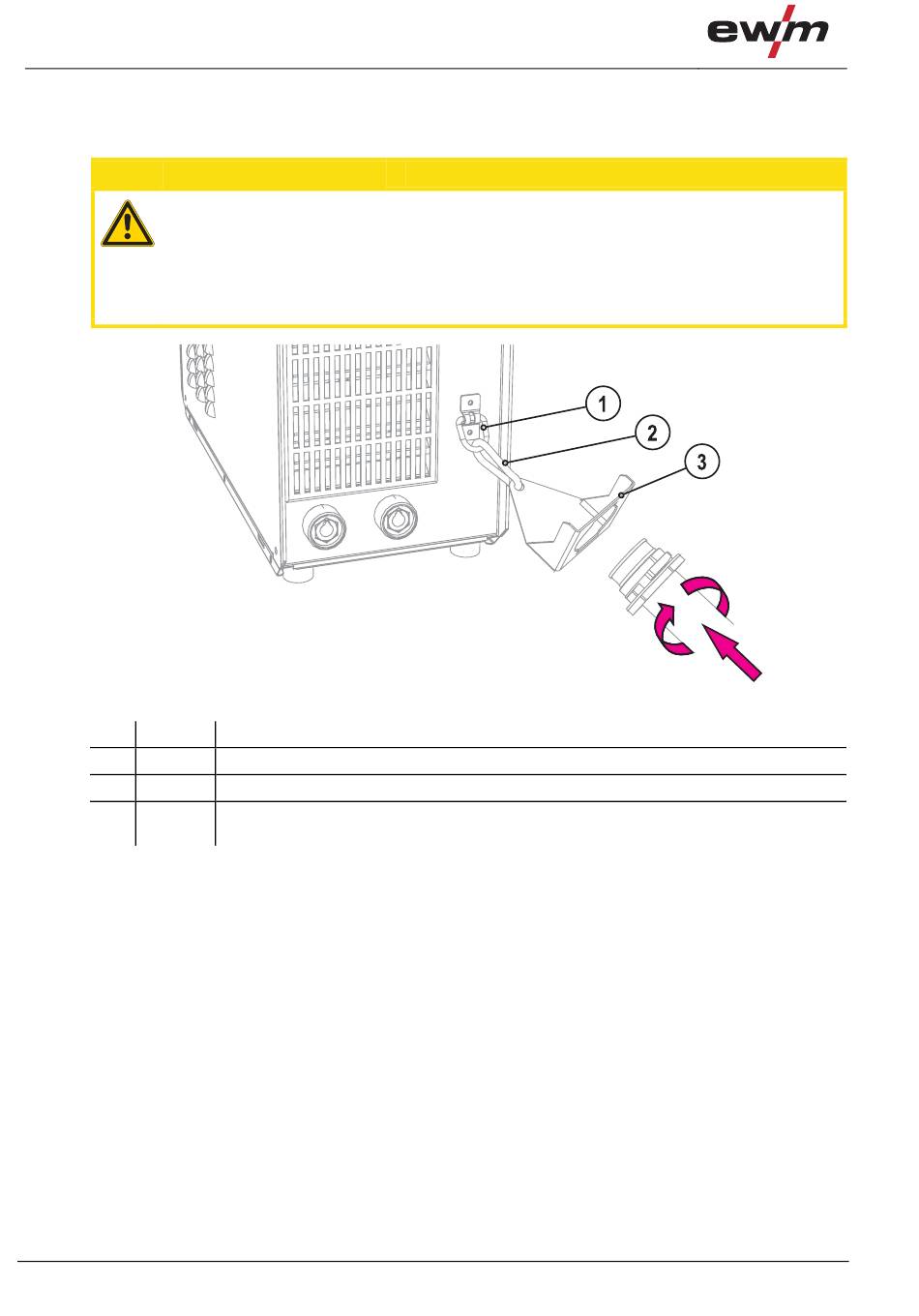

• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
20
0
Intermediate tube package strain relief
Snap hooks
Stirrup
Intermediate tube package strain relief
CAUTION
Figure 5-2
099-008717-EW501
24.03.2011
